Business Type: Manufacturer
Main Products:water pumpself-priming pumpautomatic pumpsurface pumpperipheral pumpcentrifugal pumpgardon pumpQB60 pumpbooster pumppressure pump
ID:20111237886
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:100.00 Piece(s)
Water PumpQB60
L/CT/T

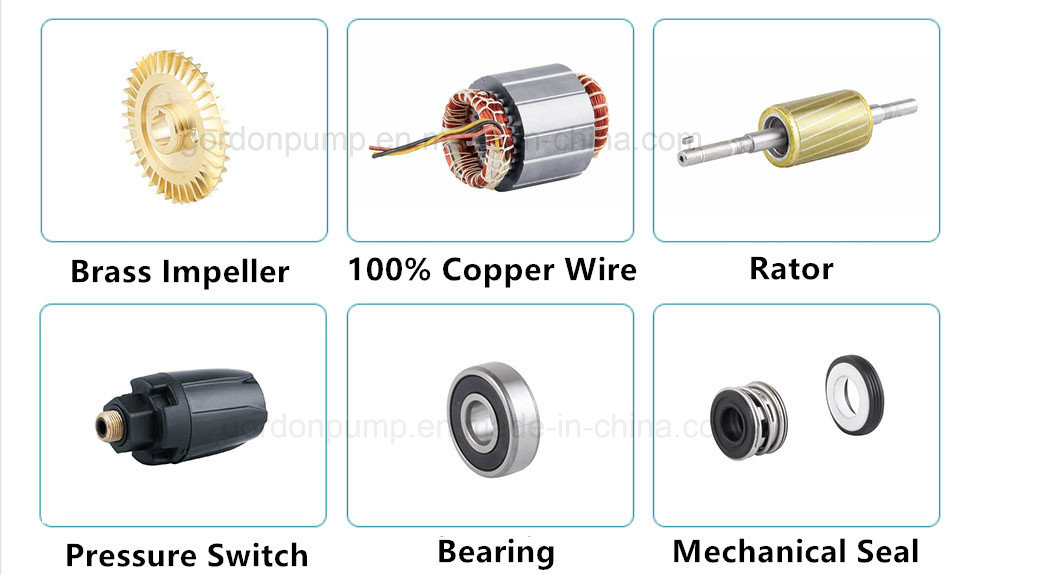

Pump
>> Pump Body: cast iron & support under special anti-rust treatment
>> Impeller: stainless steel impeller, brass impeller, ppo impeller
>> Mechnical Seal: carbon / ceramic / Stainless Steel
Motor
>> Bulit-in thermal protector for single phase motor
>> Motor with copper winding
>> Motor Housing: Steel-plate, Aluminum alloy
>> C&U bearing
>> AISI 304 shaft or 45# carbon steel
Working Range
>> Liquid: clean liquids without suspended solids, non-aggressive
>> Liquid temperature: -10oC and +100oC
>> Ambient temperature up to +40oC
>> Max. working pressure 10 bar
>> Continous service S1
>> Insulation: B
>> Protection: IP44
Application
>> Household Water Supply
>> Water Supply System
>> Cooling System
>> Boost System

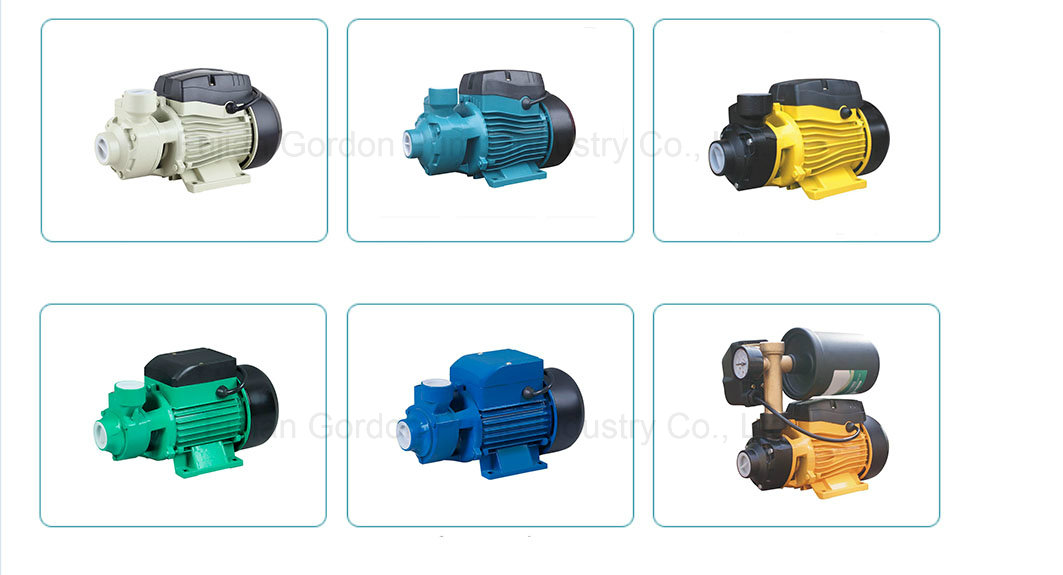

QB-L SERIES WATER PUMPS
| Model | HP | W | Current (A) | Capacitor (uf) | H.Max (M) | Q.Max (L/min) | Pipe Size |
| PKM60 | 0.5 | 370 | 1.8 | 10 | 38 | 35 | 1"X1" |
| PKM70 | 0.75 | 550 | 3.5 | 15 | 50 | 45 | 1"X1" |
| PKM80 | 1 | 750 | 4 | 20 | 60 | 50 | 1"X1" |
| QB-60L | 0.5 | 370 | 1.8 | 0.1 | 38 | 45 | 1"X1" |
| QB-70L | 0.75 | 550 | 3.5 | 15 | 50 | 50 | 1"X1" |
| QB-80L | 1 | 750 | 4 | 20 | 60 | 35 | 1"X1" |
| DB-125 | 0.5 | 370 | 1.8 | 10 | 38 | 35 | 1"X1" |
| KF-1 | 0.5 | 370 | 1.8 | 10 | 38 | 35 | 1"X1" |
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
