Jamatic High-quality automation self-cleaning disc filter with a special sign
Specification & Service information
| Place of Origin: | Beijing, China |
| Filtration precesion: | 5u,10u,20u, 50u,100u,130u, 200u |
| Body of filter unit： | Glass Fiber Reinforced PP/PA/Noyrl |
| Disc : | PP |
| Piping: | HDPE/SS304 |
| Sealing ring : | NBR/EPDE |
| Feedwater temperature: | 4~50°C |
| pH: | 4~13 |
| Operation pressure: | 2bar-8 bar |
| Backwash mode: | Internal source backwash (with filtered water) |
| Backwash pressure: | 1.5 bar- 6 bar |
| Backwash time: | 0~240 seconds |
| Backwash water consumption (%): | <0.5% of total filtered water |
| Min. backwash flow rate per filter unit | 2.0 L/sec (32gpm) |
| After-sales Service Provided: | 1-year warranty & online support |
| After Warranty Service: | Online support |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Oversea Showroom & local service Location: | Egypt, the United States, Mexico, Russia, Romania, Malaysia, Vietnam |
Supply Ability 10000 Set/Sets per Month
Technical description :
The core technique of the JYP filter adopts the discs filtration principle. Through deeply pressed grooved plastic discs to achieve a combination of surface filtration and depth filtration. There are thin grooves on the surface of the discs, the grooves in opposite direction between discs making many crossed points Therefore the crossed points form many chambers and irregular channels blocking suspended particles, up to 85%-90%.

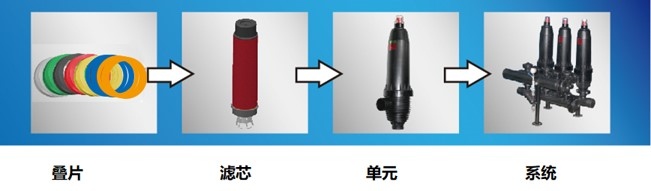

Disc Filter Element unit System

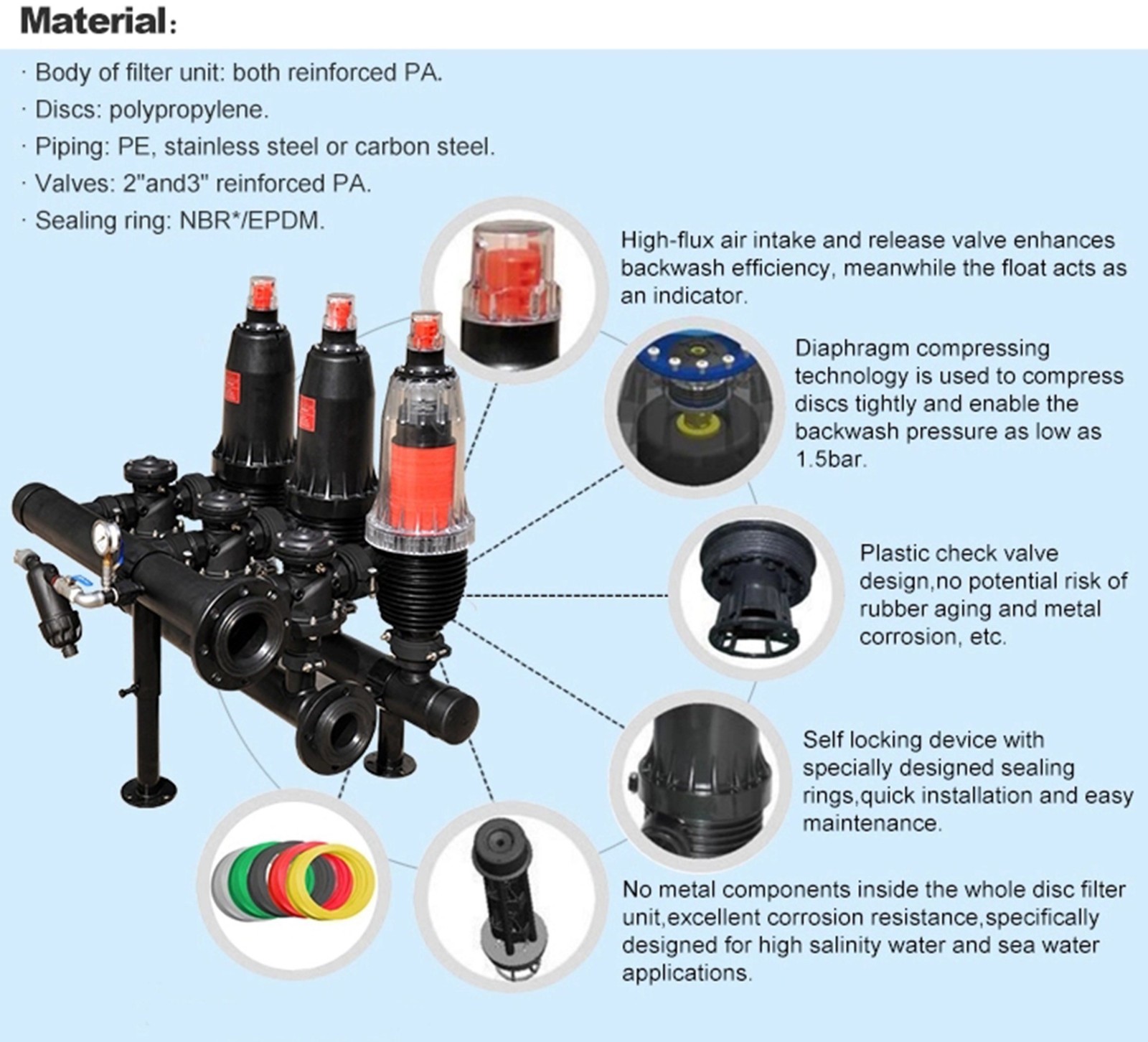

Main Features
1) Low Pressure Required for Backwash, minimum backwash pressure 1.5 bar (22psi), save energy.
2) No Spring, a patent technology, and no Metal Material, no direct contact between water and metal, enhance corrosion resistance feature, and lack of energy required for backwash.
3) Air Intake & Release Technology, which facilitates backwash efficiency and water saving.
4) Air Buoyancy Check Valve Technology, no metal or rubber contact with water, avoid corrosion or aging.
5) Hydrocyclonic Technology.
6) Quick-lock and Sealing Technology, quick and easy maintenance.
7) It is a robust design and fully automatic.

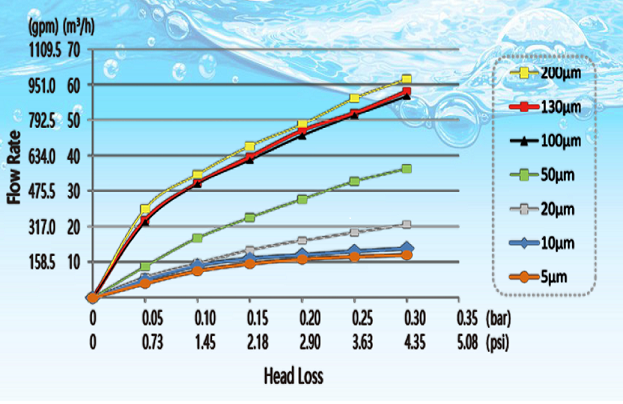

3 Inches Unit performance:

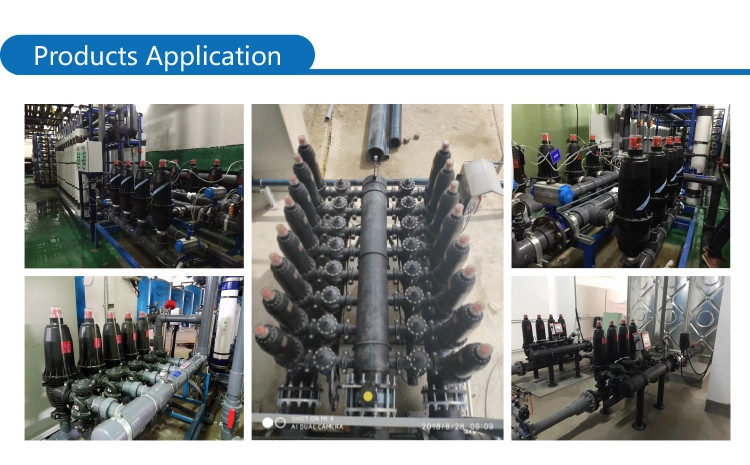

Disc filters are used for the water pretreatment in industrial application:
1.desalination/seawater desalination
2.textile industry
3.iron and steel industry/metallurgy
4.pharmaceutical industry/medicine industry
5.plastic industry
6.building materials,
7.food industry
8.Heating, Ventilation and Air Conditioning/HVAC systems in industrial buildings
9.papermaking,
10.wastewater treatment,
11.sewage regeneration
12.municipal water supply
13. waterworks
14.large power plants
15.chemical industry
