ID:20111338205
Category: Tools,Hardware & Instruments General Hardware
MOQ:3500.00 Roll(s)
Barbed WireGalvanized Barbed WireBarbed Wire FenceBWG14x14 Barbed WirePVC barbed WireRazor Barbed WireRazor WireGI barbed WireHot dipped Barbed WireBarbed Wire for Airport
L/CT/TD/PWestern UnionPaypalMoney GramOthers
GI Barbed Wire
Wire Guage: BWG4 ~ BWG18
Wire Diameter: 6mm ~ 1.2mm
Tensile Strength:
1) soft:380-550N/mm2
2) stronger :1200N/mm2

Material:Hot-dipped GI wire, Elector GI wire,SS wire, PVC coated wire,High steel wire
Barbed wire weave types:
1) single strand barbed wire
2) double twisted barbed wire

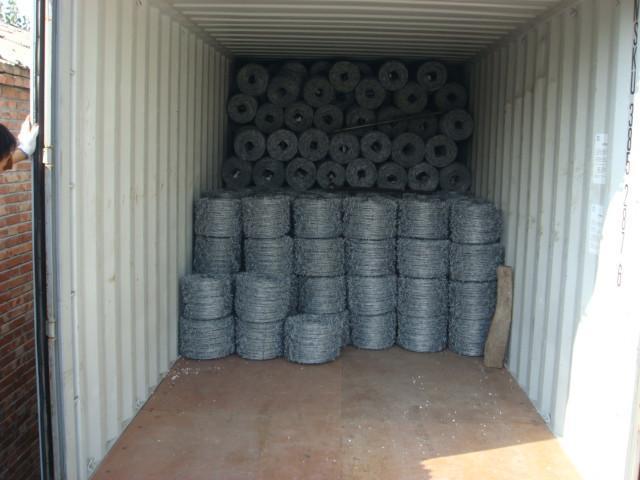

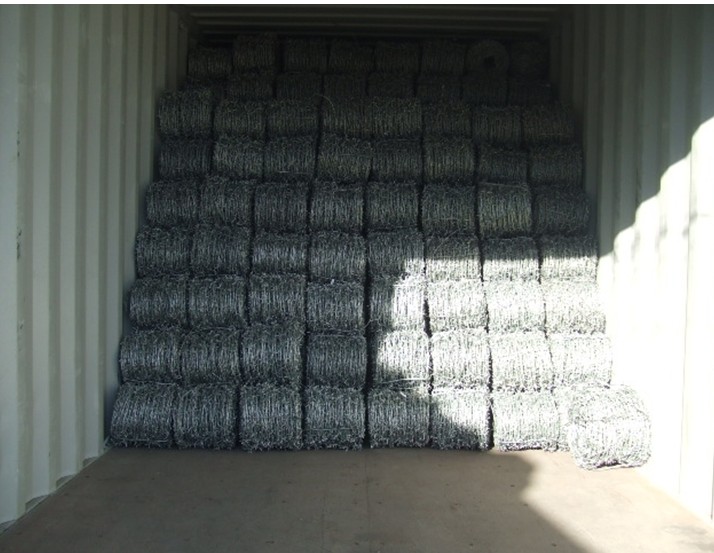

Package:
1)in nude
2)packing with plastic
3)Iron/Wood pallet
4)As customer`s require
Applications:protect grass boundary, railway, highway, millitary border, prisions, state facilities.

Barbed Wire is Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private building.

Gauge of | Approximate Length per Kilo in Meter | |||
Barbs Spacing 3" | Barbs Spacing 4" | Barbs Spacing 5" | Barbs Spacing 6" | |
12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
14x16 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |



Business Type:Manufacturer
