Automatic carton box stitching gluing machine

This machine is fully computer controlled and automatic order adjustment, easy to operate, and can store 1000 nailing orders;

2. The bottomless case with cover can also be nailed (to be specified when ordering);

3. 3-5 minutes to adjust the size, simple and fast;

4. The power of nail head is servo motor, and the mechanical speed is 800 nails / min;

5. The paper feeding section adopts the vacuum suction leading edge belt to feed paper to ensure that the carton is not skewed; the front edge belt of the paper feeding machine can adjust the belt height independently to increase the service life;

6. When feeding paper, there is a side beating device, which can make paper feeding orderly and smoothly;

7. The paper feeding speed of the paper feeding section is automatically controlled by PLC to ensure that the carton can not be nailed out or damaged;

8. The paper feeding motor is controlled by servo motor to ensure stable and accurate nail distance;

9. The machine is designed with box shaping function to ensure that the scissors mouth will not appear when nailing the box, which is neat and not skew; the machine can ensure that the front and rear scissors opening will not exceed 2 mm;

10. This machine can nail double nail, single nail, reinforcing nail, double head tail nail and single head and tail nail at one time;

11. The computer screen is used for operation and fault description is displayed;

12. This machine can nail three or five layers of cartons (seven layers need to be declared in advance when ordering);

13. Finally, the machine has automatic counting, stacking and quantitative output.

14. The bundling part of the machine is optional.

15. When the machine is in normal operation, it will stop automatically.

16. This machine can be used for three purposes, such as gluing, nailing and simultaneous nailing

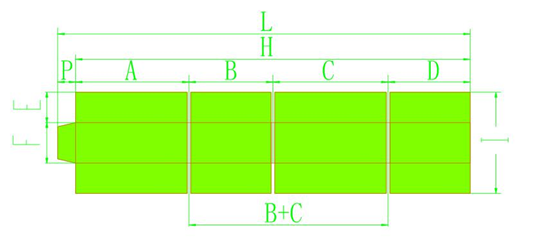

Main parameter
