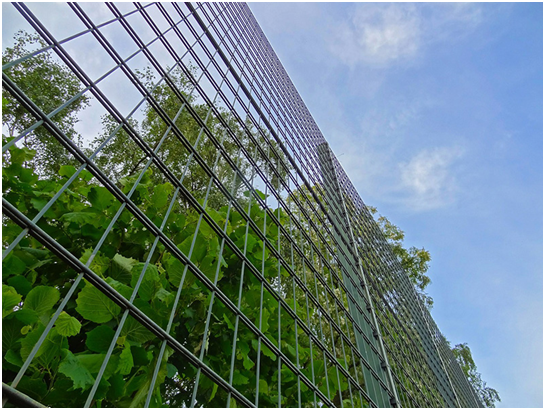

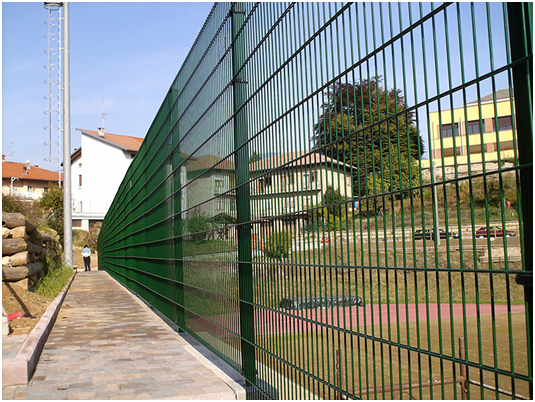

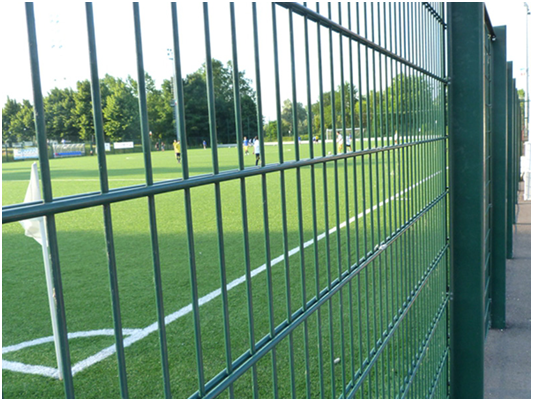

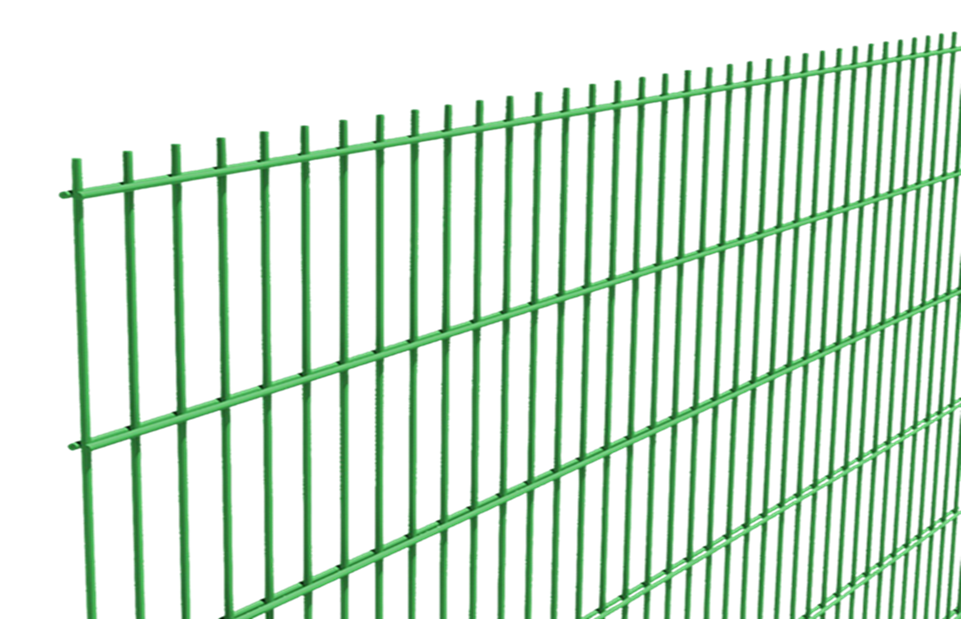

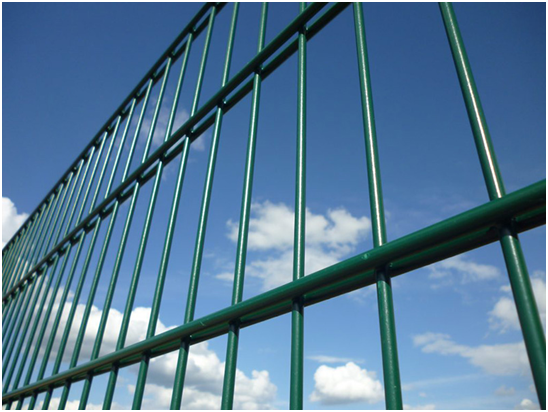

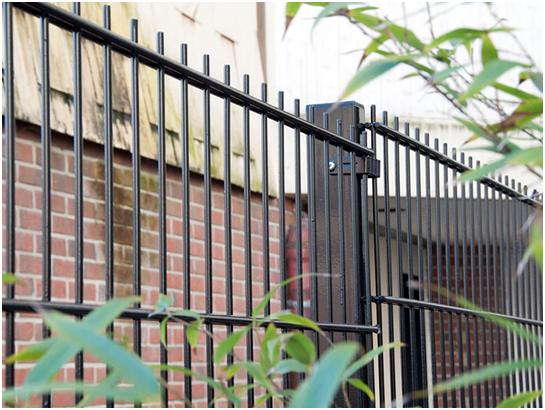

Double wire mesh
1. Instruction
Double wire fencehas the features of grid structure, beauty and practical, landscaping. In addition, Because of the double wire fencing features of easy transportation
and installing without the limitations of special terrain. It is adjust to mountain, hillside and winding zones.
|
|
2.Specifications
Height× Width Panel mm | Mesh Size mm | Wire Diameter mm | Post of Height mm | ||
630×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1100 |
830×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1300 |
1030×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1500 |
1230×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1700 |
1430×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 1900 |
1630×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 2100 |
1830×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 2400 |
2030×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 2600 |
2230×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 2800 |
2430×2500 | 50×200 | 8×2 + 6 | 6×2 + 5 | 6×2 + 4 | 3000 |
Double wire fence has attractive appearance, various colors, it not only has the fencing function but also has the beautify effect.

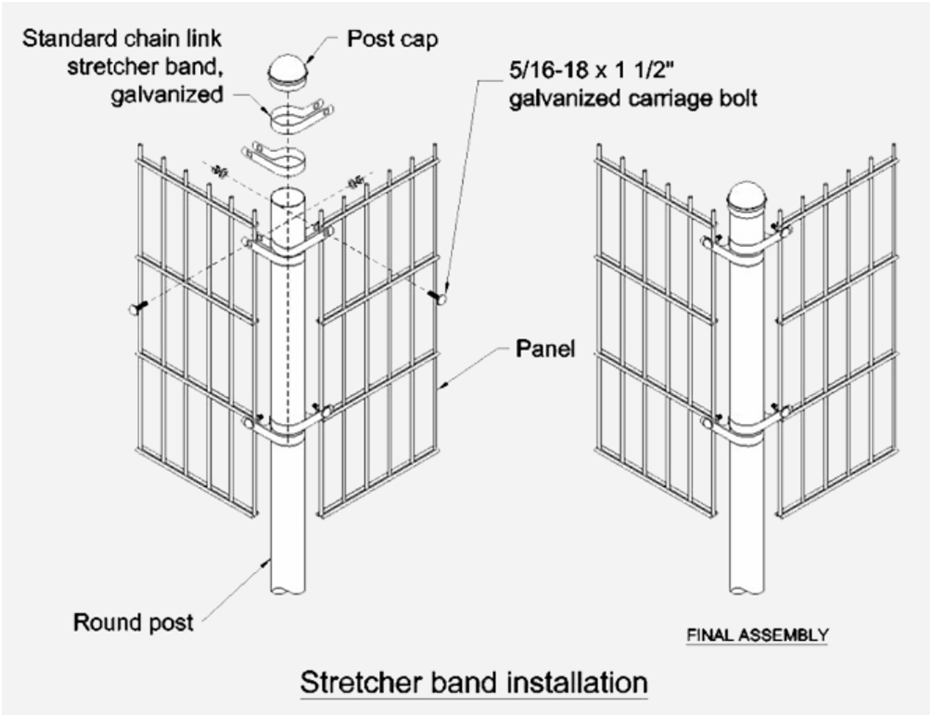

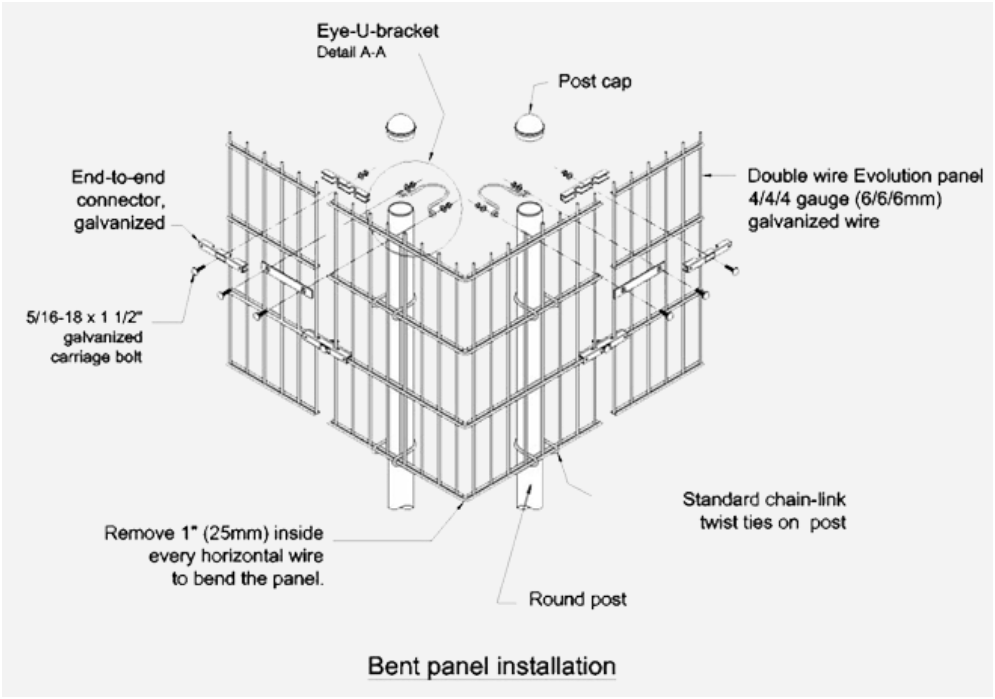

3. Installation
1)It do not need any fixed parts.It is installed in a way of sequential assembly,which saves lots of time and improves efficiency.
2)Each part with superior quality,and 10-year anti-corrosion to make the fence go well.

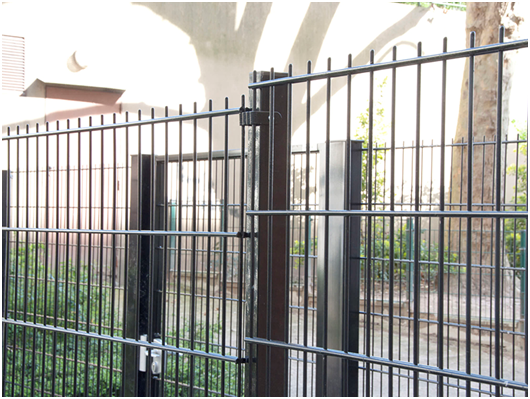

3)It is a perfect system to work with gate in a unique appearence.
4)Professional install drawing are available for your easy unders
4.Features
Double wire fencing has simple structure ,firm and durable,easy to difficult to fade , as professional fence is used in airports and military bases. While adding elbow, razor wire, barbed wire and other security accessories, it can protect the enhance sites further more.
|
|
5. Application
1) Construction reinforcement, the ground for the tunnels, bridges, highway, garden, floor, airport and wharf
2)Construction of wall body
3)Mobile fencing used in excursions on the riding trail
4) Buildings and factories, as animal enclosure and fence in agriculture
5) Horticulture industry as tree guards, plant protection
|
|
