plastic pellet making machine
L/CT/T
Recycling Material of Plastic Recycling Pelletizing Machine:
| Material | PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS etc. |
| Shape | Film, Bag, Woven bag, Raffia,Bubble film, Foam, nonwoven fabric, Filament,sheet,chips |
| Type | Loose, Bundle, Roll, Scrap |
| Origin | Off cut, Washed film, In house waste, Regrind |

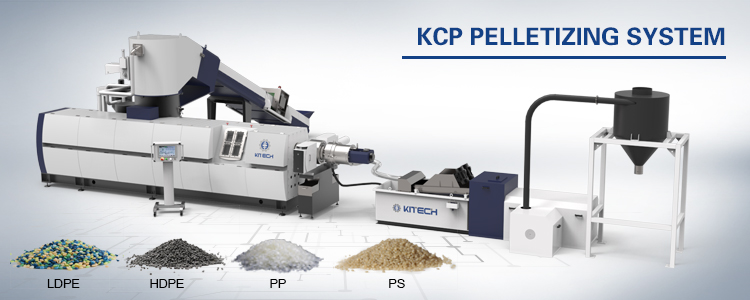

Basic data of Plastic Recycling Pelletizing Machine:
Machine Size | Date of Compactor | Data of Single Screw Extruder | Throughput Rate (kg/h) | |||
Efficiency Volume (Liter) | Motor Power (KW) | Diameter of screw (mm) | L/D | Motor Power (KW) | ||
KCP 80 | 300 | 37 | 80 | 36 | 45/55 | 160-220 |
KCP 100 | 500 | 55 | 100 | 36 | 90/110 | 300-380 |
KCP 120 | 800 | 90 | 120 | 36 | 132 | 450-480 |
KCP 140 | 1000 | 110 | 140 | 36 | 160/185 | 500-650 |
KCP 160 | 1200 | 132 | 160 | 34 | 220/250 | 800-1000 |
KCP 180 | 1400 | 315 | 180 | 34 | 315 | 1000-1200 |
Specifications of ACE pelletizer:

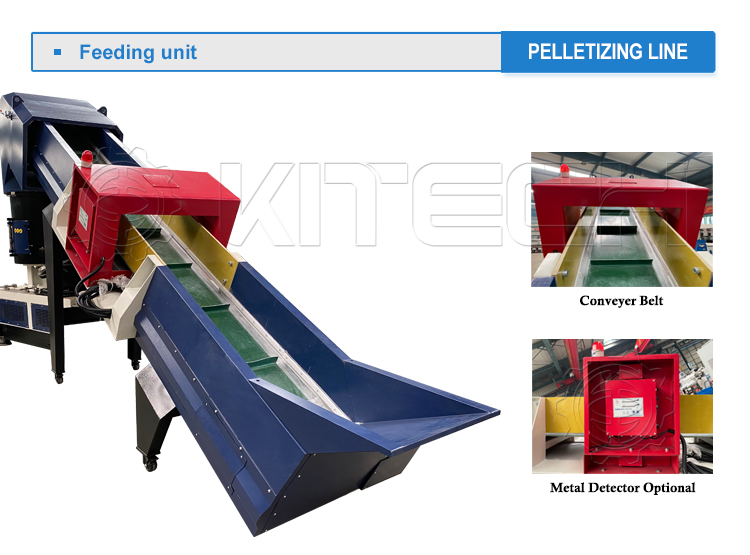

*Feeding materials into compacting room by conveyor automaticlly.
*Speed possible controlled by inverter
*Metal detector optional

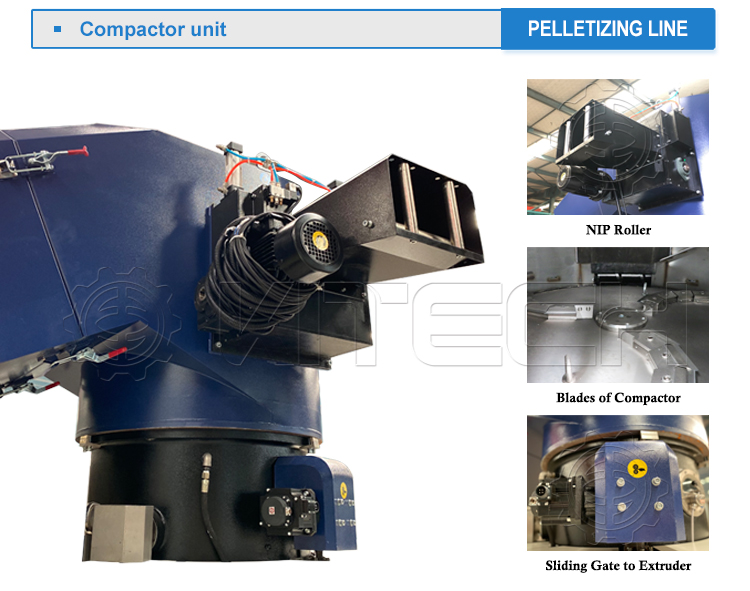

*Rotator and stationary blades are combined to cut up the materials,
*Crushes, dries and compacts the material in one step,
*Guide structure directs the material into extruder screw.

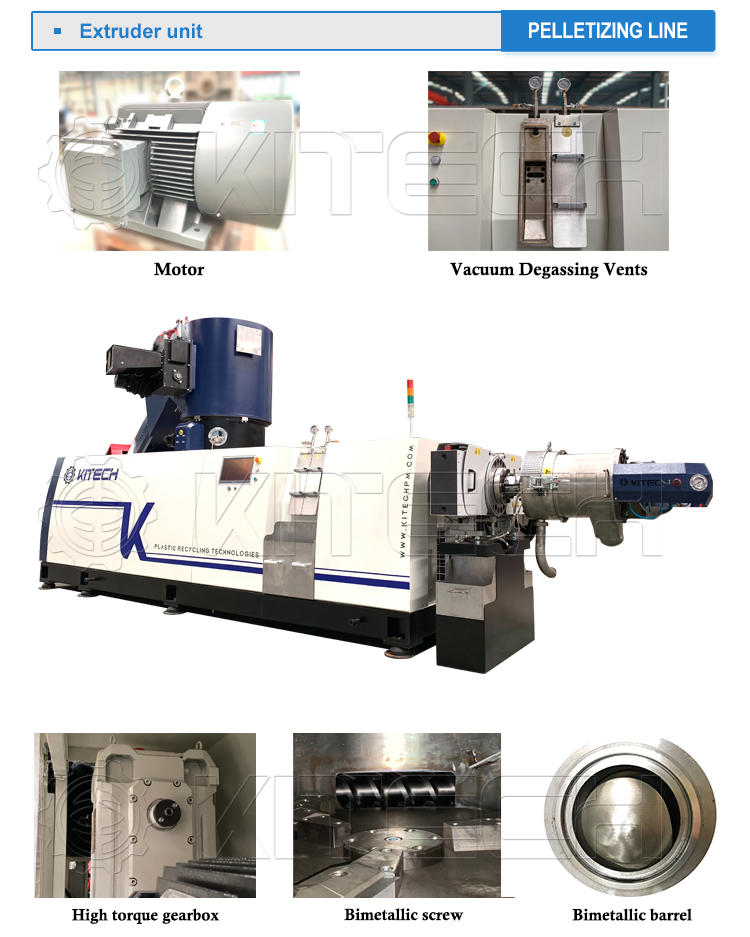

*Single Screw extruder melts the material,
*Double-zone vacuum degassing system,
*Self protective system,

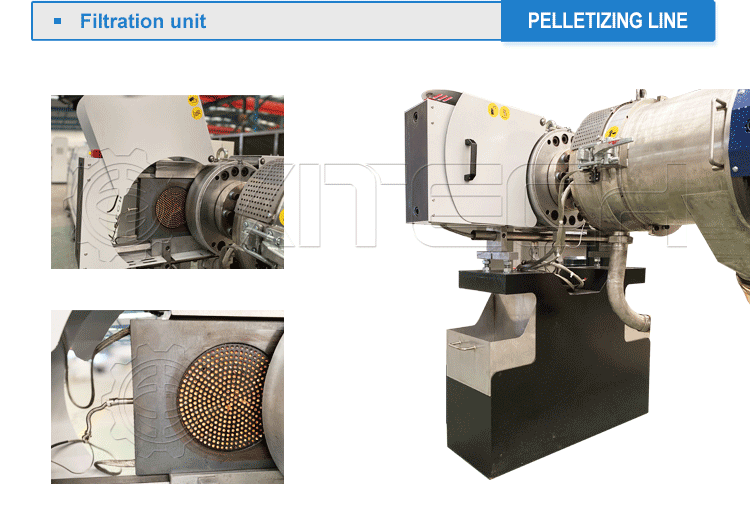

*A single-plate double-station screen changer or double-plate four-station installed on head of extruder filtrates the melt.
*Build in hydraulic control.
*Die-face water ring pelletizing system is a standard pelletizing method,
*Self-adjusting pelletizing,
*RPM of rotator blades is automatic based on melt extruding pressure,
*Dewatering vibration sieve combining with horizontal-type centrifugal dewatering have a good drying efficiency.

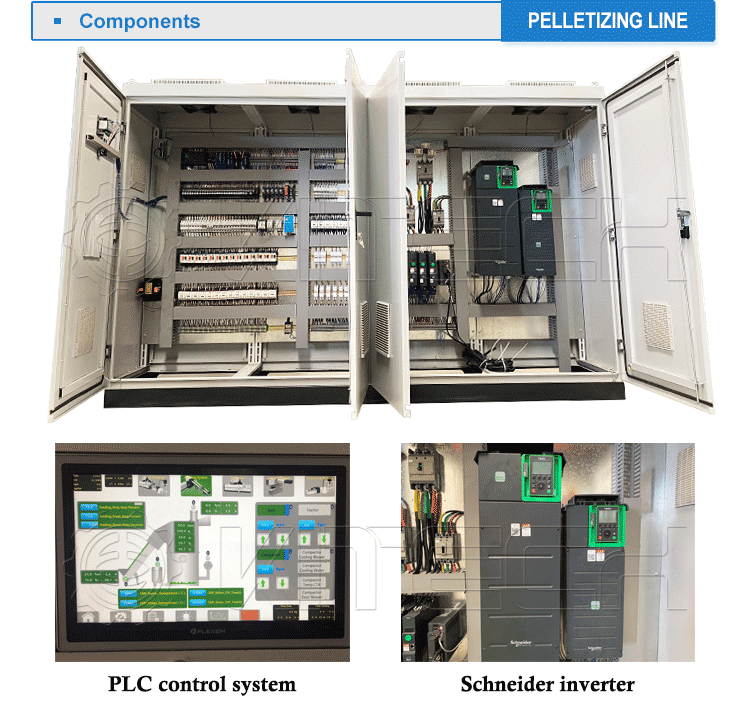

*PLC/HMI Controlling system,
*All electrical units mounted in a steel cabinet,
*All heaters equip with Ammeters,
*Safety interlock principle applied in the system,
*All electrical units: LS, Schneider, Siemens and ABB.
Advantages of Our Plastic Recycling Pelletizing Machine:
*Excellent machenical design
*Automatic intellegent control system
*Top brand components
*High safety protection system
*High efficiency
*High output
*Low energy consumption
*Less-labor cost
Service and support:
*Before-sale:
Introduce products professional
Project engineering
*During manufacturing:
Provide layout and engineering conditions
Inform the schedule of production
Make sure the product designed in accordance with technical document
Test machine before delivery
Provide photos before shipping
*After-sale:
Build customers database. All machines are traceable.
Overseas installation, commissioning and training are available
Speed up service and spare parts supply.
Visit customers and make quality trace periodically
