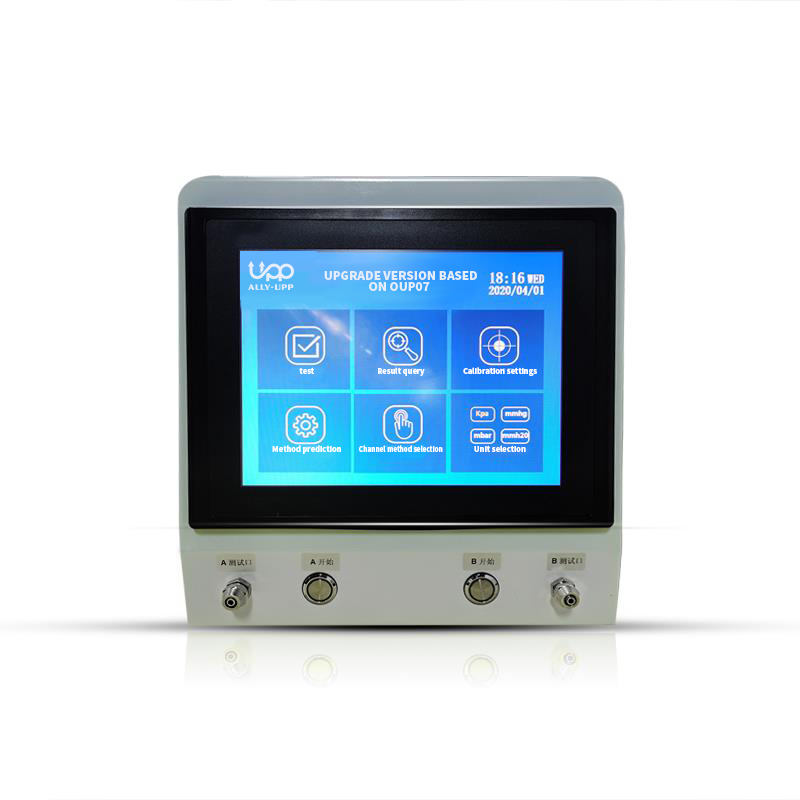

OUP-07S

Model: full automatic leakage measure instrument NP07

Pressure measure range:-50KPa~0/0~50KPa/0~500KPa/0~800KPa, range optional

Resolution ratio: 0.01KPa/0.01KPa/0.1KPa/0.1KPa

Display: LCD

Time setting: start, aerating, balance, air discharge time 0~99S; measure time setting range 0~9999S

Control input: start 1 (outer connection)   Control input: start 2 (outer connection)

Control output: CH1 ( Start, PASS, FAIL, switch signal output)

CH2 ( Start, PASS, FAIL, switch signal output)

Air connect port: connect outer diameter 6mm soft pipe

Power supply: AC220V (Wide voltage)

Air source: common air compressor air source; connect outer diameter 8mm soft air pipe, air source air pressure required at 0.5MPa~1MPa;

Test joggle: double way test (CH1, CH2), means can same inlet test, also can divide to independently test and improve the test efficiency

Size: 250*120*310 mm

Measure agent: clean atmosphere, air (no corrode gas)
