Portable oxygen concentrator
L/CT/T
Spacifications
Flow setting and pulse volume
| |||||
Gear setting | 1 | 2 | 3 | 4 | 5 |
Respiratory rate | Pulse volume(ml) | ||||
10 | 20 | 40 | 58 | 84 | 96 |
15 | 13.3 | 26.6 | 38.6 | 56 | 64 |
20 | 12 | 20 | 29 | 42 | 48 |
25 | 8 | 16 | 23.2 | 33.6 | 38.4 |
30 | 6.6 | 13.3 | 19.3 | 28 | 32 |
35 | 5.7 | 11.4 | 16.5 | 24 | 27.4 |
40 | 5 | 10 | 14.5 | 21 | 24 |
Model | HPT-05 | ||||
Respiratory frequency | Maximum 60/ min | ||||
Respiratory sensor sensitivity | 0.025kpa | ||||
Maximum outlet pressure | 50kpa～90kpa | ||||
Ac power | Ac input: 100 ~240VAC 50/60Hz | ||||
Dc power | DC input:12V±5% 6A MAX | ||||
Battery | Wight: 0.45kg, with charge level indicator | ||||
Rechargeable batteries | Voltage: 14.4 VDC 8A Max | ||||
Usage patterns | Continuous use | ||||
Battery time | Up to 4 hours | ||||
Battery charging time | No more than 4 hours | ||||
Noise level | ≤45dB | ||||
Net weight | 1.95kg | ||||

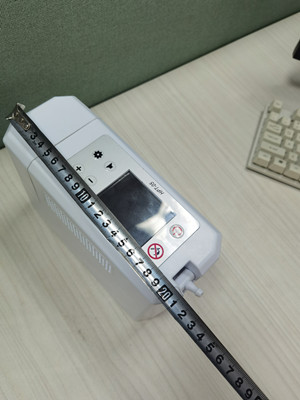

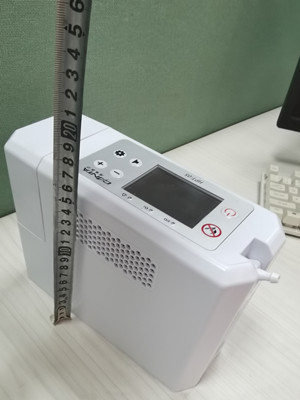

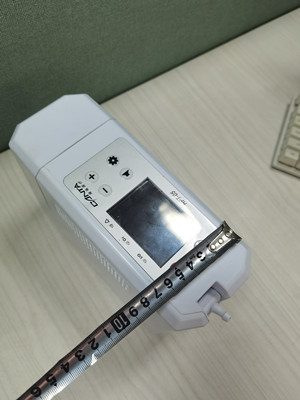

Dimension | 217*85*156mm | ||||
Packing size | 370*170*330mm | ||||
Alarm | Low purity alarm (<82%±3%) Pressure fault alarm（When the oxygen tank pressure drops below 1 atmosphere） | ||||
Portable oxygen concentrator
Portable oxygen concentrator can be chargeable. The battery can support up to 4 hours.
Small,efficient and portable design to satisfy special demand, in order to make patients convenient to use. Portable oxygen concentrators have a portable backpack, which like a shoulder bag or a camera bag, weighing about 2 kilograms only. Lighter and durable battery can last up to 4 hours, home, car, shopping mall and tourist, any location is available.
