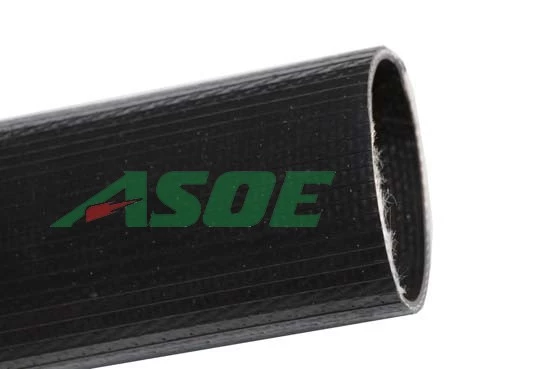

Longman 450 is one type of through-the-weave Nitrile Rubber (NBR) covered hoses. Longman 450 hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the NBR/PVC compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type. NBR compound is composed of NBR and PVC. High percentage of NBR content contributes to better abrasion-resistance.
Longman?450 Nitrile Rubber Layflatg Hose | |||||||||
ID | Wall Thickness | Weigth | Working Pressure | Bursting Pressure | |||||
Inch | mm | Inch | mm | lbs/ft | kg/m | PSI | Bar | PSI | Bar |
1 1/2 | 38+1.5 | 0.08 | 2.2 | 0.21 | 0.32 | 150 | 10 | 450 | 30 |
2 | 51+1.5 | 0.08 | 2.2 | 0.32 | 0.47 | 150 | 10 | 450 | 30 |
2 1/2 | 64+1.5 | 0.08 | 2.2 | 0.44 | 0.65 | 150 | 10 | 450 | 30 |
3 | 76+2.0 | 0.1 | 2.5 | 0.18 | 0.72 | 150 | 10 | 450 | 30 |
4 | 103+2.0 | 0.1 | 2.5 | 0.66 | 0.98 | 150 | 10 | 450 | 30 |
6 | 154+2.5 | 0.12 | 3.2 | 1.14 | 1.7 | 150 | 10 | 450 | 30 |
8 | 204+3.0 | 0.12 | 3.2 | 1.54 | 2.3 | 150 | 10 | 450 | 30 |
10 | 254+3.0 | 0.14 | 3.6 | 2.05 | 3.05 | 150 | 10 | 450 | 30 |
12 | 305+3.0 | 0.18 | 4.5 | 2.41 | 3.6 | 150 | 10 | 450 | 30 |
Application: Suitable for irrigation, washdown, water discharge etc.
Inner tube: Very smooth with minimum friction loss
cover: ribbed for more abrasion resistance
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: -20°C up to +80°C(-4°F up to 176°F) based on water
Standard Color: Black, other colors available per request
Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m, 660ft/200m; other lengths available per request;
Couplings: Camlocks, Pinlug, Expansion Ring couplings etc
