Welline series deep well bore hose NSF61 certified

ID:20111338995

Category: Agricultural Agricultural Machinery

FOB Price:US$ 10.000 / Meter(s)

MOQ:1.00 Meter(s)

Product Keywords:

deep well hosewell hosebore hoseborelinewellmasterwater well hosedrinking water hose irrigation well hoseUPVC hoseoroflex

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney GramOthers

Product Category

Agricultural > Agricultural Machinery

Trademark

Welline

Product Package

pallet or steel reel

Specification

1-10inch

Place of Origin

MADE IN CHINA

Port

Shanghai

Product Description

Welline is one type of through-the-weave polyurethane (PU) covered hoses which are made of PU materials approved according to NSF 61 standard. Welline hoses shall be made from 100% high tenacity virgin synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type. The structure of Welline ensure that exposure to seawater and contamination by most chemical substances, hydrocarbons, oils, alkalis, acids and greases must have no effect on the short or long term performance of Welline hose.

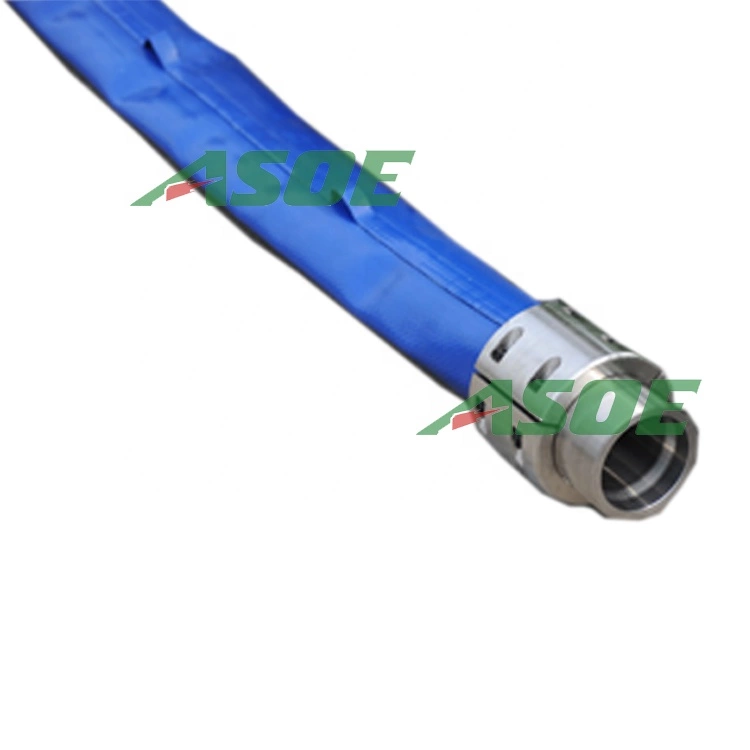

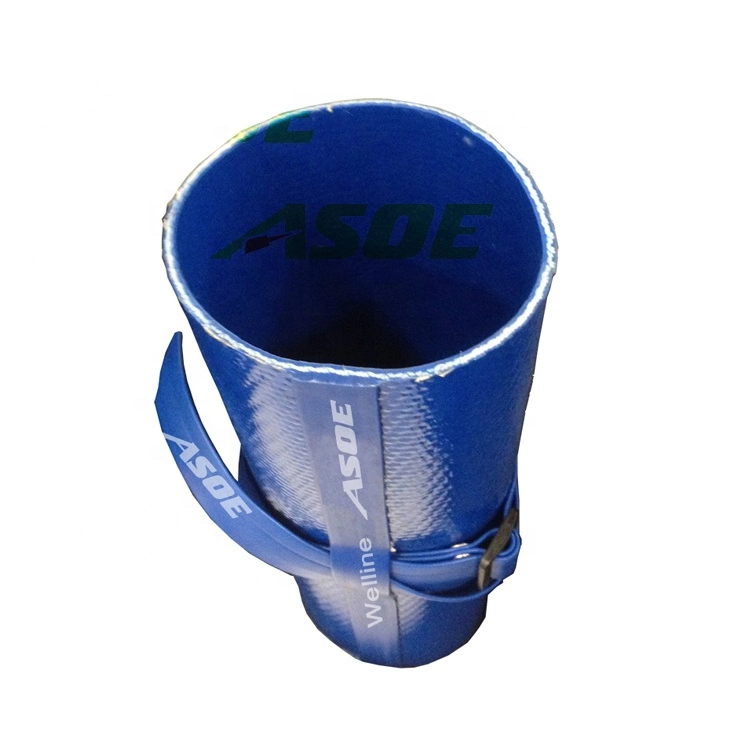

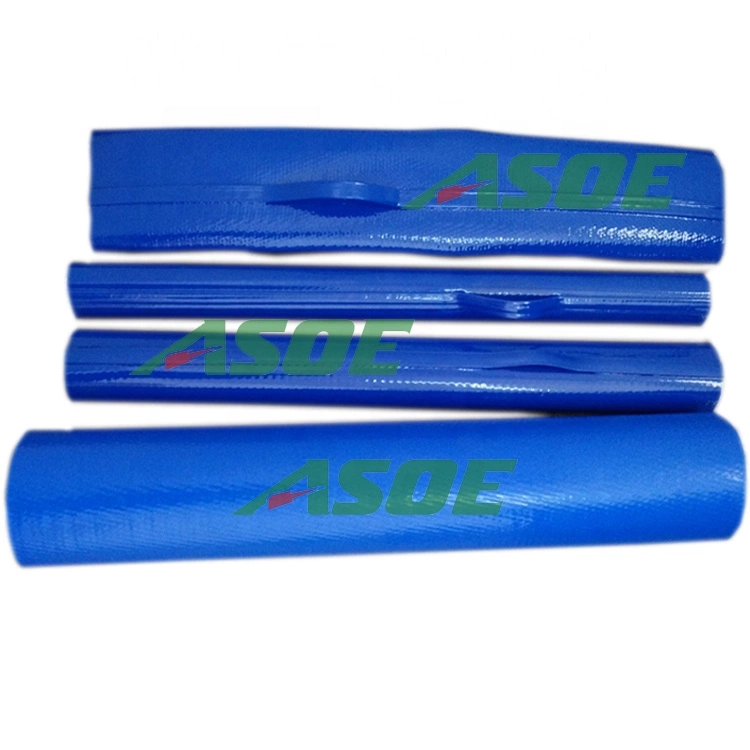

Welline Through-the-Weave PU Layflat Hoses
ID		Wall Thickness		Weight		Bursting Pressure		Tensile Strenght
Inch	mm	Inch	mm	lbs/ft	kg/m	PSI	bar	Kg	Lbs
1 1/2	39+1.5	0.1	2.4	0.22	0.33	920	65	3000	7000
2	52+1.5	0.1	2.4	0.37	0.55	920	65	4000	9000
2 1/2	65+1.5	0.11	2.9	0.41	0.61	920	65	7000	16000
3	77+2.0	0.1	2.5	0.64	0.95	860	60	8000	17000
4	104+2.0	0.13	3	0.94	1.4	840	58	14000	30000
5	128+2.0	0.15	3.8	1.14	1.7	800	55	22000	48000
6	155+2.5	0.15	3.8	1.68	2.5	800	55	24000	54000
8	204+3.0	0.17	4.3	2.3	3.4	645	45	35000	77000

Inner tube and cover: Smooth PU cover and tube

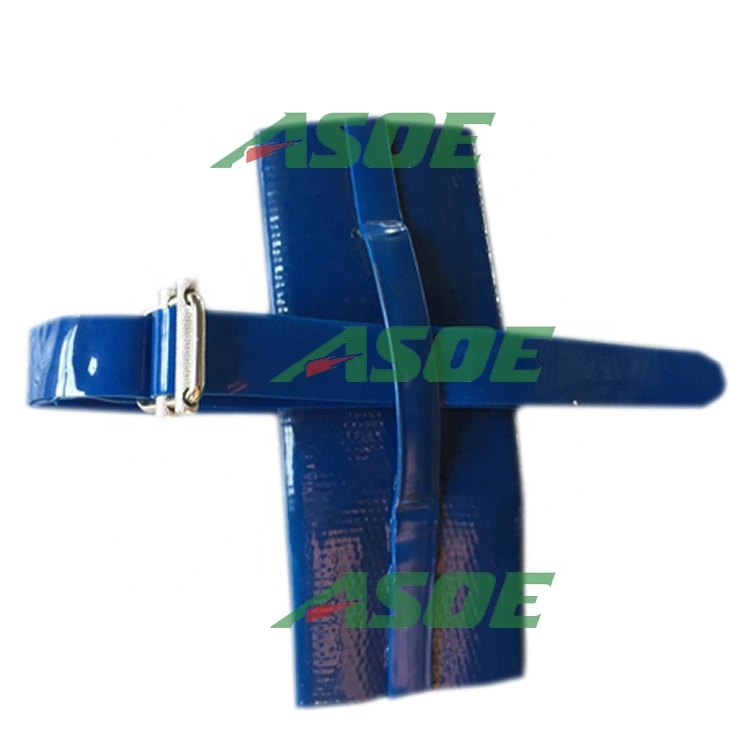

Reinforcement: Circular woven polyester jacket Incorporates a strip of reinforced polyurethane on the side to support the electrical cables and accessories
Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)
Standard Color: Blue, other colors available per request
Standard Length: 330ft/100m, 660ft/200m; other lengths available per request;
Comparable Brand: Wellmaster hose from Angus, Wellman hose from Mandals, Boreline from Crusader, Oroflex Well from Tipsa
Raw Materials: PU made by BASF, NSF61approved Smooth PU cover and tube

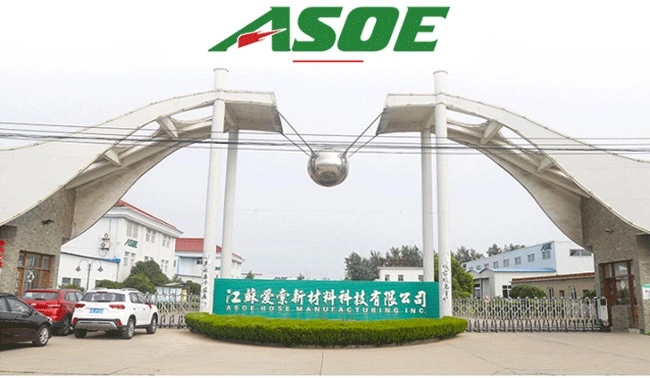

Our Company

Asoe manufactures differnt hoses, including through-the-weave PU layflat hoses, through-the-weave NBR layflat hoses and jacketed fire hoses etc. Jacketed fire hoses are lined with EPDM, Polyurethane (PU), Nitrile rubber (NBR), PVC, Natural rubber (NR) and CR etc. Asoe fire hoses can meet or exceed the technical standard requirement of NFPA 1961, UL19, FM2111, EN14540, EN14811, DIN and BS6391 etc. Some PU covered layflat hoses meet NSF61 standard, which are appropriate for transfering potable water. Asoe designs and manufactures hose couplings which works with Asoe hoses. According to different technical requirement in different applications, Asoe team design appropriate couplings. The materials applied in couplings are aluminum, carbon steel, stainless steel 304, SS316, SS316L, PA6 reinforced Nylon, PE, and PP etc. The couplings includes LDHC series of couplings, HPHC FM
couplings, Storz couplings, camlocks, instantaneous forestry couplings, bauer couplings, etc. Asoe offer some equipments which are used to handle hoses, assembly hoses, installing hose projects etc. Asoe team would like to work with its customers to design new customized solutions which no other layflat hoses manufacturer can supply. Asoe team have enthusiasm in challenging new hose solutions and have expertise in hoses manufacturing, designing, and application, which ensure that Asoe can be a strong back for its customers. Asoe continously created a lot of new hoses solutions in different industries. These webpages can't details all of them. You are welcome to contact Asoe's sales team.

Since it was incorporated in 2013, Asoe is dedicated to supply complete efficient hose solutions to its customers.Asoe supplies not only hoses, but also solution packages, including hoses, couplings, related equipment and accessories tools!

Asoe's hose solutions are applied for different applications.
