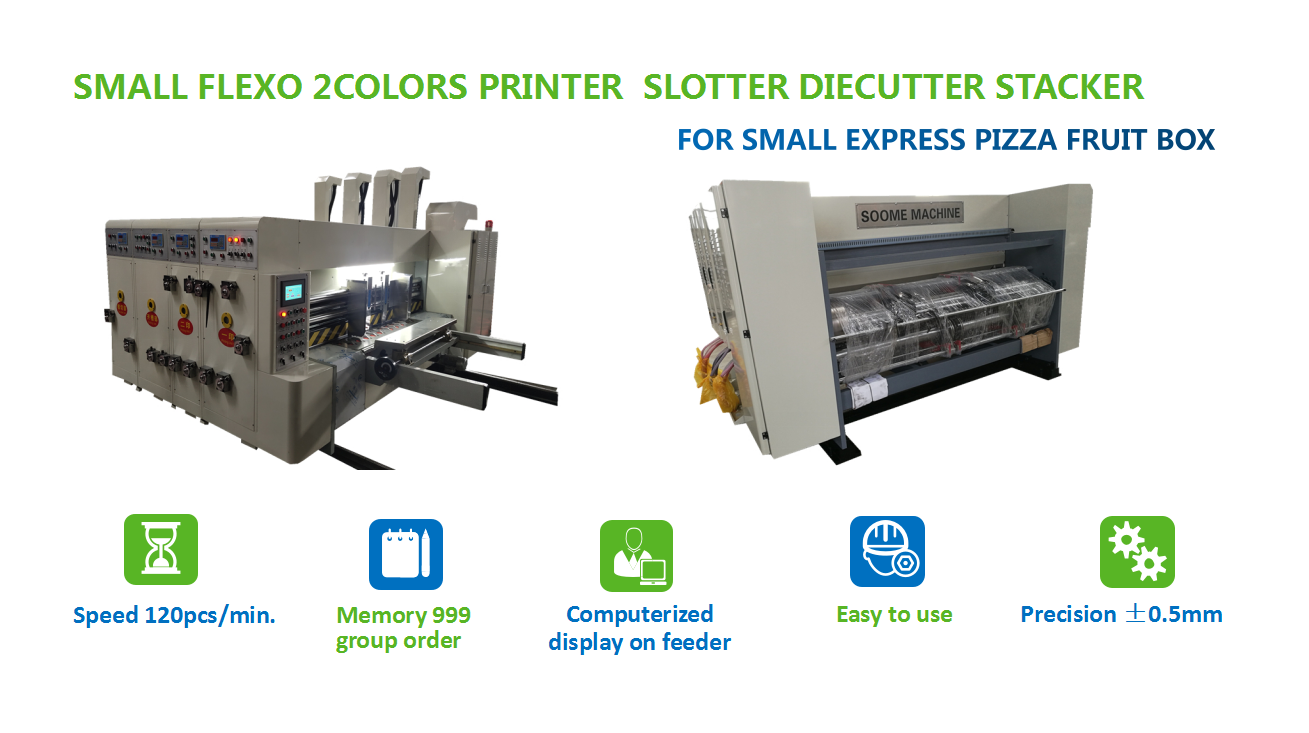

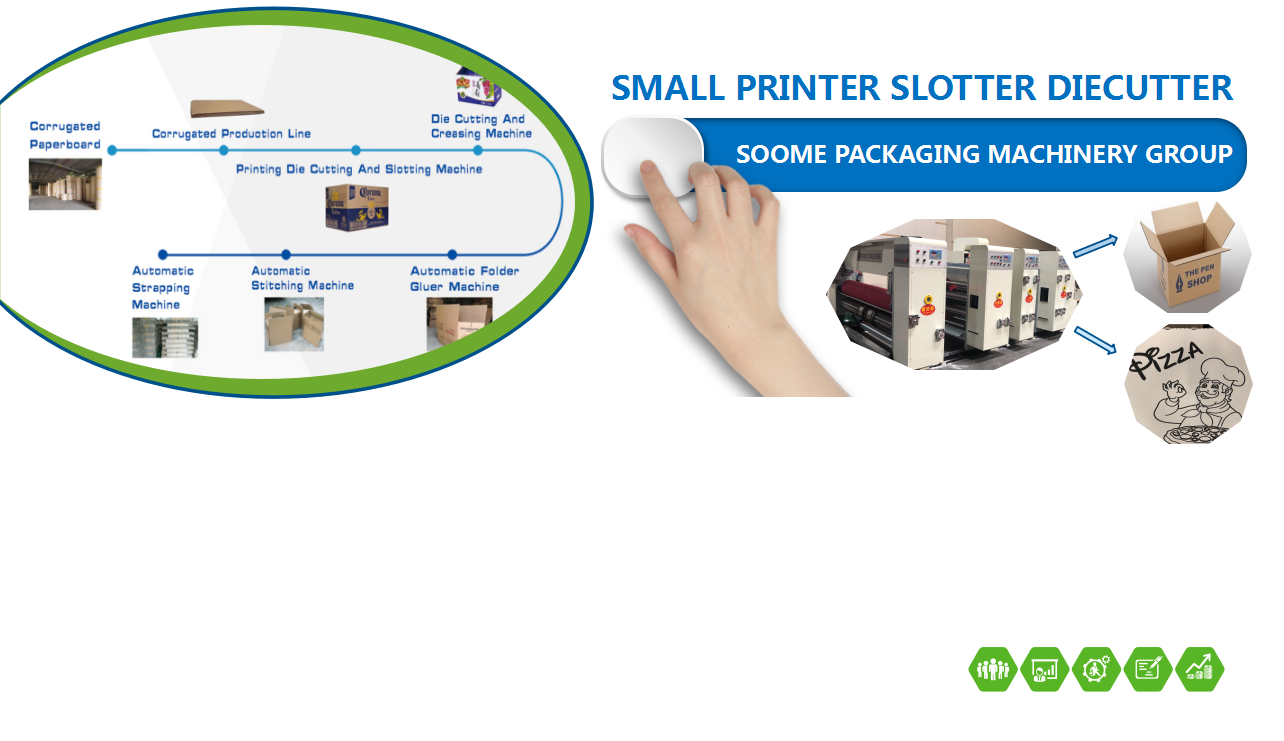

The "Small flexo printer slotter die cutter for making mini box pizza fruit boxes" adopt manual sheets supplying, vacuum suction type automatic lead edge feeding. Can finish corrugated cardboard printing, slotting, corner cutting, edge slitting, creasing, etc functions at the same time. Electrical carton height adjustment, equipped with ruler for easy size checking. The phase of slotting adjustment device is planetary gears structure, adopt electrical adjustment in 360 degree. Above slotter and down knife holders and creasers can move left-right synchronously manually by professional tools. It is easy and convenient in using and maintenance, small and delicate, specially for small cartons printing slotting and forming.

I. Feeding unit

      1. Light pressure vacuum suction feeding of sheet, will not damage the sheet, feeding fast, save labor.

2. The automatic feeder with touch screen, can set the machine speed and working capacity.

3. Electrical adjustment of the left right sheet baffle, and electrical movement of the back guard.

4. The paper feeding shafts adopt rubbure roller with knurling, the pressure adjustment adopt eccentric wheels adjustment, left-right eccentric wheels pressure can be adjusted synchronously.

5. The sheet pushing plate adopt left right two sides baffles and back guard to fix the sheets, can avoid the above sheet moving malpostion when feeding the bottom sheet which will bring the wrong slotting. The baffles can fix different quality sheets, make sure the machine can feed in more steadily.

6. Adopt electrical planetary gear phase adjustment to adjust the sheets size, can adjust directly without machine stop.

II. Printer unit

1. Printing roller diameter Φ288mm, diameter with printing plate Φ300mm, adopt high quality thick seamless steel pipe, with surface grinding, hard chrome plating.

2. Use famous Dalian Tengda anilox roller, high quality steel, mesh is 220LPI or 250LPI as per customer need.

3. Rubber roller adopt high quality wear / oil and acid-base resisting, medium height grinding, better ink distribution effect.

4. The printing roller pressure adopt high precision crosshead shoe gapless adjustment to do micro adjustment, can make the printing pressure reach the best condition.

5. 360°electrical phase, electrical buttons phase adjustment, phase meter for adjustment assistance, this device use planetary gear structure working, machine in running and stop condition can both adjust by electrical buttons in 360°.

6. Diaphragm pump auto ink supplying system, manual printing plate lifting, equipped with auto ink distribution system, can avoid ink drying effectively when machine in interval and stop, will not affect the printing effect. The ink refill tube use 1.2 inches PVC tube, smooth tube, avoid ink block, can eject ink back to the bucket in time, can avoid the ink leakage.

III. Slotting unit

1. Electrical adjustment of carton height, left right movement of slotter knives manually.

2. The slotting holders adopt globular graphite to process, the slotting knives adopt tooth type semicircle knives to remove paper waste, after slotting, the sheets will move to slitting shafts, the edge slitting knives will cut the two edge of board more tidily and smoothly. (Remark: install the creasers and edge slitting knives on the same shaft for easy adjustment.)

3. After the cardboard slotting, corner cutting, creasing lines, edge slitting finished, the cardboard will be output by the paper guiding shafts. The machine equipped with variable frequency governor can adjust machine speed as you need.

 IV. Technical parameters

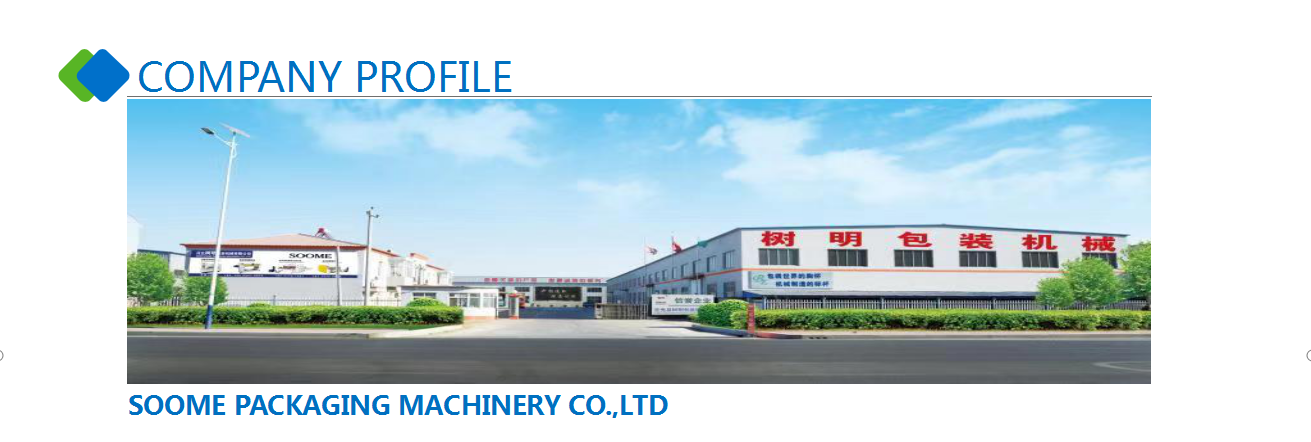

Soome machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine. Also export flexo printer slotter rotary diecutter machine, folder gluer, laminator and other carton machines.

Facing the fierce competition in corrugated packing field,our company adopt three concepts “mechatronics” “intelligent operation” and “simple usage”. We developed several new high speed automatic machines which improved the competition ability of our customers.

We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy .Our products sold to Italy, Spain, Argentina, India, Pakistan, Germany, Egypt,Vietnam,Kazakhstan,Iran,Turkey ,Russian ,and so on.

Wish we unite in a concerted effort for the beautiful future!

1. Q: Are you a manufacturer or trading company ?

   A: We are a SOOME group. Have two companies. One is a factory specially producting corrugated carton machines. Another is trading company can deal with large range of products.




2. Q: How can you assure your machine quality ?

   A: 1) We have QC to check the materials and parts before we put them into our warehouse.

   2) In the production, workers will install well and if have problem, will change and talk with engineer to solve / change quality problem.

   3) After machines finished, our QC will check and test the machines to run long time, assure machine no problem.

   4) Sales will check the machine details as per the contract with customers.




3. Q: What service can you do ?

   A: 1) We can offer parts of the machine free within 1 year if any broken, expect the quick ware parts.

   2) Can send engineers to customer factory for installation and training.

   3) If customer has any questions or help needed, can call sales to help solve problem anytime. Online service is 24hours.




4. Q: Do you attend exhibition ?


       A: Yes, we attend the exhibitions every year. In Shanghai or Dongguan and Dongguang in China. Before your coming, can contact us to ask for the booth no. We are glad to meet you on exhibiton.

  5. Q: Can visit your factory ?

      A: You are always be welcomed to visit our factory.
