Main features

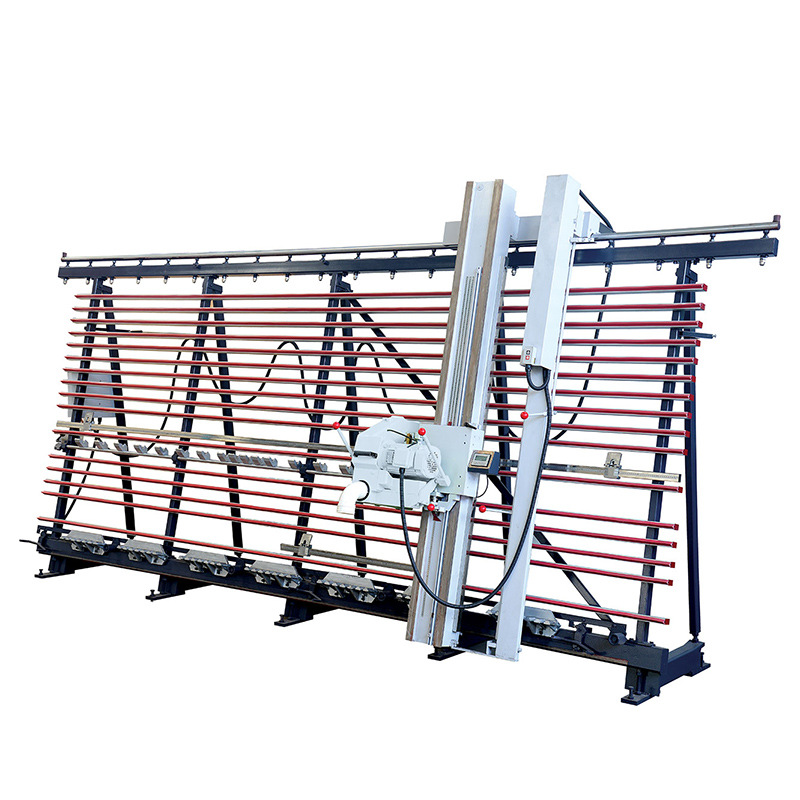

1. Unique design for Aluminum Curtain Wall, Aluminum CNC Composite Panel grooving cutting machine,
adopt to industrial control system.
2. Milling cutters can work in horizontal and vertical way. X, Y axis servo two‐way processing, pneumatic feed
elasticity and Z axis to realize the automatic processing.
3. No need professional programming, easy to operate.
4. Reduce the work intensity of labor, high precision error is + 0.2mm.
5. Processing range (L×H): 4100×1600mm;
Technical Parameters
Model | LZBD‐CNC‐4200 |
Power supply | 380V/50HZ or customized |
Groove linear in horizontal milling | ≤0.25/1000mm |
Groove linear in vertical milling | ≤0.25/1000mm |
Cutting surface roughness | Ra12.5∪m |
Two IS vertical slots max deviation from standard line | ≤1 |
The parallelism of two milling slots in the same direction | ≤0.25/1000mm |
Cutting motor power | 3.0KW |
Motor rotary speed | 6000r/min |
Cutting width | max 4100mm |
Cutting height | max 1600mm |
Cutter Size | φ250mm×φ30mm×15mm (90*1.2/135°) |
Saw Blade Size | φ250mm×φ30mmX3 |
Over all dimension | |
Package Size | Frame: 6000*1000*2450mm |
Weight | 1030Kg |
