Stainless Steel Y-strainer

【Size Range】: DN50-DN600

【Pressure】: PN16

【Body Materials】: SS304

【Seat Materials】: SS304

ADVANTAGES

1. Precision casting body, fine appearance, no trachoma
2. Heavy type valve body.
3. Stainless steel 304 filter screen.
4. Full welding process for filter screen, the opening rate of screen reaches 80%. Wear and corrosion resistance are improved.
5. Each valve will be inspected for shell and seal pressure before leaving factory.

PARAMETER INFORMATION

Name	Design and manufacture	Face to face Length	Pressure Test	End flange
Reference standard	SH/T 3411-1999	GB/T 14382-2008	GB/T 13927-2008 API 598	HG/T 20592-2009(PN series) HG/T 20615-2009(Class series)

Name	Body	Filter Screen	End cover
Material	CF8	304	CF8

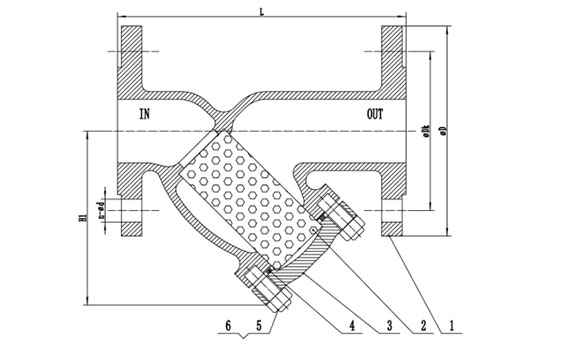

Size		L	PN16		Class150
DN	NPS(Inch)	L	ΦA	ΦB	ΦA	ΦB
50	2''	215	165	125	150	120.7
65	2 1/2''	250	185	145	180	139.7
80	3''	285	200	160	190	152.4
100	4''	305	220	180	230	190.5
125	5''	345	250	210	255	215.9
150	6''	385	285	240	280	241.3
200	8''	487	340	295	345	298.5
250	10''	454	405	355	405	362
300	12''	605	460	410	485	431.8
350	14''	680	520	470	535	476.3
400	16''	757	580	525	595	539.8
450	18''	850	640	585	635	577.9
500	20''	895	715	650	700	635
600	24''	1070	840	770	815	749.3
