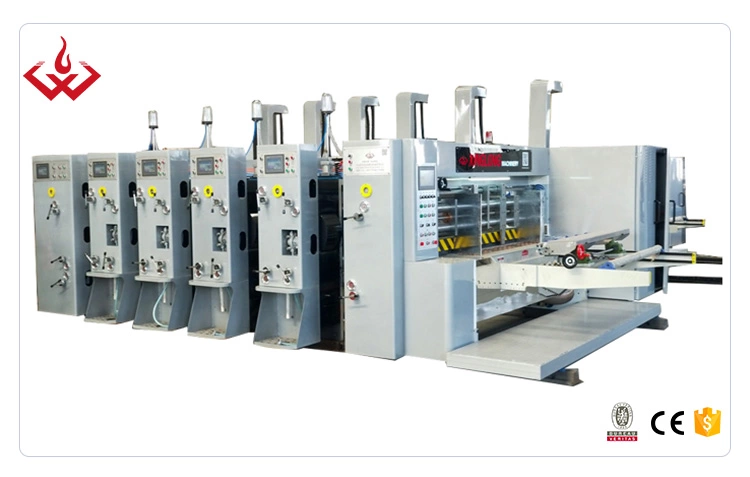

high speed full auto carton making machine flexo printer slotter die cutter
Main Technology parameters
Model | YJ150-1022 | YJ130-1224 | YJ120-1426 |
Machine inside width (mm) | 2400 | 2600 | 2800 |
Max feeding paper siz(mm) | 1000*2200mm | 1200mm*2400mm | 1400*2600mm |
Max effective printing size(mm) | 1000*2000mm | 1200mm*2200mm | 1400*2400mm |
Min coverage size(mm) | 350*700mm | 350mm*700mm | 350mm*700mm |
Design speed (pcs/min) | 150pcs/min | 130pcs/min | 120pcs/min |
Working speed (pcs/min) | 130pcs/min | 120pcs/min | 100pcs/min |
Standard Thickness of printing plate | 6mm | 6mm | 6mm |
Printing precision | ±0.5mm | ±0.5mm | ±0.5mm |
Thickness of cardboard | 1.2-9mm | 1.2-9mm | 1.2-9mm |
Wall thickness | 40mm | 40mm | 40mm |
Main motor power | About :15kw | About :15kw | About :15kw |
Performance and Characteristics:
l The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching,die cutting and so on.
l Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
l All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
l Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
l The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
l The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
l Motorized digital phase adjustment with “automatic zero return” and “memories” function PLC control with touch screen.
l The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
