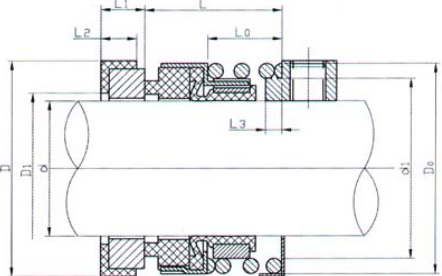

Mechanical Seal CMIA Type
CMIA Type
Parameters used:
Seal chamber pressure: ≤ 0.98mpa
Seal chamber temperature: - 20 ℃ ~ 150 ℃
Sealed media: oil, water, weak corrosive liquid.
Linear speed: ≤ 10m / S
Form features: CMIA rubber bellows mechanical seal is a single spring, internal flow single end face structure rubber bellows and non-equilibrium mechanical seal. Its transmission form is that the rubber bellows and the shaft drive the moving ring to rotate in the same direction through the fastening force of the fastening seat. The default rotation direction of the spring is right rotation. CMIA mechanical seal meets the standard of "JB / T 6616". The structure is simple and compact.
Seal ring material SiC, WC, impregnated metal graphite, friction pair material and auxiliary seal material should be selected according to the actual working condition.
