manufacture supplying competitive price drum wood chipper
Specifications

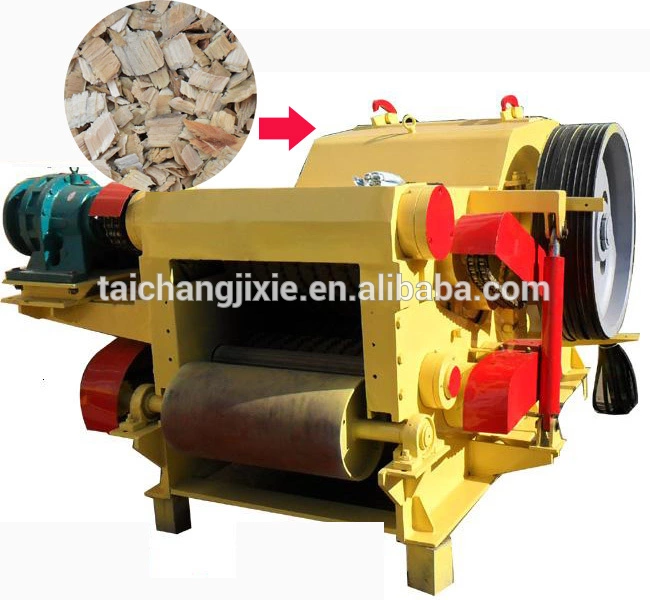

drum wood chipper
1.Hot Drum Wood Chipper:
2.Adjustable output size;
3.High alloy cutting blades;
4.10-20% higher capacity;
5.CE Certificate.
Introduction of drum wood chipper
TCGX series Drum Wood Chipper is one kind of special equipment for producing wood chips, widely used in the raw material preparing process in the factories of flakeboard, fiberboard, papermaking and wood chips making plant. Small drum type wood chipper is the best equipment for factory’s laboratory preparing material.
Features of drum wood chipper
1.drum wood chipper has knives grinder,which can grind knives newer after certain time, then no need to change knives often. The full unite contains 4m length feeding conveyor ,outlet conveyor, knives grinder, electrical control cabinet ect.
2.drum wood chipper is hot selling more than 8500sets per year, greatly welcome to ask me for details, have big discount if order large quantity.
3.Flexible adaptability. The design of this machine avoids making the foundation. And it is suitable for many different conditions, it does not influenced by weather and other external conditions.
Technical data of drum wood chipper
MODEL | TCGX215 | TCGX216 | TCGX218 | TCGX2113 |
FEEDER SIZE(mm) | 160*400 | 230*500 | 300*680 | 450*700 |
QTY OF FLY KNIVES(PCS) | 2 | 2 | 2 | 2 |
SPEED OF KNIVES RUNNIN(R/M) | 592 | 590 | 650 | 500 |
MAX DIAMETER FEEDER (mm) | 160 | 230 | 300 | 450 |

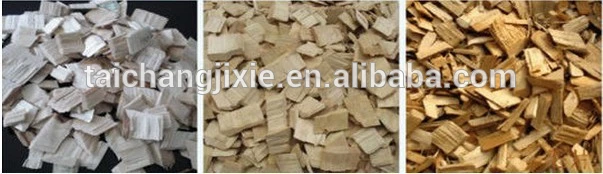

WOOD CHIPS SIZE ABOUT(mm) | 30 | 30 | 30 | 38 |
CAPACITY (T/H) | 3-4 | 7-8 | 12-15 | 15-30 |
MAIN POWER (KW) | 45 | 55 | 110 | 160 |
FEEDER POWER (KW) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
OIL PUMP POWER (KW) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
WEIGHT (KG) | 2990 | 4070 | 7000 | 11840 |
MACHINE OUTER SIZE (MM) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3700*2600*2200 |
BACK CONVEYOR POWER (KW) | 3 | 3 | 3 | 4 |
Working Principle of drum wood chipper:
This machine is made up of feed inlet, upper cover, rotor, hammers, pin roll, outlet, motor, base, fan blower and cyclone etc.
Materials fall into the crushing room through feed inlet. Ther are crushed under the action of high
speed rotating hammer blowing and screener friction, go through the screener hole and discharge
from the outlet unser the action of centrifugal force and flow.
1.We take customers as our gods. We devote to all-round service of all the products from shipment to maintenance.
2. After selling, we provide the warranty of one year.
3. If you have any problems, we will help to solve on line in first time.
4.Our products have CE and ISO certificate, they are of good quality with lower price.

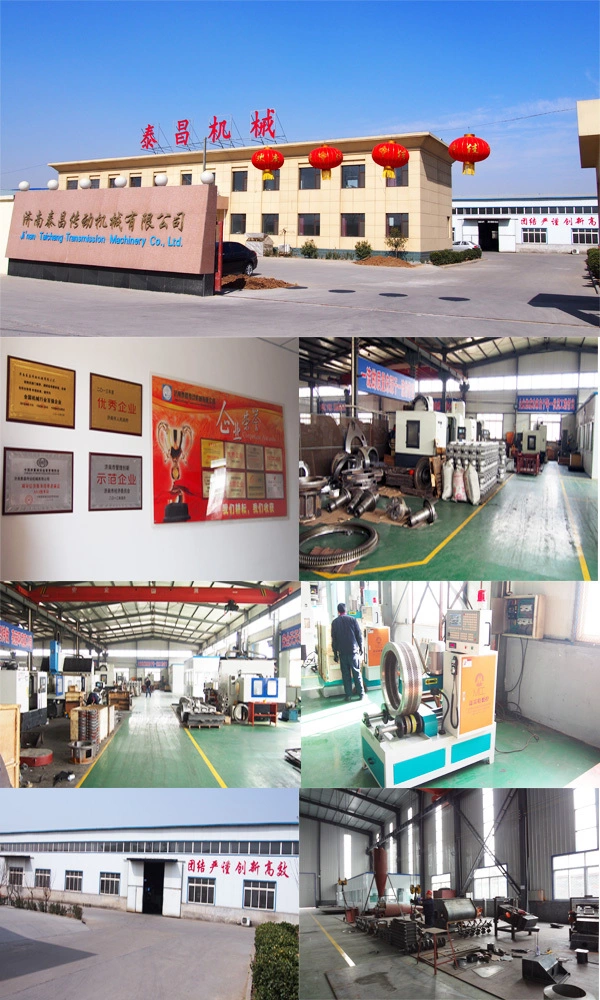

1.Jinan Taichang Transmission Machinery Co.,Ltd located in Shandong province,China. Our factory is a professional manufacturer of biomass pellet machine for agriculture, forest, pasturage, fishery for many years.
2.Our company has passed ISO9001-2008 quality certification , CE certification.
3. We have a perfect after-sales service system and provide customers with prompt and through service. nmmmm
IN ORDER TO provide you the suitable product,please tell me the answers of the following question:
1.what's raw materials?
2.the moisture and size of raw materials?
3.how much production capacity you need? ( h OR d)
4.The shape and size of the final product you prefer?
5.are you product fuel or feed use it?
