Instruction:

1. ZXJ-Q II fully automatic folder glue consist of feeder, glue and fold part, rectify and stacking part.

2. PLC adjust speed, remote adjust speed, computer with touch screen adjust width(optional,Conventional models without), easy fast and stable.

3. Automatic feeding, gluing, folding, counting, stacking and output.

4. Double frequency convertor operation.

5. Average speed 120m/min, max speed 160m/min.

6. Memory function can storage many orders

Function and character:

1. It is suitable for a wide range of cartons, adjust size fast and easy.

2. Machine work stable, package beautiful and firm.

3. Easy operation and maintenance

4. Pre-crease wheel make the line good after printing, rectify carton automatically, rectify scissors, fishtail problem.

5. Stack part has rectify deviation device to prevent scissors efficient.

Product model parameters :(total mass: about 5 tons)

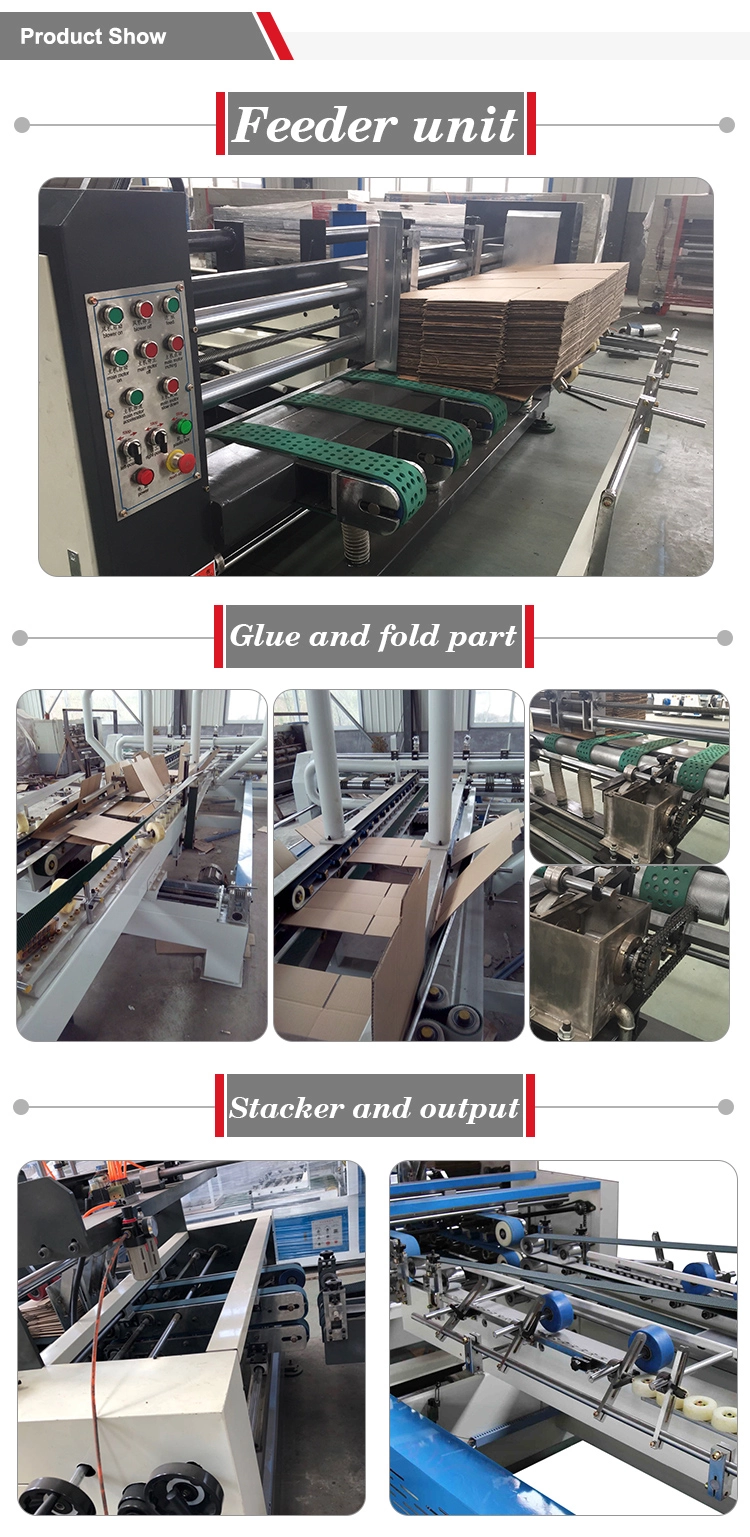

Structure:

1. Control box

Full machine PLC control, touch screen enter data, it can change data and speed non stop machine.

2. Feeder

1. Sheet height adjust device made of high quality steel, adjust box height and sheet length fast.

2. Belt of feeder made of high-tech material, strength layer connect ring belt no seamless. No problem when running machine.

3. Taiwan brand suction motor and main drive motor, high quality and stability.

4. High grade electromagnetic clutch and brake system, feed sheets one by one or continually, reduce waste when adjust box size.

3. Glue and fold part

1. GPG motor from Taiwan, stability, fast adjust speed, no noise

2. Imported special material no seamless ring belt, high friction and wearable, fold cardboard accurately and no mistake.

3. Gluing part made of high quality stainless steel, gluing even and efficient, save glue.

4. Double crease rectify device, rectify crease deviation accurately, fold carton most precision.

4. Stacker and output

1. Auto counter, stack and flap, output, set box output quantity as clients requirement, automatic rectify scissor box.

Spare parts

1. PLC and computer components, frequency, low-voltage electric components imported brand.

2. LK bearing

3. Spiral screw, screw rod, nut made of #45 steel, quenching treatment.

Main electric parts list
