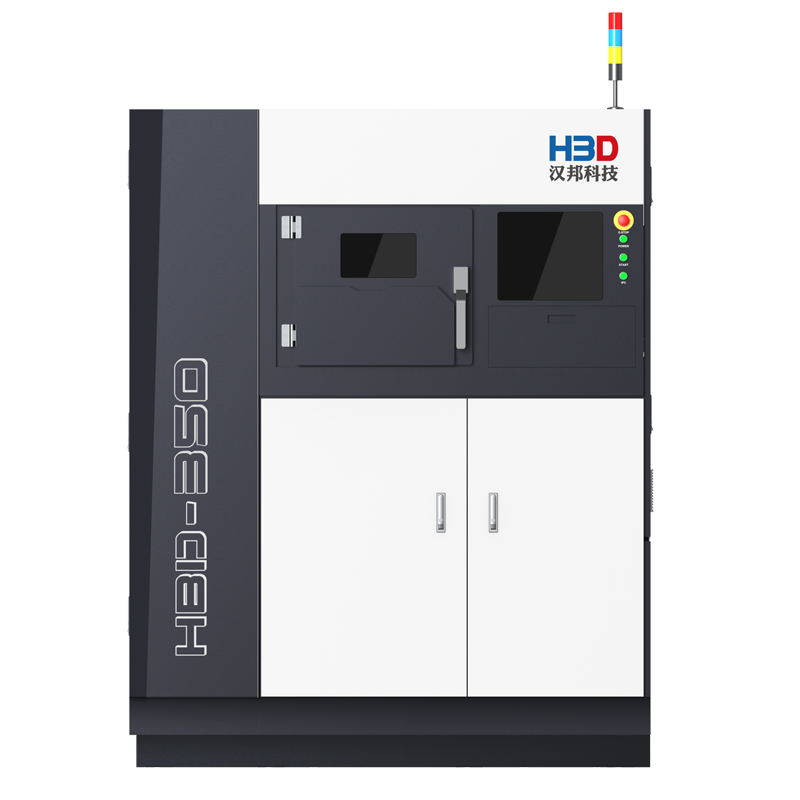

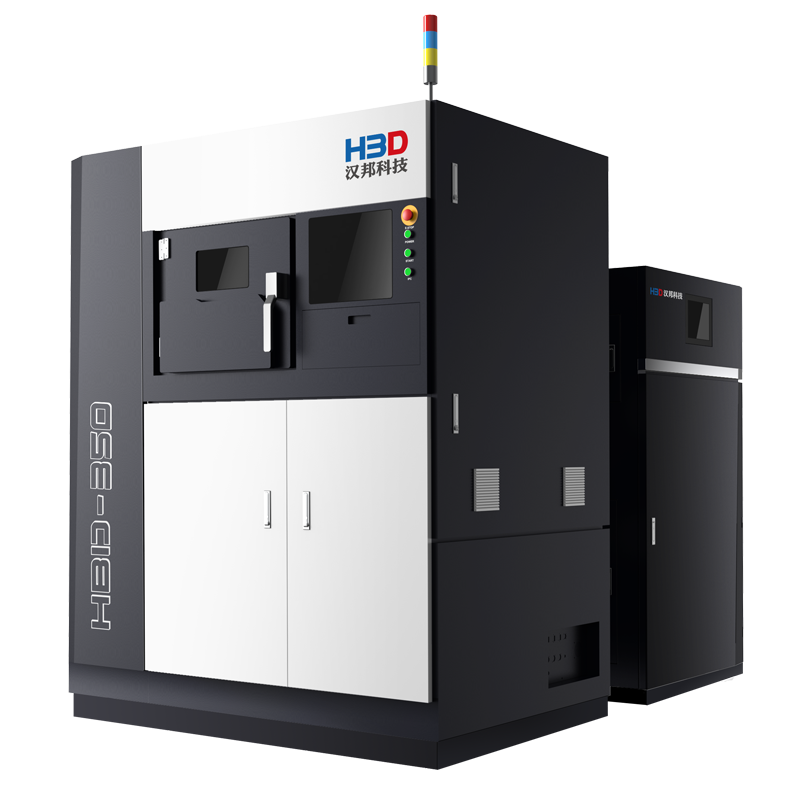

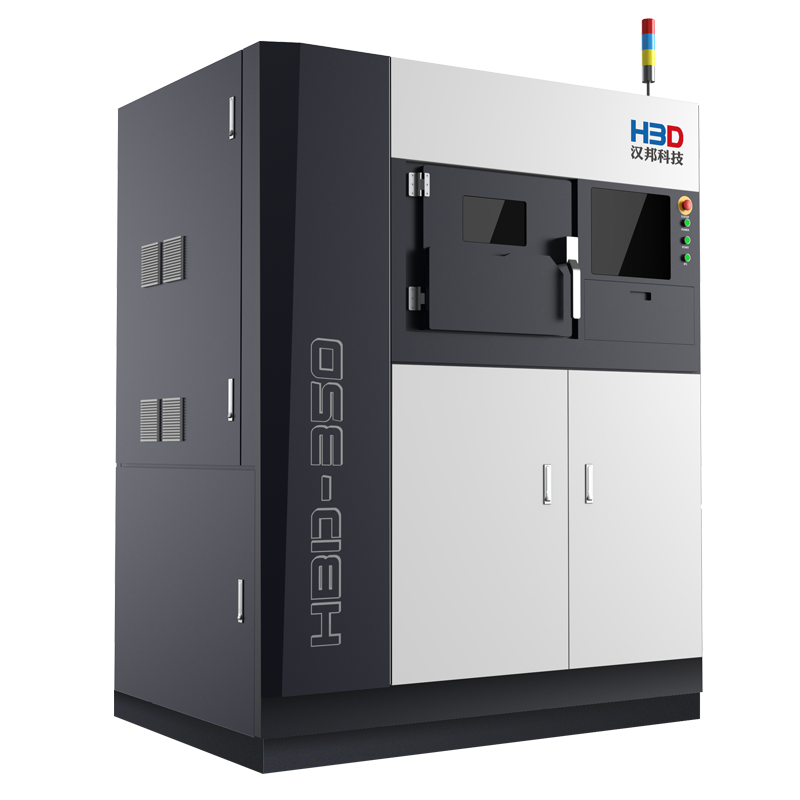

HBD-350/HBD-350T Metal 3D Printer

设备特点 | Equipment Features：

高效率高质量打印装备，具备更主流成型尺寸，兼容单/ 双激光配置，高效稳定的铺粉供粉系统，封闭式全自动粉末循环系统，独立长效多级净化系统，满足高效率、高强度、高质量、持续性生产需求，适用于模具、 航空航天、医疗器械、汽车零部件制造等领域。

High-efficiency and high-quality printing equipment, with mainstream molding size, compatible with single/dual laser systems, efficient and stable powder coating system, closed automatic powder circulation system, independent long-acting multi-stage purification system, could meethHigh-efficiency, high-strength, high-quality, and continuous production needs. The 350/350T printers are suitable for mold, aerospace, medical equipment, automotive parts manufacturing and other fields.

技术参数 | Technical Parameters

成形尺寸 | Forming Size：325mm×325mm×400mm

激光功率 | Laser Power：500W / 500W×2

打印层厚 | Layer Thickness：30μm-100μm

打印线宽 | Focus Diameter：70μm-200μm

线扫描速度 | Scanning Speed：≤10000mm/s

氧浓度 | Oxygen Content：≤100PPM

零件致密度 | Relative Density：近乎100%  Nearly 100%.

打印精度 | Typical Accuracy：0.05-0.2mm

打印材料 | Metal Powder：不锈钢、钴铬合金、模具钢、钛合金、高温合金、铝合金、哈氏合金及钨，钽等难熔金属  Stainless steel, Cobalt-chrome alloy, Tool steel, Titanium alloy, High temperature alloy, Aluminum alloy, Hastelloy, Tungsten, Tantalum and some other refractory metals.

成形气氛 | Protective Atmosphere：整体密封，氧含量分区自动监控；循环气体净化除尘率≥99%  Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection coefficient ≥ 99%.

软件参数 | Software Package：硬件允许范围内全开放  Full opening within hardware allowed.

工艺参数包 | Processing Parameter Package：配备并可自定义  Equipped and customizable.
