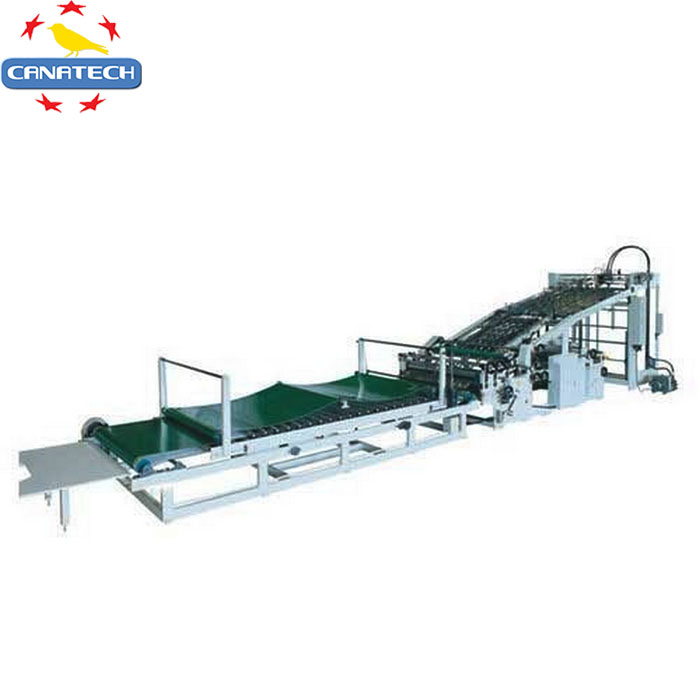

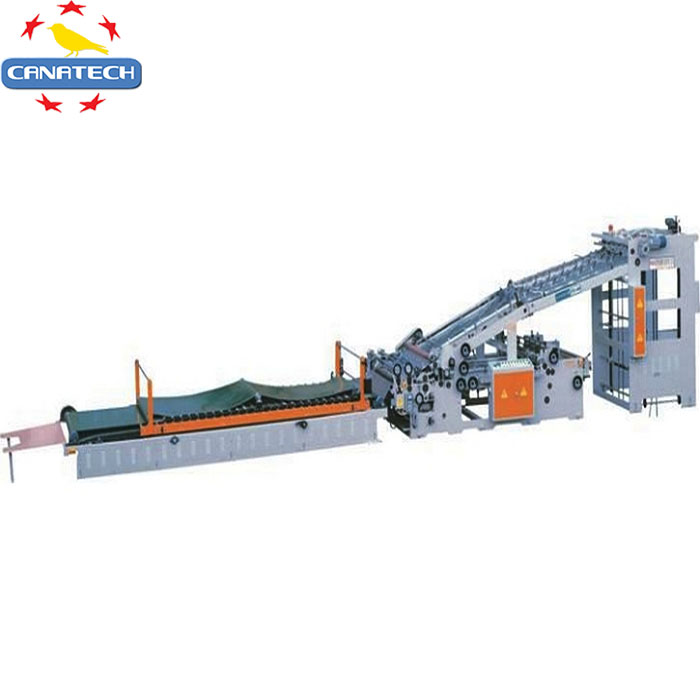

Corrugated Cardboard Paper Automatic Flute Laminating Machine
1. AFL series Automatic Flute Laminating Machine adopts timing belts imported from Japan,which are constructed with wear resistant and high tensile, thus guarantee the extremely accurate precision of lamination.
2. Adjustable glue roller system applies evenly on the corrugated paper and achieved gluing action.The recycle gluing system is refilled glue in the slot at both gluing rollers by electric glue controller. The glue system prevents wasting glue
that makes it efficiency.
3.The advanced suction belt feeding mechanism of the bottom sheet feeder ensures A,B,C,D,E and F flute, single and double wall corrugated paper to be delivered smoothly even at high speed.
4. It is most suitable equipment for high grade color print corrugated packaging converting.
(automatic flute laminating machine, automatic flute laminator,corrugated cardboard flute lamination machines, paper laminating machine)
Main specifications:
Model | AFL-1300 | AFL-1450 | AFL-1600 |
Maximum size(W×L) | 1300×1100mm | 1450×1100mm | 1600×1400mm |
Minimum size(W×L) | 350×350mm | 350×350mm | 450×450mm |
Laminate precision | ≤±1.5mm | ≤±1.5mm | ≤±1.5mm |
Max Speed | 6000s/min | 6000s/min | 6000s/min |
Total power | 12kw | 12kw | 13kw |
Total length | 12.6m | 12.6m | 15m |
Total weight | 6900kgs | 7350kgs | 8200kgs |
