4G Universal LTE USB Dongle GSM USB Stick Mobile Broadband Modem With High Quality

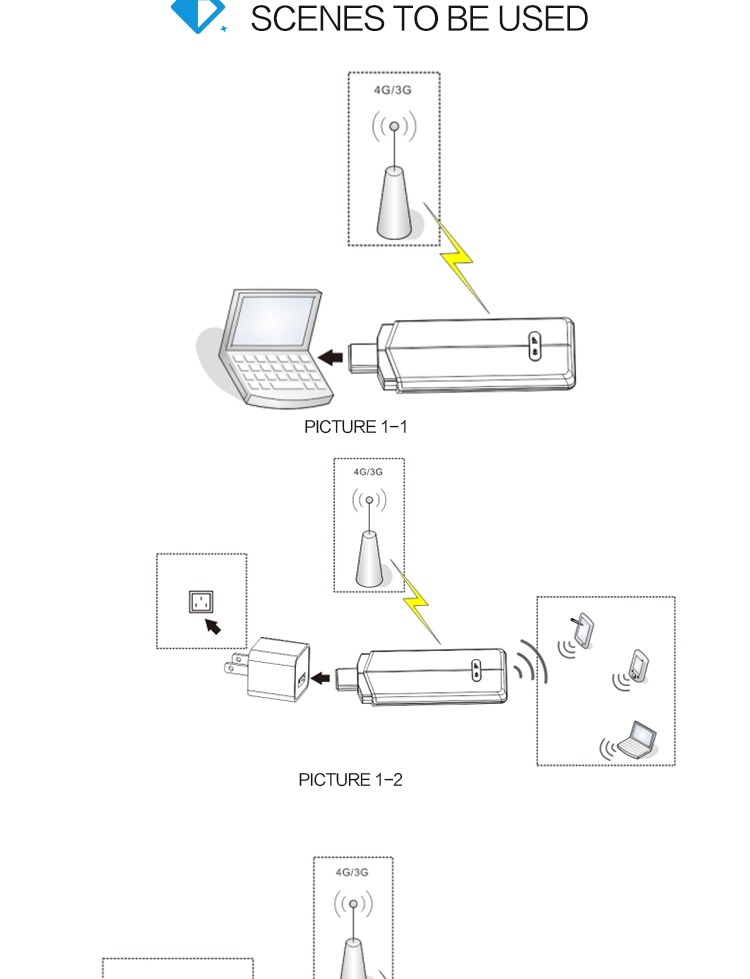

It is compatible with the4G IEEE802.11n portable router, and a solution to adapt to 3G networks, users can
connect and share high-speed 4G networks. With the emergence of 4G networks, wireless router via Wi-Fi to share the 4G connection is also a lot of people's needs. We launched the smallest 4g pocket wireless router is such a product: the SIM into the router, you can easily share via Wi Fi network 4G connection,
so you can easily make laptops and other Wi-Fi devices anywhere, anytime connectivity Internet.
smallest 4g pocket wireless router Built-in high energy density, removable lithium battery, readily available sufficient energy, high-performance built in 4G module! The appearance of small, compact, attractive
appearance, easy to carry.
| Basic Product Information | Remark | |
| Model | 4g wi fi dongle | |
| CPU (MHz) | CPU (MHz) | |
| SA Time | 4.2016 | W2100 900 LTE B1 B3 B7 B8 B20 |
| Band/Mode | TDD-LTE: B38//40 FDD-LTE: B1/B3/B7/B8/B20(B5) UMTS:B1/B8 GSM Quad Band | TDD-LTE: B38(2600)/B5(850)/B40(2300) FDD-LTE: B1(2100)/B3(1800)/B7(2600)/B8(900)/B5(850)/B20(800) UMTS(WCDMA): B1(2100)/B8(900) GSM: Quad Band (850/900/1800/1900) |
| HW Description | ||
| Air interfaces | GSM/GPRS/EDGE | DTM (simple class A), multislot class 12 |
| UMTS | R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL R8 DC-HSPA+ 42 Mbps DL / 5.76 Mbps UL | |
| TDD-LTE | R8 Cat3 61 Mbps DL / 18Mbps UL | |
| FDD-LTE | R8 Cat3 100 Mbps DL / 50Mbps UL | |
| CDMA | EVDO Rev.B: up to 14.7Mbps DL / 5.4Mbps UL EVDO Rev.A: up to3.1Mbps DL / 1.8Mbps UL | |
| Memory | ||
| System memory | NandFlash 1Gb+DDR SDRAM 256Mb | |
| External memory | NandFlash 1Gb+DDR SDRAM 256Mb | Micro-SD |
| WIFI | ||
| Frequency Band | 2.4GHz | |
| 802.11b/g/n | up to 150Mbps | Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz) |
| User amount | Max to 8 | |
| LED | ||
| Power | Red | |
| WIFI | Green | Wifi work |
| LTE | Blue | Connect internet |
| Other Description | ||
| RF Power Spec | Class 4 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900 | |
| Power supply input | USB 2.0 5V-1A | |
| Compliance | ||
| ROHS | YES, EU RoHS | |

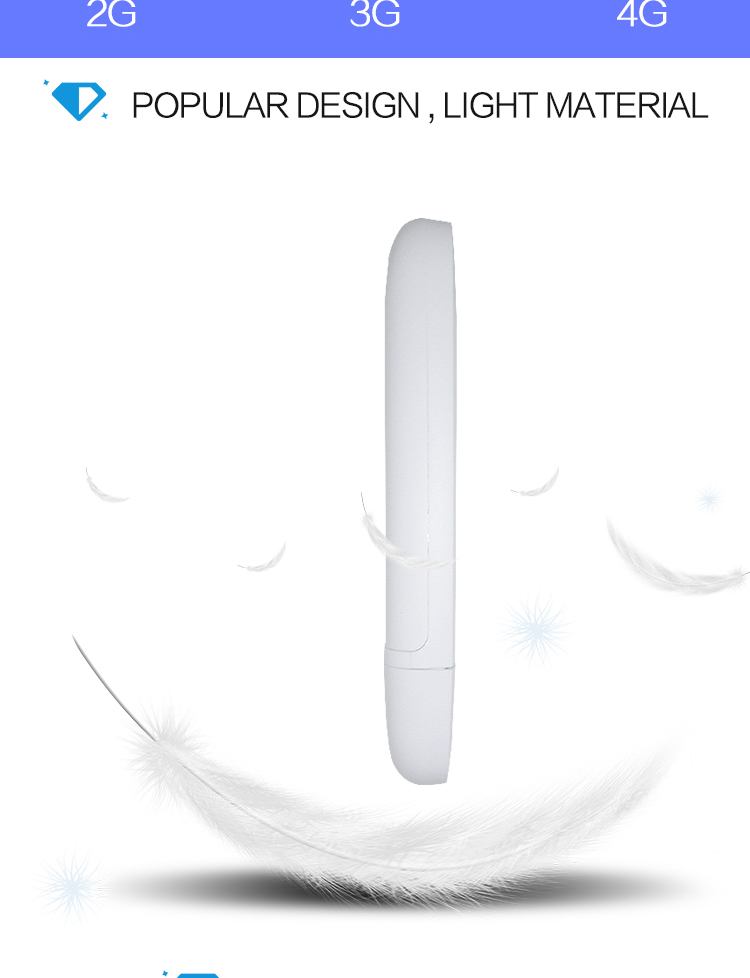

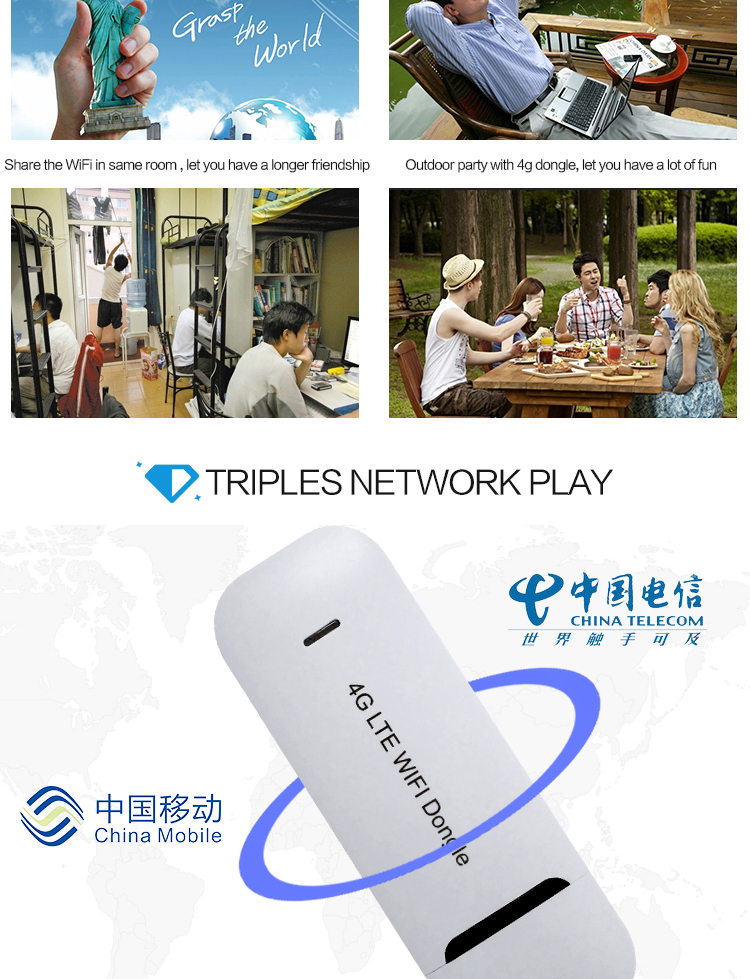

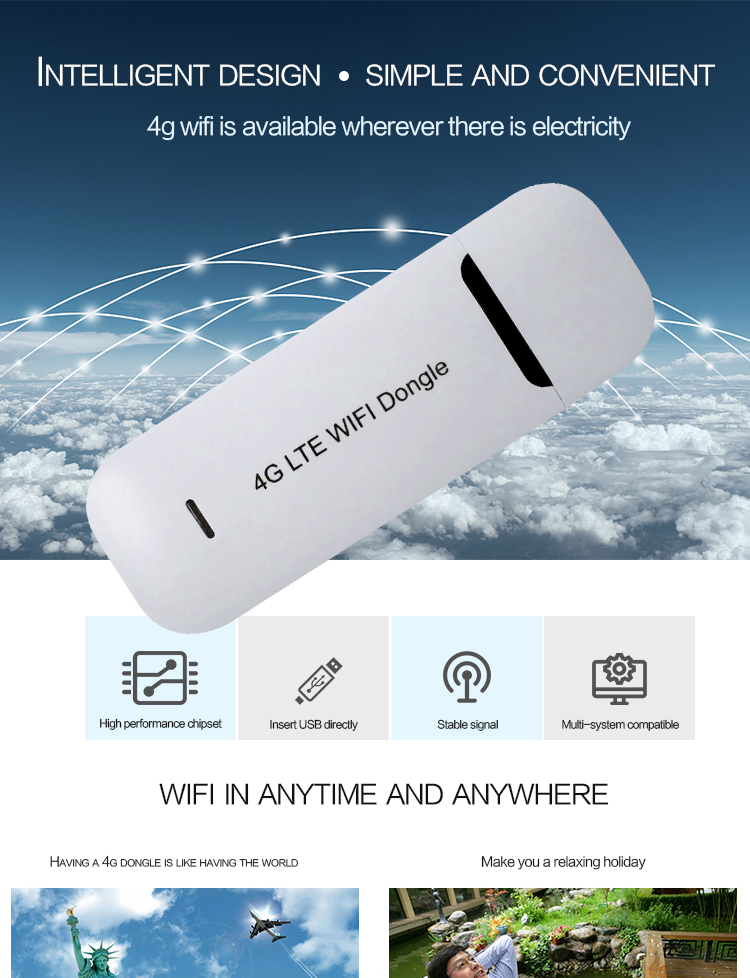

Pictures from different sides for your view:
Exhibitions:
Certificates:

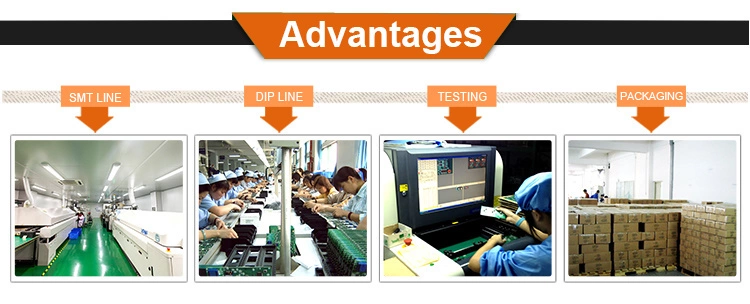

Factory Photos:
our service:
Like the device,please feel free to contact us anytime. Welcome your inquiry !
