Fruit pizza box making machine auto rotary die cutter cutting machine

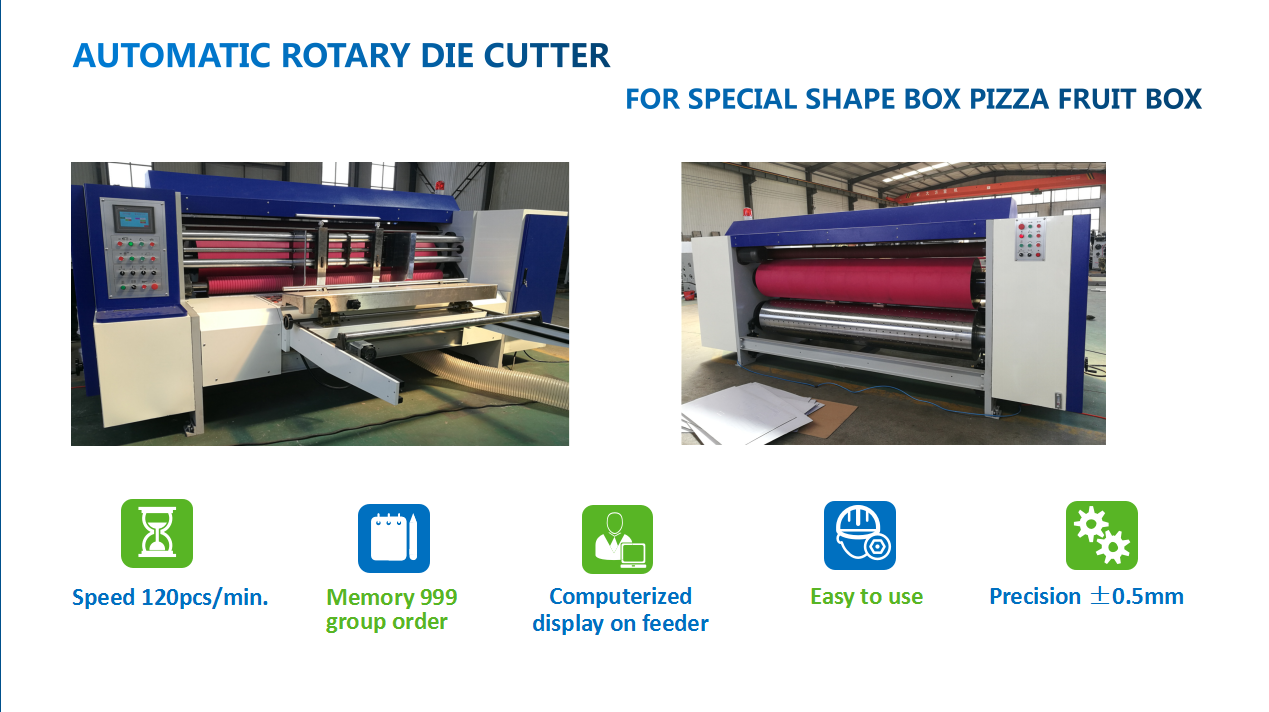

AUTOMATIC ROTARY DIE CUTTING MACHINE

Machine features:

1. Adopt the automatic lead edge paper feeding system, higher precision in feeding,higher speed, longer feeding lifetime can reach 10000pcs/h, precision is ±0.5mm.

 2. It is adjustable to satisfy the paper feeding air volume.The front baffle is manual adjusted, the side baffles are electrical adjusted.

 3. It has the rubber groove on the paper guiding rollers, avoid the damage of paper, increased the accuracy of feeding.

The electrical adjustment of back baffle has the digital facility function, adjust exactly and conveniently.

4. The die roller is made from high quality steel,balancing correction and hard chrome plating,the thickness is 30mm.The wallboard is made from quality cast iron in large processing center production, thickness is 50mm.The automatic grinding mechanism of soft rollers improve the usage of glue sheath and can grind 3 or 4 times.

5. Adopt Taiwan Maxdura anvil blanket, can die cut 10 million times.

6. Mechanical left or right movement of soft rollers about 40mm, can make the abrasion of blanket average.

7. It will prolong the using time with 6 levels grinding gears, lower noise.

8. The die roller adopts air cylinder type automatic separation device,reducing the abrasion of the glue sleeve.

9. It’s convenient to operate with the touch screen which is man-machine conversation.

10. The main engine adjusts the speed with frequency control,improving speed steadily. The complete control system combined with light,electricity and air.

11. The max. die cutting size is 1750*1300mm.

12. The min. die cutting size is 320*500mm.

13. Design speed: 150pcs/min. Work speed: 120pcs/min.

14. Motor power is 7.5kw, draught fan power is 7.5kw,weight is about 5.5T.

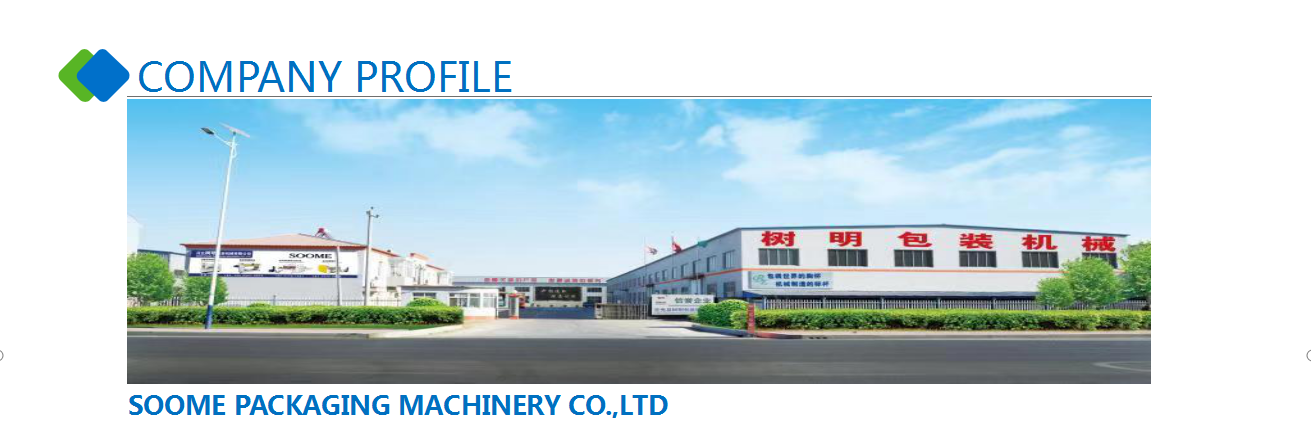

Soome machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine. Also export flexo printer slotter rotary diecutter machine, folder gluer, laminator and other carton machines.

Facing the fierce competition in corrugated packing field,our company adopt three concepts “mechatronics” “intelligent operation” and “simple usage”. We developed several new high speed automatic machines which improved the competition ability of our customers.

We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy .Our products sold to Italy, Spain, Argentina, India, Pakistan, Germany, Egypt,Vietnam,Kazakhstan,Iran,Turkey ,Russian ,and so on.

Wish we unite in a concerted effort for the beautiful future!

1. Q: Are you a manufacturer or trading company ?

   A: We are a SOOME group. Have two companies. One is a factory specially producting corrugated carton machines. Another is trading company can deal with large range of products.




2. Q: How can you assure your machine quality ?

   A: 1) We have QC to check the materials and parts before we put them into our warehouse.

   2) In the production, workers will install well and if have problem, will change and talk with engineer to solve / change quality problem.

   3) After machines finished, our QC will check and test the machines to run long time, assure machine no problem.

   4) Sales will check the machine details as per the contract with customers.




3. Q: What service can you do ?

   A: 1) We can offer parts of the machine free within 1 year if any broken, expect the quick ware parts.

   2) Can send engineers to customer factory for installation and training.

   3) If customer has any questions or help needed, can call sales to help solve problem anytime. Online service is 24hours.




4. Q: Do you attend exhibition ?


       A: Yes, we attend the exhibitions every year. In Shanghai or Dongguan and Dongguang in China. Before your coming, can contact us to ask for the          booth no. We are glad to meet you on exhibiton.

  5. Q: Can visit your factory ?

      A: You are always be welcomed to visit our factory.
