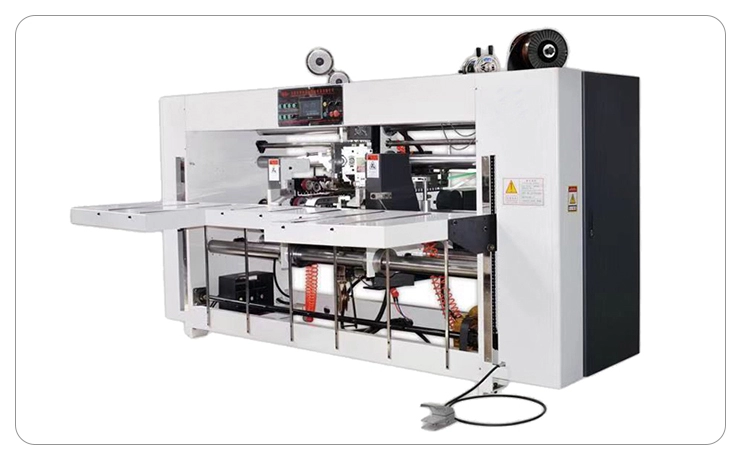

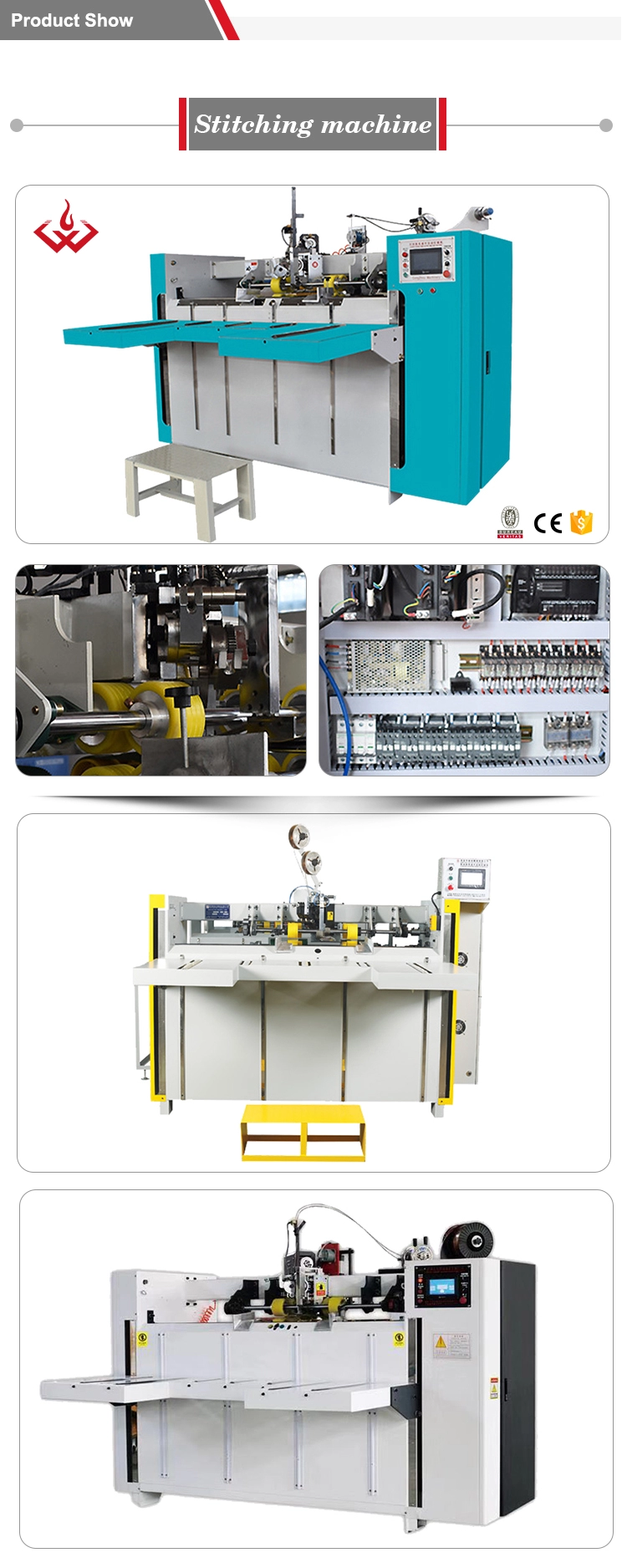

semi automatic high speed carton box servo type stitching machine

Introduce:

Double servo semi-auto stitching machine is latest improved product base on normal semi-auto stitching machine. The whole drive and running part adopt two pieces servo motor to drive machine running. The feeding part, stitching head and back baffle also adopt servo motor. When adjust back baffle through touch screen to operate, accurate, fast and convenient, needn’t worker take rule to adjusting. Improve the disadvantage of normal stitching machine used gear and bear to drive machine running, reduce the machine failure, prolong the machine use life. The stitching machine is the idea equipment in carton factory.

Features:

1. Adopts Japanese servo mechanism and Taiwan touch screen

2. Rubber wheel be adjusted by motorized, easy to adjust, more personal.

3. Single/, double// and strengthen nail // /  / // are available, be finished one time, it can meet different requirements of different clients.

4. It can change size only one minute, fast, needn’t experience.

5. Feeding part automatically counting, sending and bundling.

6. Human-machine operation panel, easy to operate, display the trouble locate and easy for maintenance.

7. Automatic alarm when nail is over. (to avoid nail sick or less nail).

8. With automatic counting function, the finished products can be conveyed to the end of delivery part depend on set quantity (1-99), easy for bundling.

9. Only need two operators from semi-produce making to final products assortment consequently reducing cost of human resources and easy to operate.

Technology Parameters:
