stitching machinenail box machinebox stapler machinecarton stitching machinecarton machine
L/CT/TD/P

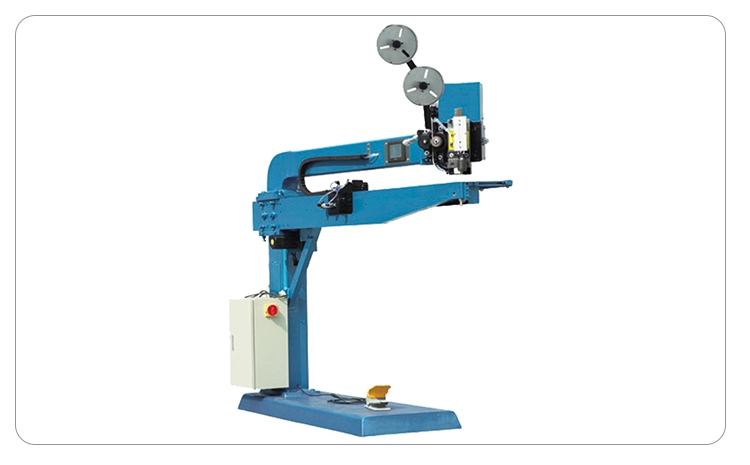

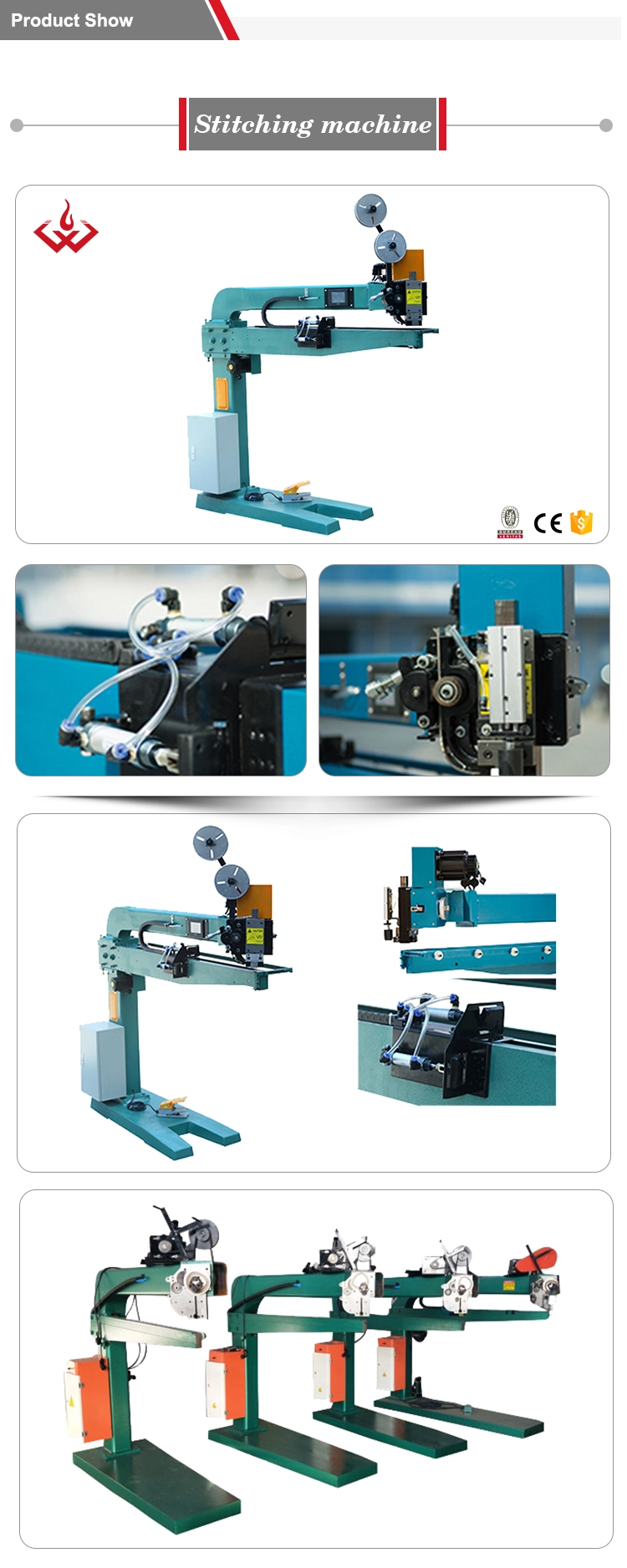

Instruction of machine
Function:
1.This stitcher machine use the advantages of servo motor and driver to release sudden stop and sudden start, it replace the machine clutch and electrical clutch, also improve the stitching precision and use lift.
2.Double servo and single type option, speed is adjustable, so it is no requirement to operator’s skill.
3.Stitching head simple and easy to maintains, adopt cam revolving transmission, stitch head use alloy blade, rod use bearing connect rod, can reduce friction, prolong using life.
4.Paper feeding part use servo controller, accurate pitch of nails, no requirements to operator.
Main Technology Parameters:
| Model | DXJ-1200 | DXJ-1400 |
Length of the arm | 1200mm | 1400mm |
High | 1600mm | 1600mm |
Seat length | 1330mm | 1500mm |
Stitching speed | 150-450times/min | |
Stitching thickness | 3ply, 5ply, 7ply corrugated carton box | |
Applicable stitching wire | 2.25mm*0.75mm&1.80mm*0.59mm(w*h) | |
Motor power | 0.37kw | 0.37kw |
Size(mm) | 2100×650×1600mm | 2100×650×1600mm |
Weight(about kg) | 450 | 500 |
