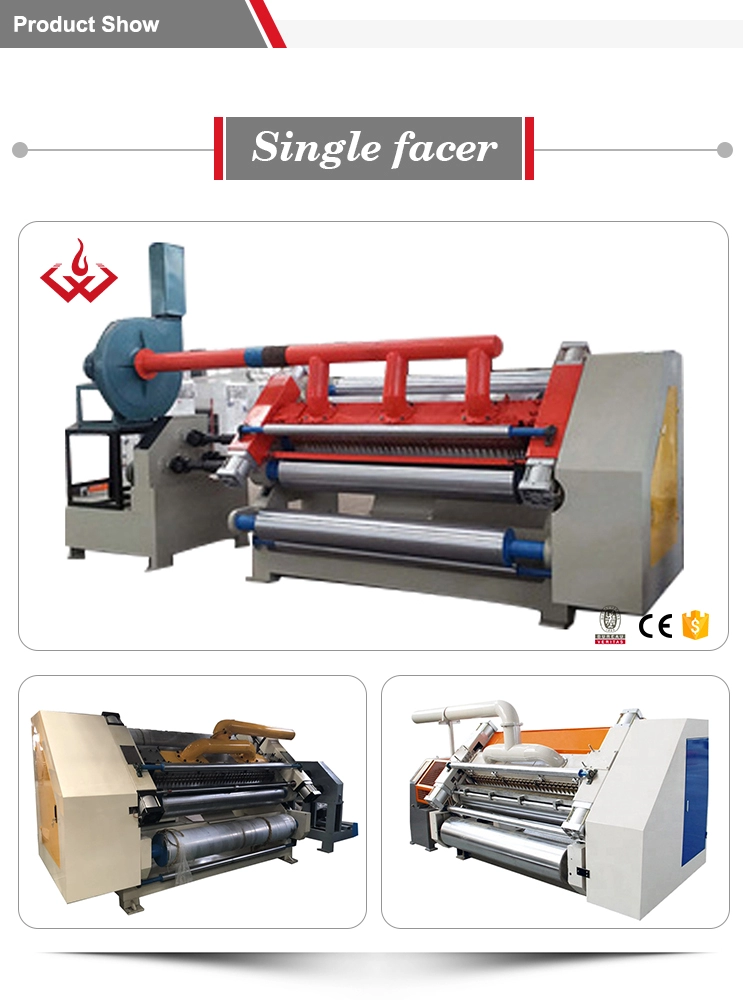

corrugated carton paper board production line single facer machine
Introduction:
Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.
Characteristics:
1. Cover vacuum suction.
2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. No gear transmission.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.
6. Manually regulate or electrically regulate the display device.
7. Lubricated by high temperature lubricate grease.
8. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.
9. Pressure roll is medium- frequency quenched and chrome-plated.
10. Width 1400mm~2000mm.
11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.
Technological Parameters:
Heating method : Oil heating / Steam heating/electrical heating
Compress-air pressure: 0.4-0.9MPa
Flute type: Standard flute UVE Flute
Standard spec.: A,B,C,E,F
For other type and model, we can produce as customer’s requirement.
Roller material: 48CrMo alloy, Heat treated
Technology parameters:
Model | SF300-1400 | SF300-1600 | SF300-1800 |
Effective width | 1400mm | 1600mm | 1800mm |
Flute roller diameter | 300mm | 300 | 300 |
Design speed | 80m/min | 80m/min | 80m/min |
Working speed | 60m/min | 60m/min | 60m/min |
Heating type | Steam or electric | ||
Application medium paper | 80gsm-170gsm | ||
Flute type | UV, A, B, C, E, F, D | ||
Power | About 20kw or 60kw | ||
