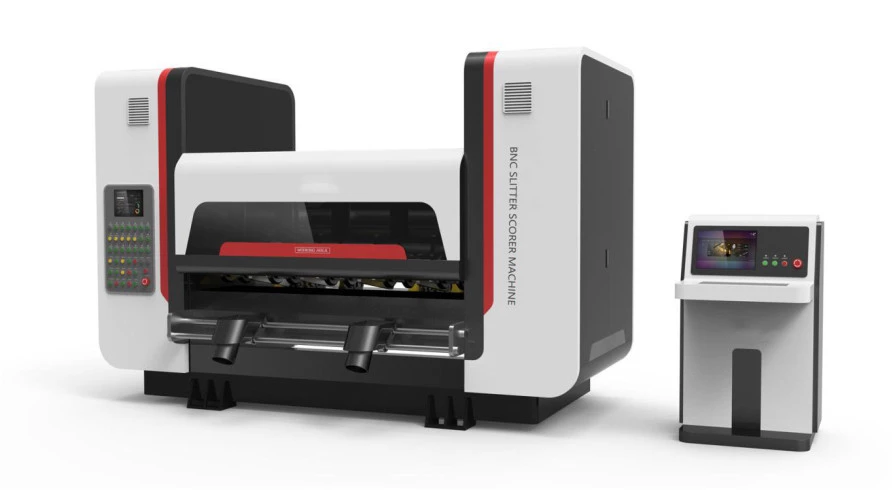

China professional servo type computer thin blade slitter scorer slitting creasing machine zero pressure
Technical Parameter:
Type | NCFY1800 | NCFY2000 | NCFY2200 | NCFY2500 |
Slitter | 5-7 blades | 5-7 blades | 5-7 blades | 5-7 blades |
Scorer | 8-12 scores | 8-12 scores | 8-12 scores | 8-12 scores |
Max. Slitting Width | 1850mm | 2050mm | 2250mm | 2550mm |
Min. Slitting Width | 135mm | 135mm | 135mm | 135mm |
Min. Scoring Width | ||||
Common | 128mm | 128mm | 128mm | 128m |
0 Scoring | 0mm | 0m | 0mm | 0mm |
Max. Line Speed | 200m/min | 200m/min | 200m/min | 200m/min |
Machine size(mm) | ||||
Common | 3680*1350*2340 | 3880*1350*2340 | 4080*1350*2340 | 4380*1350*2340 |
0 Scoring | 3680*1680*2340 | 3880*1680*2340 | 4080*1680*2340 | 4380*1680*2340 |
General Motor Power | 16.25KW | 16.25KW | 20.25KW | 20.25KW |
Features:
-High quality industry computer and PLC equipped composing the CNC system
-High quality linear guide and high precision ball screw system guarantee the slitting and scoring accuracy in 0.50mm.
-A memory of 999 orders, non-stop changeover or manual changeover can be realized.
-Automatic synchronize with the corrugator and can also get in line with manufacture management system.
-Quick changeover within 3 to 8 seconds.
