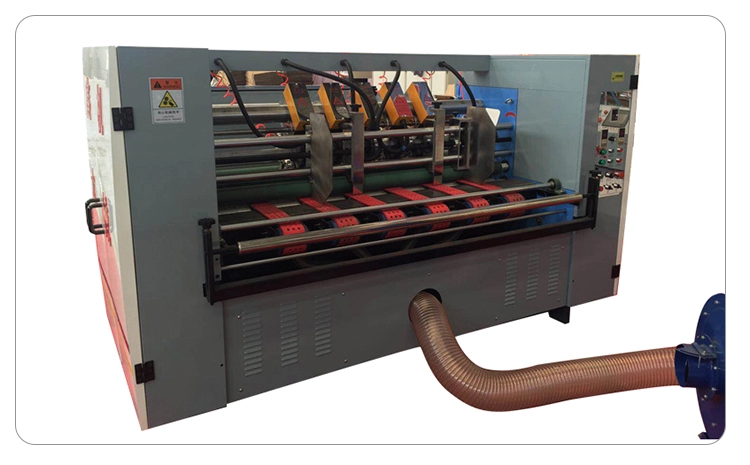

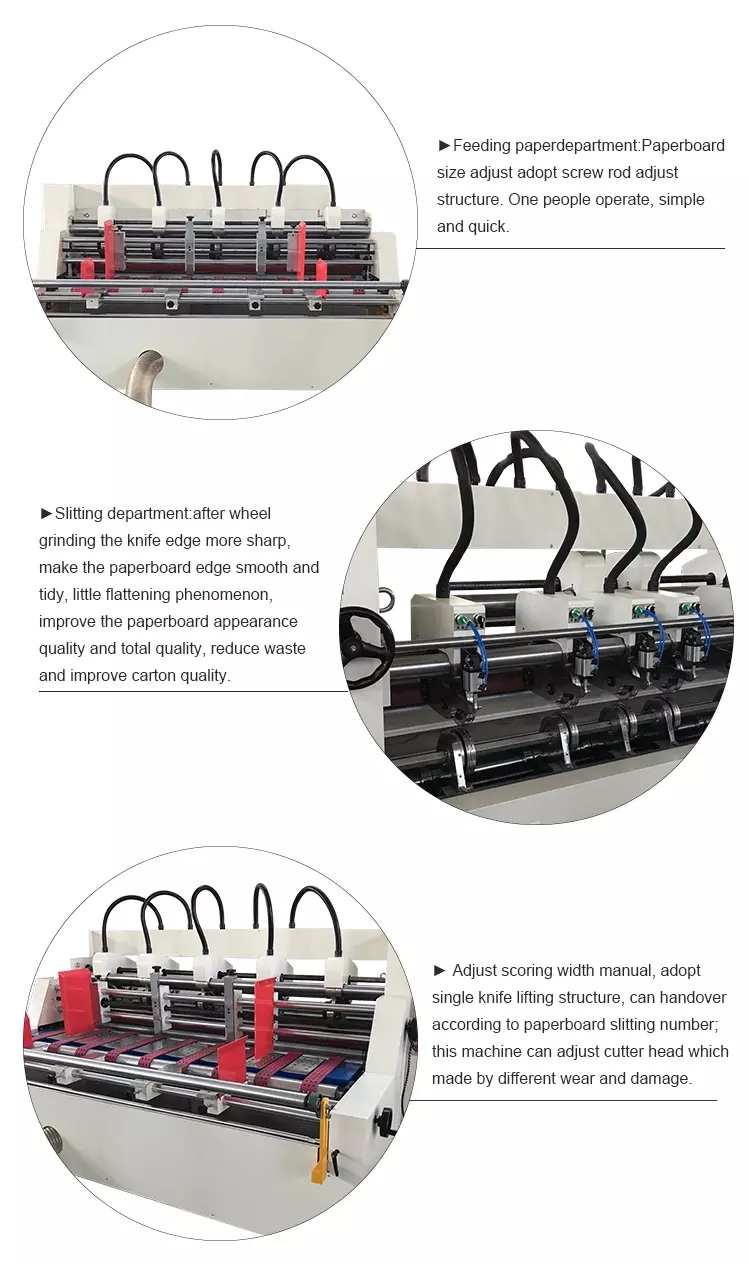

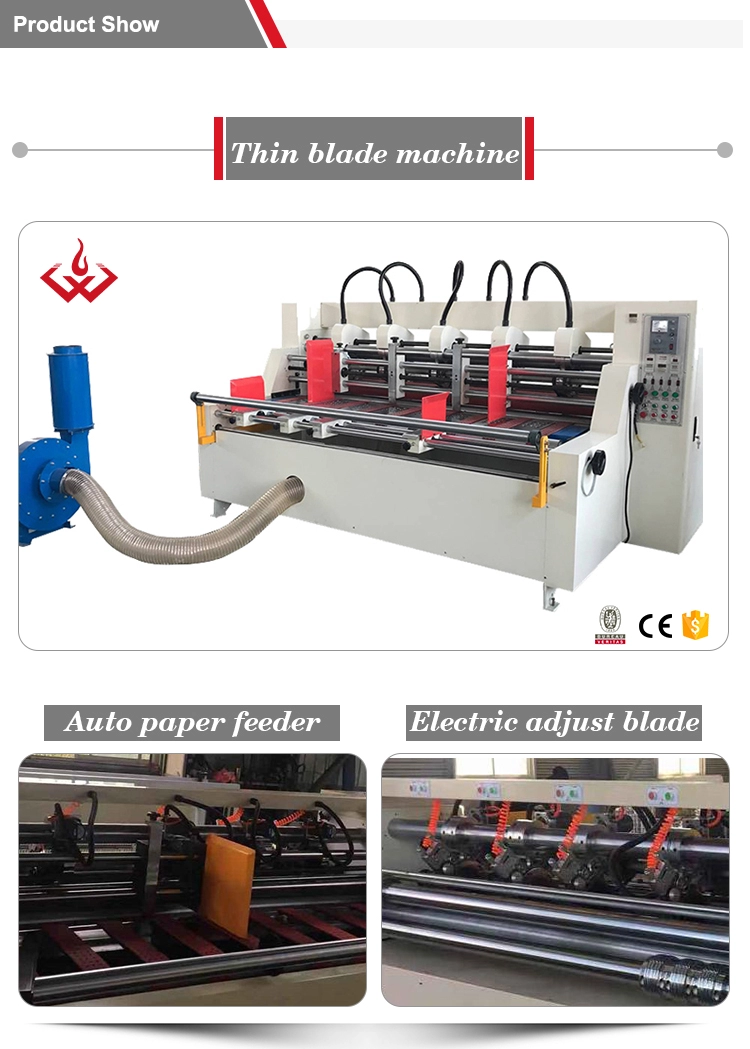

Belt feeder slitter scorer machineMain Features:
1.Can set the qty. of paperboard, automatic stop the feeding after finishing.
2.Auto suction paper feeding, assured the safety of workers and decreased the working load.
3.Suitable to a large scale paperboard machining.
4.Three types of blade adjusted methods by manual / electric /automatic for optional .
5.Slitting part: adopt high quality tungsten steel blade, sharp and long work life, slice more tidy, non-pressing and non-burr.
6.Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard to 260mm for small paper.
7. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
8.Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
9.Grinding part: adopt automatic and manual two kinds pneumatic grinding type for option, it could be grinding when working, improved work efficiency.
Main configuration:
1. Can set the qty. of paperboard,automatic stop the feeding after finishing.
2. Auto belt feeding,assured the safety of workers and decreased the working load.
3. Suitable to a large scale paperboard maching.
4. Adopt high quality tungsten steel blade,sharp and long work-life,slice more tidy,non-pressing and non-burr.
Technical Parameters:
Model | 2500mm | 2200mm | 2000mm |
Max. Feeder size | 2400mm | 2100mm | 1900mm |
Min .width of slitting | 125mm | 125mm | 125mm |
Min .length of slitting | 350mm | 350mm | 350mm |
Min . distance of creasing | 40mm | 40mm | 40mm |
Qty for Slitting knife | 4 group | 4 group | 4 group |
Qty for creasing wheel | 6 group | 6 group | 6 group |
Max speed | About 80m/min | About 80m/min | About 80m/min |
Available paperboard thickness | 3-11mm | 3-11mm | 3-11mm |
Power | 7.5kw | 7.5kw | 5.5kw |
