Cellular glass

Product properties:

1-Non combustible

Cellular glass can not burn or combustion-supporting, in event of fire, it can neither release smoke or toxic gas, nor propagate flame. Its non combustible (Class A1)

2- Water proof

It has perfact waterproof property due to base material is glass, and composed by hermetically sealed glass cells.

3- Vapor tight

Cellular glass is composed by hermetically sealed glass cells, with excellent vapor tight, it can not penetrate through by vaporous water or other gases.

4- Ecological

Cellular glass is environmentally friendly inorganic product, processing with no hazardous additive, contains no ozone depleting propellants, without VOC or volatile substance, can be recycled and reused, is not damage soil or underground water.

5- Vermin , pest and botany

Cellular glass is norganic no basis for nesting, breeding, also it is rat bite proof, plant roots can not pierced this product.

6- Stable chemical property

It remains the chemical stability properties of glas such as oil-resisting, alkali-resisting, organic solvents resisting, and resist to almost all the acids. No destruction from aggresive mediums or air.

7- High compressive strength

Cellular glass has high compressive strength even with long term loads due to its cell geometry.

8- Dimension stable

Cellular glass has low expansion coefficient, comparable to steel and concrete. It neither shrinks nor swells under temperature cycling, no warping, buckling or creep.

9- Easy to process

Cellular glass is easy to cut, shape, install at site, and it can be prefabricated as per design. With simple tools like saw blade or hand saw, it can be cut to any desired shape.

10- Excellent acoustical coefficient

Due to structure of thousands tiny uniform hermetically sealed cells, it has strong absorption for sound wave, effectively reduce the noise.

11- Wide service temperature

Cellular glass service temperature range from -268°C to 480°C， meeting the thermal insulation requirement in construction and industry.

12-Perfect insulation property

Cellular glass have low thermal conductivity, it preserves permanent insulation performance.

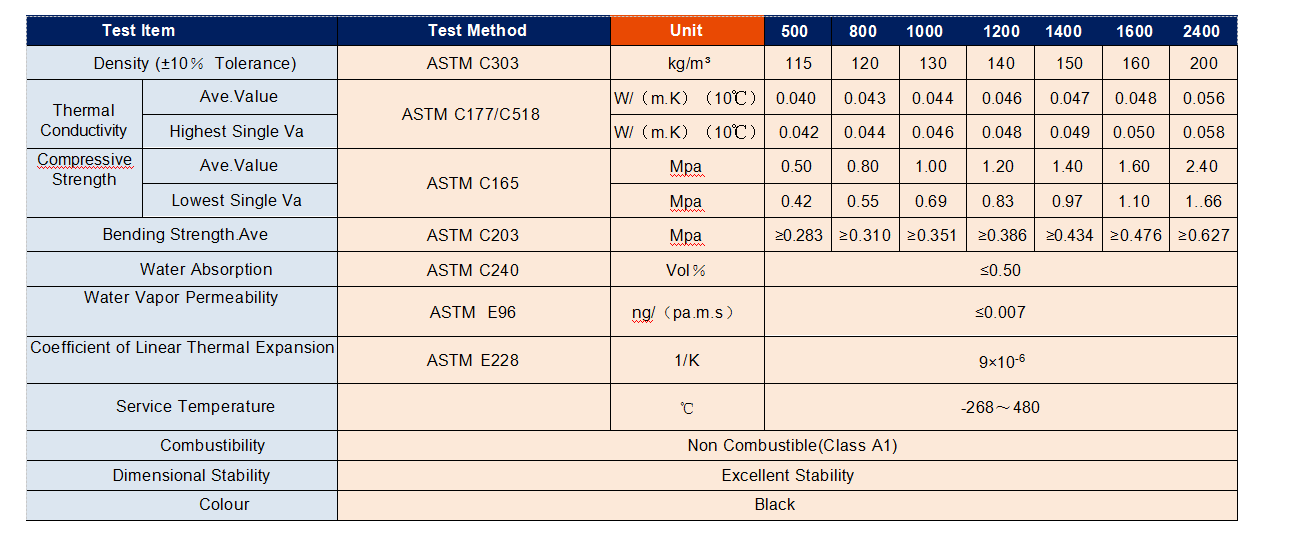

Technical data:

Application:

It's commonly applied in insulation projects such as tank and tank base, pipeline, vessel, equipment, cryogenic ship,etc.  for petroleum, chemical, refrigeration, underground projects, ship building, national defense, and residential construction industries. It can be applied in severe environment like low & cryogenic, hot temperature, underground, outdoors, flammable, wet, and chemical etc.

Standard and Certifications:

1- ASTM C552 Standard specifiction for cellular glass thermal insulation,

2- ISO 9001 Quality management system certification,

3- ISO 14000 Environmental management system certification,

4- OHSAS 18000 Occupational health and safety management system,

5- China classification society environmental management system certification,

6- China classification society quality management system certification,

7- China green building materials certification,

8- DNV GL classification society certification,

9- GOST Russia market access mandatory security certification.
