Membrane Biogas Upgrading System

Biogas Upgrading System with Membrane for Biogas Purification

Biogas Upgrading System

Biogas is a renewable energy source and mostly produced from anaerobic digestion (AD). Biogas composition varies with the biomass digested and contains mainly methane (CH4) and carbon dioxide (CO2), as well as traces of hydrogen sulfide (H2S), ammonia (NH3), hydrogen (H2), nitrogen (N2), carbon monoxide (CO), oxygen (O2). Membrane technology as purification process is a relatively recent but very promising technology. Also, hybrid processes where membranes are combined with other processes are believed to have lower investment and operation costs compared with other processes.

Biogas Upgrading System Specification

• Biogenic Methane Index: Over 97% or recovered in bio natural gas quality

• Methane Recovery: Over 96%

• Mode to utilize Biomethane: CNG or Gas Network

• Unit Energy Consumption: 0.15-0.25 Kwh/Nm3 Methane

• Operating Pressure: Medium or Low Pressure, 5-10 or 10-20 Bar (According to the product configuration)

• Environmental Benefits: Minimum Greenhouse Gas Emissions

System Compostion

Pictures

Membrane Technology

For the Membrane we choose EVONIK as our partner and membrane supplier. Their membrane upgrading process with SEPURAN? Green delivers a constant high biomethane grade with more than 99% purity. In other words, almost all the methane is recovered in bio natural gas quality.

Evonik has developed a biogas upgrading process that makes best use of the membranes' separation properties: Through skillful connection of SEPURAN? Green membranes it is possible to obtain methane with a purity level of up to 99% from the crude gas. Just one compressor is needed.

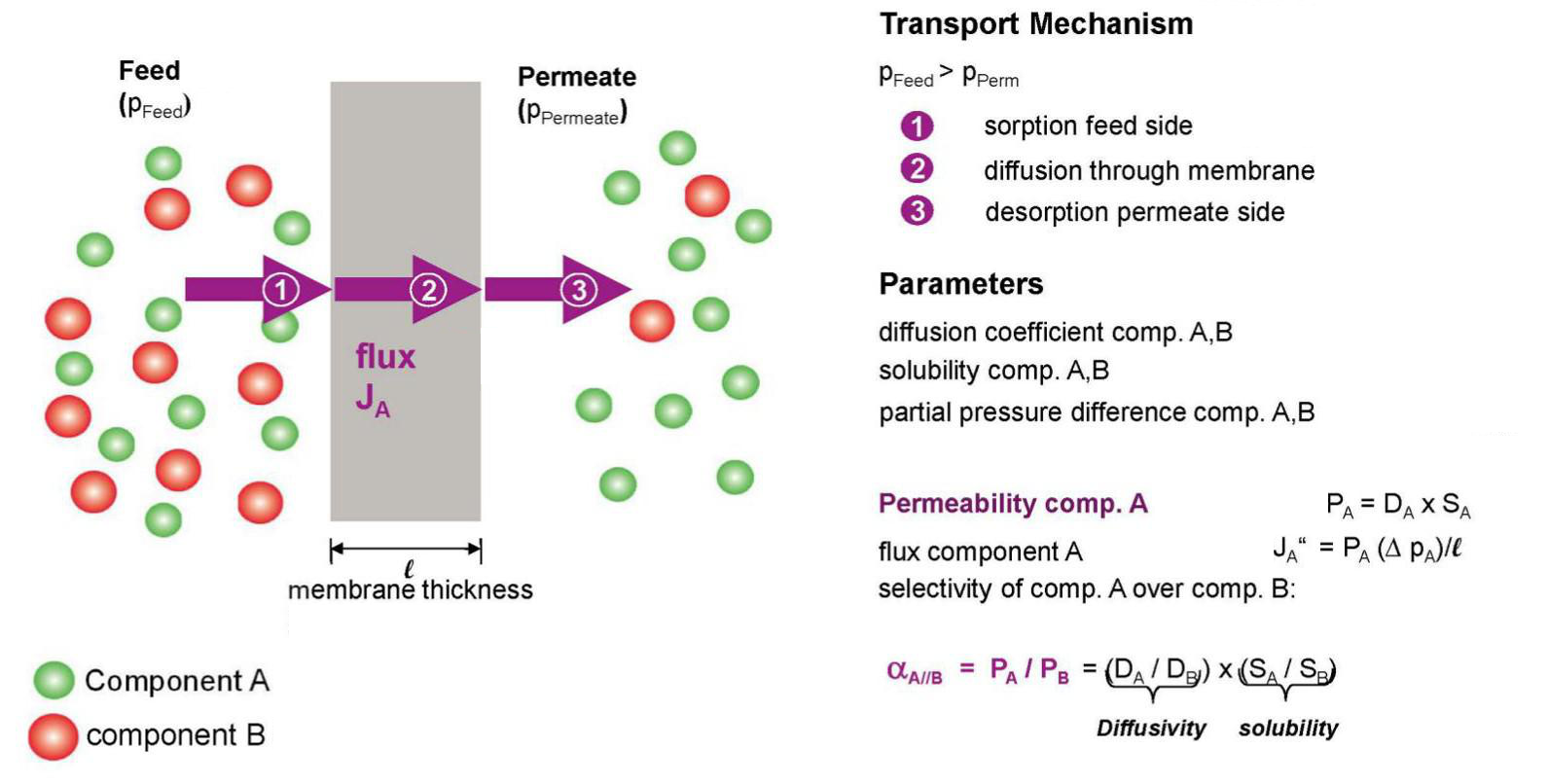

SEPURAN? Green membranes have the highest CO2/CH4 selectivity and are therefore a superior technology for upgrading biogas. This selectivity of the membranes enables the production of high purity biomethane with superior methane recovery. This distinguishes the Evonik membranes from other membranes that are available.

BENEFITS OF SEPURAN? GREEN MEMBRANE TECHNOLOGY

• Reduced operating costs

• Low Investment

• Easy to operate

• Low space requirement and short installation times

• Flexible and modular Installation

• No chemicals required

• No additional drying stage

Typical Configuration

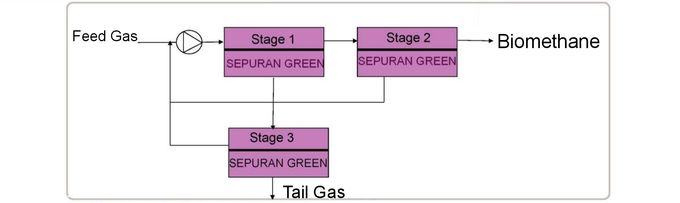

Three Stage Membrane Process — Medium Pressure

• Biogenic Methane Index: Over 97% or recovered in bio natural gas qualityMethane Recovery: Over 99%

• Mode to utilize Biomethane: CNG or Gas Network

• Unit Energy Consumption: 0.25-0.25 Kwh/Nm3 Methane

• Operating Pressure: Medium Pressure, 10-20 Bar

• Environmental Benefits: Minimum Greenhouse Gas Emissions

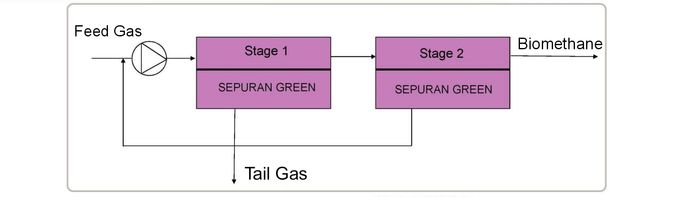

Two Stage Membrane Process — Medium Pressure

• Biogenic Methane Index: Over 97% or recovered in bio natural gas qualityMethane Recovery: Over 97%

• Mode to utilize Biomethane: CNG

• Unit Energy Consumption: 0.25-0.25 Kwh/Nm3 Methane

• Operating Pressure: Medium Pressure, 10-20 Bar

• Environmental Benefits: Lower Greenhouse Gas Emissions

Two Stage Membrane Process — Low Pressure

• Biogenic Methane Index: Over 97% or recovered in bio natural gas quality

• Methane Recovery: Over 96%

• Mode to utilize Biomethane: Gas Network

• Unit Energy Consumption: 0.15-0.20 Kwh/Nm3 Methane

• Operating Pressure: Low Pressure, 5-10 Bar

• Environmental Benefits: Lower Greenhouse Gas Emissions
