Laser Welded Core DrillWet Diamond Core DrillWet Core DrillCore DrillCore Bit
L/CT/TD/PWestern Union

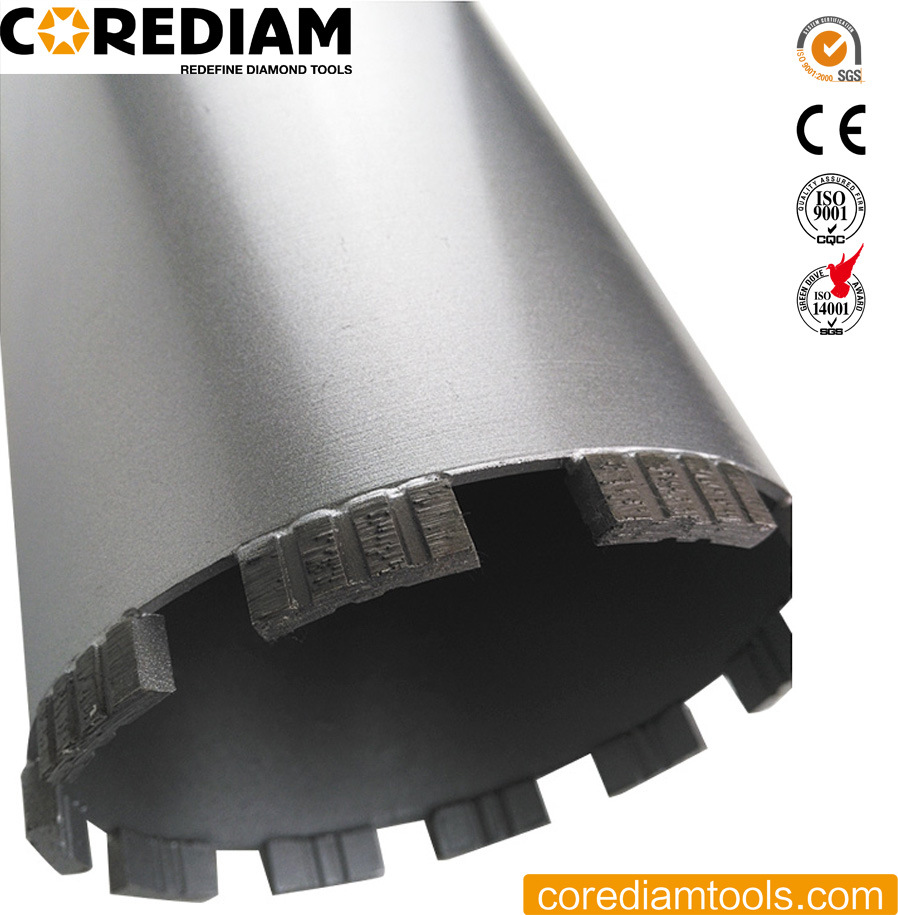

1.Laser welded diamond core drill introduction
The wet core drill is laser welded by advanced laser welding production line, which ensures the core bits have high welding strength.
Common sizes of laser welded diamond core drill are ranging 1 '' (25mm) to 14''(350mm) in size.
The core drill is used for professionally wet drilling kinds hardness of concrete, reinforced concrete.
Special turbo segments design make the segments have very excellent sharpness, achieving fast drilling.
Segments height, working length and connection type can be adjustable on your request.
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
2.Specification
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDA02545010 | 25mm | 10 | 1 1/4"-7 | 450mm |
| CWDA03245010 | 32mm | 10 | 1 1/4"-7 | 450mm |
| CWDA03645010 | 36mm | 10 | 1 1/4"-7 | 450mm |
| CWDA04245010 | 42mm | 10 | 1 1/4"-7 | 450mm |
| CWDA05245010 | 52mm | 10 | 1 1/4"-7 | 450mm |
| CWDA06245010 | 62mm | 10 | 1 1/4"-7 | 450mm |
| CWDA06645010 | 66mm | 10 | 1 1/4"-7 | 450mm |
| CWDA07245010 | 72mm | 10 | 1 1/4"-7 | 450mm |
| CWDA07645010 | 76mm | 10 | 1 1/4"-7 | 450mm |
| CWDA08245010 | 82mm | 10 | 1 1/4"-7 | 450mm |
| CWDA09245010 | 92mm | 10 | 1 1/4"-7 | 450mm |
| CWDA10245010 | 102mm | 10 | 1 1/4"-7 | 450mm |
| CWDA11245010 | 112mm | 10 | 1 1/4"-7 | 450mm |
| CWDA12745010 | 127mm | 10 | 1 1/4"-7 | 450mm |
| CWDA13245010 | 132mm | 10 | 1 1/4"-7 | 450mm |
| CWDA15245010 | 152mm | 10 | 1 1/4"-7 | 450mm |
| CWDA16245010 | 162mm | 10 | 1 1/4"-7 | 450mm |
| CWDA17245010 | 172mm | 10 | 1 1/4"-7 | 450mm |
| CWDA18245010 | 182mm | 10 | 1 1/4"-7 | 450mm |
| CWDA20045010 | 200mm | 10 | 1 1/4"-7 | 450mm |
| CWDA25045010 | 250mm | 10 | 1 1/4"-7 | 450mm |
| CWDA30045010 | 300mm | 10 | 1 1/4"-7 | 450mm |
| CWDA35045010 | 350mm | 10 | 1 1/4"-7 | 450mm |
3.Features
Manufacturer technology: laser welded
Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have resonable lifespan

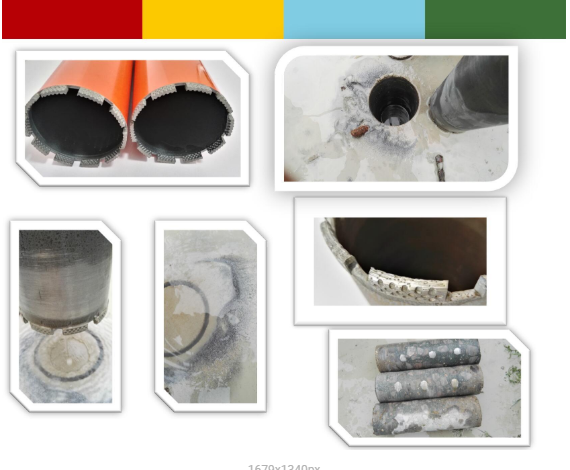

4.Quality Control&Test
5.Delivery time&Packing
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
6.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
