一、Main parts：
Serial number | name | brand | remarks |
01 | Head servo motor | Mitsubishi (original) | 1台 |
02 | Paper feeding servo motor | Mitsubishi (original) | 1台 |
03 | Synchronous servo motor | YASKAWA, Japan | 1台 |
04 | PLC, photoelectric switch and proximity switch | Omron, Japan | 1台 |
05 | Head reducer | Liming, Taiwan | 1台 |
06 | Contactor, circuit breaker,Frequency converter | Mitsubishi, Japan | |
07 | intermediate relay | Schneider, France | |
08 | Nail head group | Taiwan parts assembly | |
09 | Cylinder, solenoid valve | Yadeke, Taiwan | |
10 | touch screen | Taiwan vialink | |
11 | blade | Production of German alloy tungsten steel | Wear resistance |
12 | Bottom mould | Production of German alloy tungsten steel | Corrosion resistance |
二、detailed description：

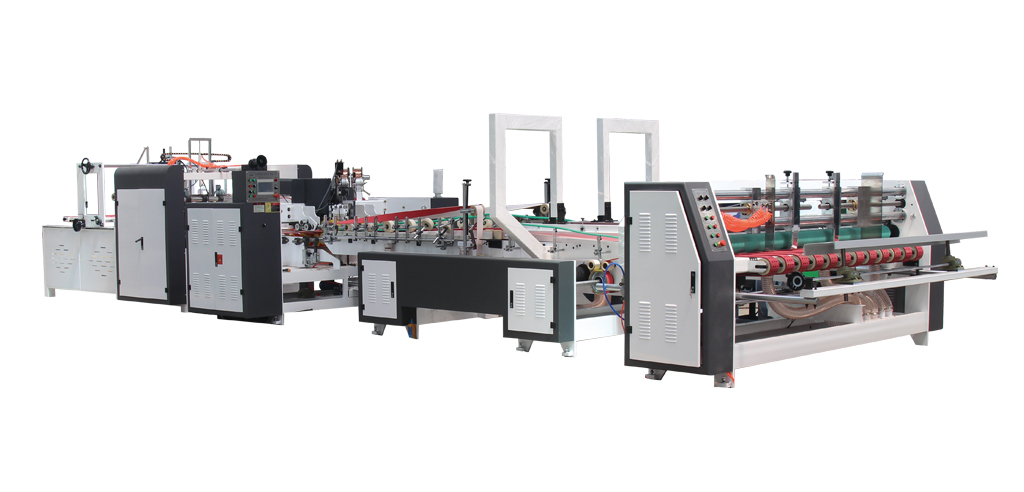

The simple automatic stapling and gluing machine is composed of paper feeding section, folding part, nail box part, counting output part and electrical control part. PLC control touch screen input data, nail box action servo motor control, simple and reliable operation. Automatic paper feeding, automatic folding, automatic correction, automatic nailing, automatic counting, automatic stacking output, synchronous adjustment before and after the whole machine, order storage, distinguishing the working defects of the box gluing machine and the nailing machine set, which makes the adjustment more convenient, fast and efficient. Advanced technology and reliable quality.
A、Paper feed section：
1、The main motor adopts frequency conversion speed regulation, the system has no noise, and the speed regulation is flexible and stable.
2、The imported porous skin is used for conveying paperboard, which is stable, efficient and accurate.
3、The paper feeding section can be electrically adjusted to meet the paper supply requirements of various specifications of cartons, which is convenient and fast.
4、It is equipped with side flapping device to ensure paper feeding is not skew.
B、Folding part
1、Linkage with the paper feeding section, frequency control, folding and paper feeding section line pressing synchronous adjustment.
2. The imported porous belt is used to transport the paperboard, with automatic folding and full adsorption, which can effectively avoid the skew, slipping and stacking phenomenon of various paperboards such as weighting box, laminating box and polishing box, so as to make the whole machine more stable and efficient.
C、Correction unit
1、There will be a shaping device behind the folding part and in front of the nailing box. In front of the nailing box, the folded carton will be reshaped and photographed again to ensure that there is no scissors opening for the nailed carton.
2、The calibration unit is driven by servo motor.
D、Nail box
1、The head of nail box is made of special material, which is wearable and not easy to be damaged.
2、The characteristic of this machine is that the head is driven directly by servo motor, and the speed is stable and accurate.
3、Two sets of 20kg large plate flat wire automatic feeding device are used in the nailing line, which can reduce the number of wire changing and improve the production efficiency.
4、This machine can carry out multi-function operation of single nail, double nail, reinforcing nail and head and tail nail.
5、The nail speed can reach 600 nails per minute.
E、Counting and stacking output unit
Complete the carton, and then pat, count, stack and send out the carton automatically.
三、main parameter：
Model and parameters | QDJ-2600（No beat） | QDJ-2600（ beat） |
Maximum size（A+B）X2（mm） | 2400mm（stick）2600mm（nail） | 2600mm |
Minimum size（A+B）X2（mm） | 780mm | 1060mm |
Maximum size（C+D+C）（mm） | 1000mm | 1000mm |
Minimum size（C+D+C）（mm） | 340mm | 510mm |
Minimum swing cover C（mm） | 25mm | 25mm |
Maximum swing cover C（mm） | 320mm | 320mm |
Maximum width B（mm） | 480mm | 480mm |
Minimum width B（mm） | 165mm（nail）140mm（stick）（stick） | 250mm |
Maximum length A（mm） | 820mm | 820mm |
Overall power（kw） | 20kw | 20kw |
Minimum length A（mm） | 200mm | 280mm |
Maximum height D（mm） | 650mm | 650mm |
Minimum height D（mm） | 200mm | 200mm |
Nail tongue width E（mm） | 30-35mm | 30-35mm |
Mechanical length（mm） | 12000mm | 12000mm |
Mechanical width（mm） | 3500mm | 3500mm |
Mechanical weight（T） | 7.5T | 7.5T |
Mechanical speed（Nail / min） | 600 Nail / min | 600 Nail / min |
Order number | 1-99 | 1-99 |
Nail pitch（mm） | 30-80mm | 30-80mm |
Nail box speed | 55 M / min | 55 M / min |
Gluing speed | 80 M / min | 80 M / min |
四、Parameters of stacking section：
Minimum stack width | 350mm |
Maximum stack width | 1300mm |
Minimum stack length | 460mm |
Maximum stack length | 1200mm |
speed | 120m/min |
