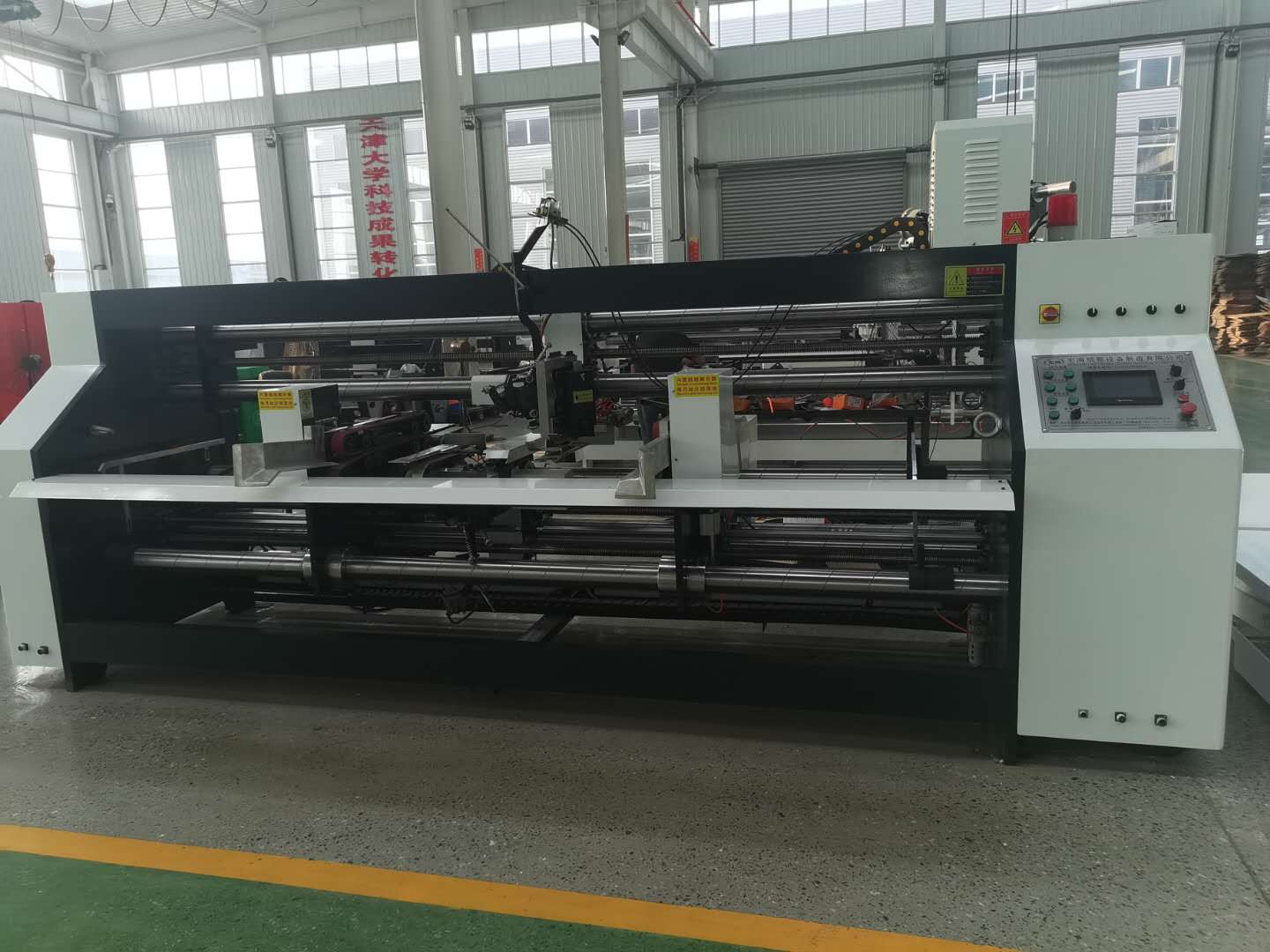

Semi-automatic large double nail box machine

 一、 Introduction of main components and functions：

★ Japan Mitsubishi imported four servo drives, which have accurate precision and reduced mechanical transmission parts, which can effectively reduce mechanical failure rate.

★ The whole control system adopts Mitsubishi PLC control system in Japan. ★ All contactors in the control box adopt Siemens brand in Germany. ★ Relay and circuit breaker adopt Schneider brand in France, and photoelectric and proximity switches adopt Omron brand in Japan. ★ The bottom die and blade are made of Japanese tungsten steel (wear resistance). ★ The whole set of nail heads are all made of special steel, and are precisely processed by computer numerical control. ★ It can be nailed with a cover box&a carton without a cover (if there is a cover box to be nailed, it must be explained when ordering machinery). ★ There is automatic counting function in the back section, and the finished products can be stacked and sent to the end of the conveying machinery according to the set quantity (1-99), which is convenient for packing and bundling. ★ Mechanical speed: 600 nails/minute. ★ One dual-purpose, single-piece nailing carton, double-piece nailing carton and irregular carton. ★ Reinforcing nails, single nails and double rows of nails can be nailed at one time. ★ The paper feeding department counts automatically, and the finished products are sent out for bundling. ★ It is suitable for small and medium-sized cartons, with fast and labor-saving stapling. ★ Adjust the nail spacing, set the automatic nail spacing by computer, and the nail spacing is 30-120mm; ★ Automatic wire feeding system, 20KG large plate of flat wire, saving time. ★ Features of this machine: The thickness of three, five and seven layers of cartons is adjusted, and the size of the swing cover of the paper pressing gap is controlled by computer, which is fast and accurate. ★ This machine adopts four servo motors (i.e. two head motors and two feeding motors). ★ The protection device of voltage stabilizing transformer is isolated for the whole machine electrical appliances, which can better protect the service life of the whole machine computer electrical appliances. ★ The whole machine adopts the whole computer to automatically adjust all sizes, and quickly and automatically adjust the sizes of different models in one minute, which is fast and accurate, and can store orders. ★ Binding method: double oblique nail or single oblique nail/reinforcing nail ★ The four-servo nail box machine of this machine has applied for national patent, and the patent number is 201320093086.8; ★ This machine uses computer screen to display fault description.

二、参数说明:
