Biosafety Cabinet Class II A2HEPABiological safety cabinetsBiohazard Safety Equipment
L/CT/TWestern UnionOthers

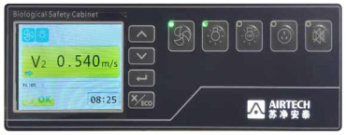

Friendly Control Panel ◆ Color LED screen, show the air velocity, time, fan station, HEPA filter life and alarm in real time. |  |
Safe and Reliable, Energy-Efficient ◆ DC fan and LED light make the operation power consumption save 30%. ◆ Intelligent auto-supply system of imported blower ensures the change of air volume less than 10% when the resistance of filter increases 50% and enhance safety. ◆ The alarm system for safe operation height is interlocked with light. At the same time light is Interlocked with sterilizing. ◆ Leak detection in cabinet, no leakage at 500Pa. ◆ UV light with set timer, safer and high efficiency. |
|
Humanized design ◆ 10°sloped front make it comfortable to operator. ◆ Negative pressure and double layers chamber around ensure non-leakage, non-pollution. Demountable circular-arc armrest can alleviate working tiredness and make it easy to transport. ◆ Front window adopts hanging lifting system (Imported from Japan) and more than 5mm thickness security glass with arbitrary positioning, high stability and convenient to sterilization when it closed. (Patent No.: ZL97235425.5) ◆ Front window can be cleaned all-over, solving the problem which front window can’t be cleaned inside ◆ Moveable working table with handle and support make it easier to clean collecting tank. ◆ There are two anti-splash spare sockets and four service port in the cabinet. ◆ Movable stainless steel worktable 4 liter capacity stainless steel collecting tank with below down valve, easy to collect water, cleaning and disinfection. ◆ Non-obstructive air return mode in the front suction channel (Patent No.: ZL200520140353.8). ◆ The adjustable leveling foot is without exposure thread. |
|
ULPA filters ◆ USA HV ULPA Filter Medium, provide 99.9995% typical efficiency for particle size over 0.12 microns, and the materials is glass fiber. |  |
ECO mode and power off memory function ◆ You need not to turn off BSC when stop experiment. You can close front window and BSC will turn to ECO mode to ensure cleanliness in working area. If opening front window, BSC will turn to normal mode immediately. ◆ If losing power unexpected, BSC will return to the station which before losing power when regain power. This will ensure the safety of operator. |
| Model/Item | 1004IIA2 | 1304IIA2 | 1604IIA2 | 1804IIA2 | |
| Nominal Size | 1 meter(3') | 1.3meter(4') | 1.6meter(5') | 1.8meter(6') | |
| Filtration Efficiency | ULPA: ≥99.9995%, @0.12μm | ||||
| Downflow Velocity | 0.35 m/s(68.88fpm) | 0.33 m/s(64.94fpm) | |||
| Inflow Velocity | 0.55m/s(108.24fpm) | 0.53 m/s(104.30fpm) | |||
| Noise | 58~65 dB(A) | ||||
| Vibration | ≤5 μm(center of tabletop) | ||||
| Power Supply | AC220V，1φ，50Hz | ||||
| Opening Height | 200 mm | ||||
| Personnel Protection | A. Total colony in impaction sampler ≤10CFU./time | ||||
| B. Total colony in impaction sampler ≤5CFU./time | |||||
| Product Protection | Total colony in culture dish ≤5CFU./time | ||||
| Cross-contamination Protection | Total colony in culture dish ≤2CFU./time | ||||
| Max Consumption(with spare socket) | 1.65 kVA | 1.75 kVA | 1.85 kVA | 1.85 kVA | |
| Rated Power(without spare socket) | 0.33 kVA | 0.43 kVA | 0.53 kVA | 0.53 kVA | |
| Weight | 260 kg | 300 kg | 360 kg | 400 kg | |
| 1004*630*630 mm | 1304*630*630 mm | 1604*630*630 mm | 1804*630*630 mm | ||
| Work Dimension | (39.5''x24.8''x24.8'') | (51.3''x24.8''x24.8'') | (63.1''x24.8''x24.8'') | (71.0''x24.8''x24.8'') | |
| (W1XD1XH1) | |||||
| 1200*795*2050 mm | 1500*795*2050 mm | 1800*795*2050 mm | 2000*795*2050 mm | ||
| Overall Dimension | (47.2''x31.3''x80.7'') | (59.1''x31.3''x80.7'') | (70.9''x31.3''x80.7'') | (78.7''x31.3''x80.7'') | |
| (WXDXH) | |||||
| LED 24.5 w x ① | LED 31 w x ① | LED 36 w x ① | LED 36 w x ① | ||
| Size and Qty. of | |||||
| Light | |||||
| 18 w x ① | 30 w x ① | 36 w x ① | 36 w x ① | ||
| Size and Qty. of | |||||
| UV Light | |||||
| Lumin. | ≥900 Lx | ||||
| Cabinet Materials | High-grade steel and lacquered in ivory | ||||
| Working Area Materials | SS304 fully finished | ||||
| Air Direction | Top out | ||||
| Plug Style | Chinese Type(AC 250V/10A) | ||||
| Qty. of Sapre Socket | Chinese Type(AC 250V/3A) 2 units | ||||
