Welded Gabions/Gabion Stone Fence

ID:20111740671

Construction & Decoration Building Structural Material

FOB Price:US$ 15.000 / Set(s)

MOQ:100.00 Set(s)

Product Keywords:

stone gabionGabion stone fenceWelded gabions

Payment Method:

T/TWestern UnionPaypal

Product Category

Construction & Decoration > Building Structural Material

Trademark

Product Package

Specification

Place of Origin

HEBEI

Port

TIANJIN

Gabion Wire Mesh Rock Retaining Walls Stone Baskets

Gabion basket is a cage made of Hexagonal wire, the wire diameter is based on the size of hexagonal. If use metal coated wire, the diameter to be 2.0mm-4.0mm,If use PVC coated wire, The OD to be 3.0-4.5mm, the wire diameter of frame edge is larger than hexagonal wire, In recent years, an emerging zinc-aluminum alloy gabion basket which coated with zinc and aluminum and Mixed rare earth alloy, is more Corrosion resistance than zinc coated gabions.

Gabion Basket

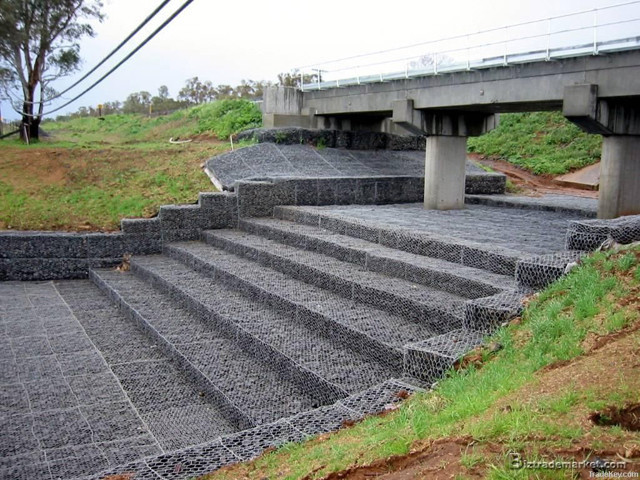

A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.

Gabion Basket
Length (m)	Width (m)	Height (m)	Number of Cell(each)	Volume m3
2.0	1.0	1.0	2.0	2.0
3.0	1.0	1.0	3.0	3.0
4.0	1.0	1.0	4.0	4.0
2.0	1.0	0.5	2.0	1.0
3.0	1.0	0.5	3.0	1.5
4.0	1.0	0.5	4.0	2.0
2.0	1.0	0.3	2.0	0.6
3.0	1.0	0.3	3.0	0.9
4.0	1.0	0.3	4.0	1.2

The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc

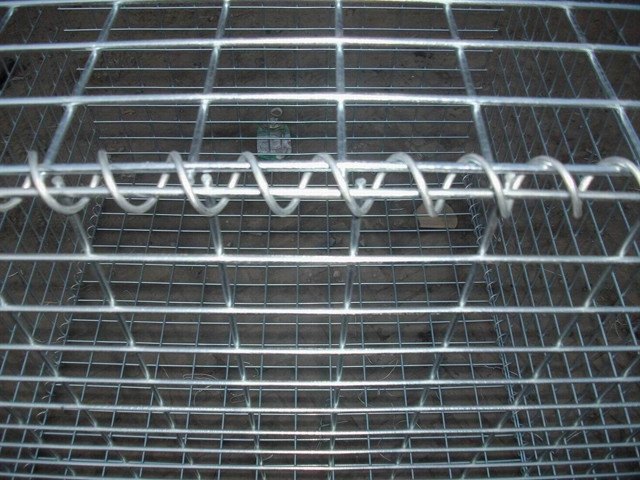

Gabion gabion box gabion mesh 9.jpg

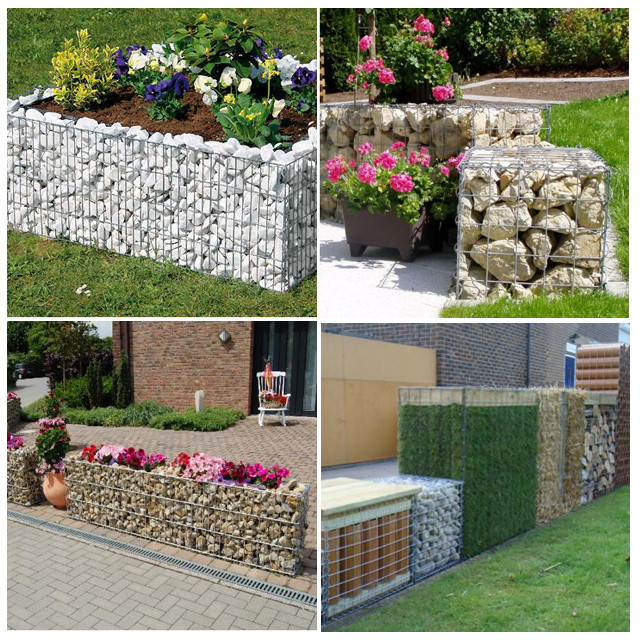

Gabion gabion box gabion mesh 5.jpg

Gabion Mattress

A double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions;

gabion mattresses are generally used for riverbank protection and channel linings.

Gabion Mattress
Length (m)	Width (m)	Height (m)	Number of Cell(each)	Area m2
3.0	2.0	0.17	3.0	6.0
4.0	2.0	0.17	4.0	80
3.0	2.0	0.23	3.0	6.0
4.0	2.0	0.23	4.0	8.0
3.0	2.0	0.3	3.0	6.0
4.0	2.0	0.3	4.0	8.0

The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc

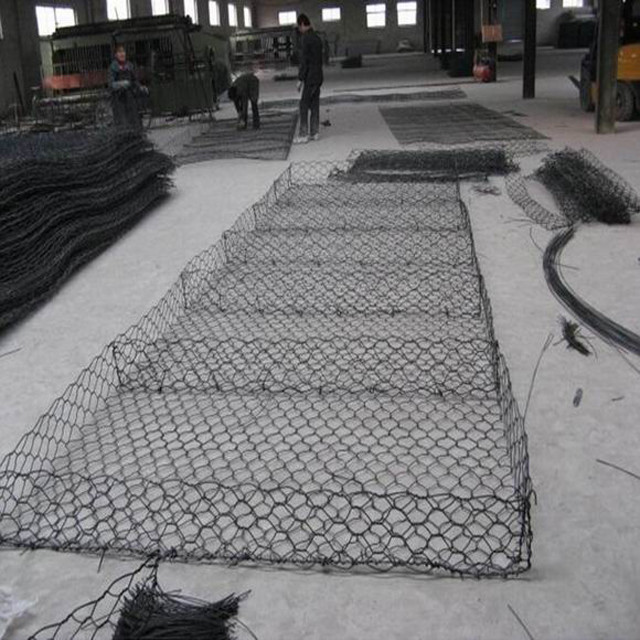

Gabion gabion box gabion mesh 1.jpg

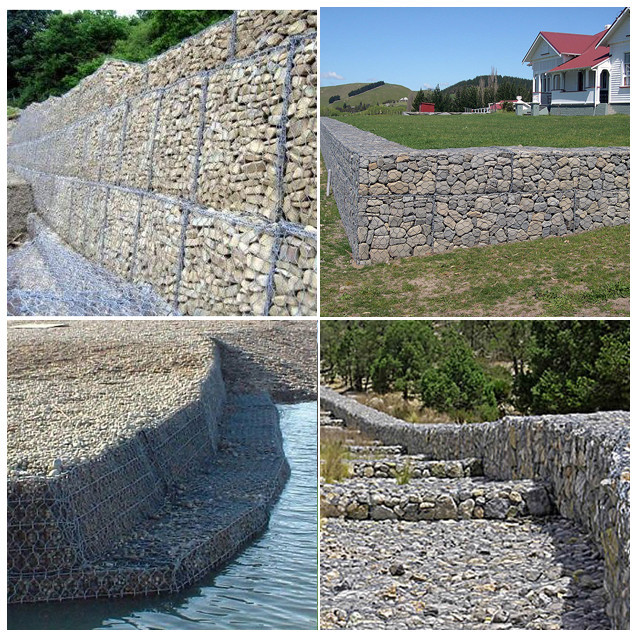

Gabion gabion box gabion mesh 4.jpg

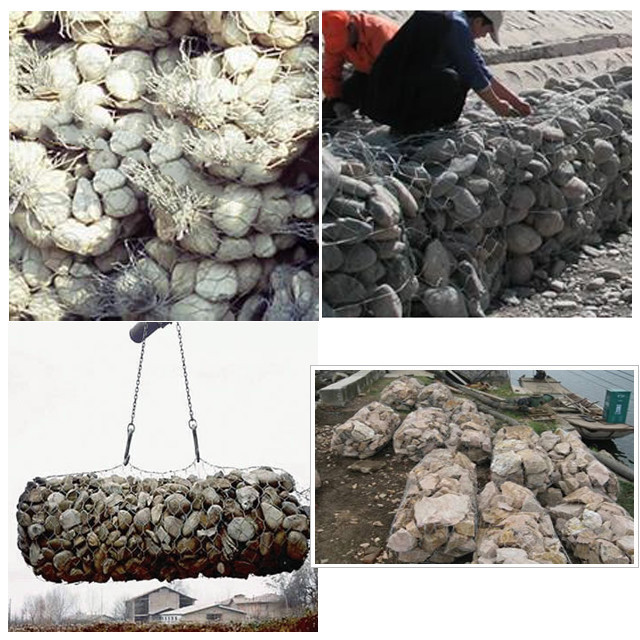

Gabion Sacks

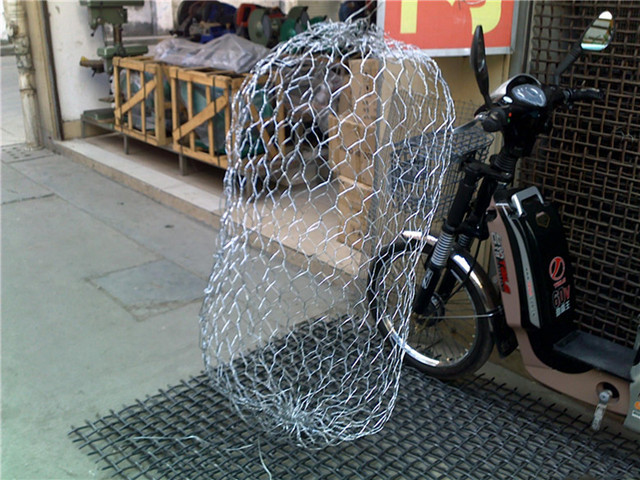

Gabion sacks are cylindrical baskets, which are good for water to seep through the structure, relieving the hydrostatic pressures, insure the earth's shear strength, well for whole structure's stable; meanwhile, saved the charge for traditional retaining drainage equipment, low down the whole cost.

Hexagonal opening (aperture):80x100mm

Wire diameter: 2.7mm

Selvedge wire: 3.4mm.

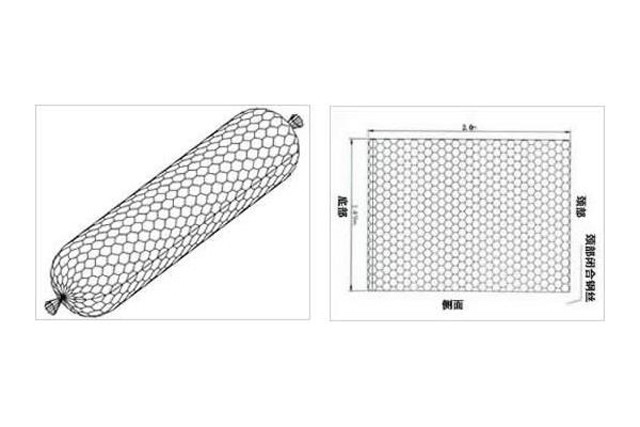

Gabion gabion box gabion mesh 3.jpg
