5km CPE long distance Wifi rangeoutdoor CPE bridge1200Mbps CPE
T/TD/PWestern UnionMoney GramOthers
2020 Hot sell Dual band 1200Mpbs 5.8G Wifi Wireless AP Outdoor CPE Bridge with POE PORT
Product Description

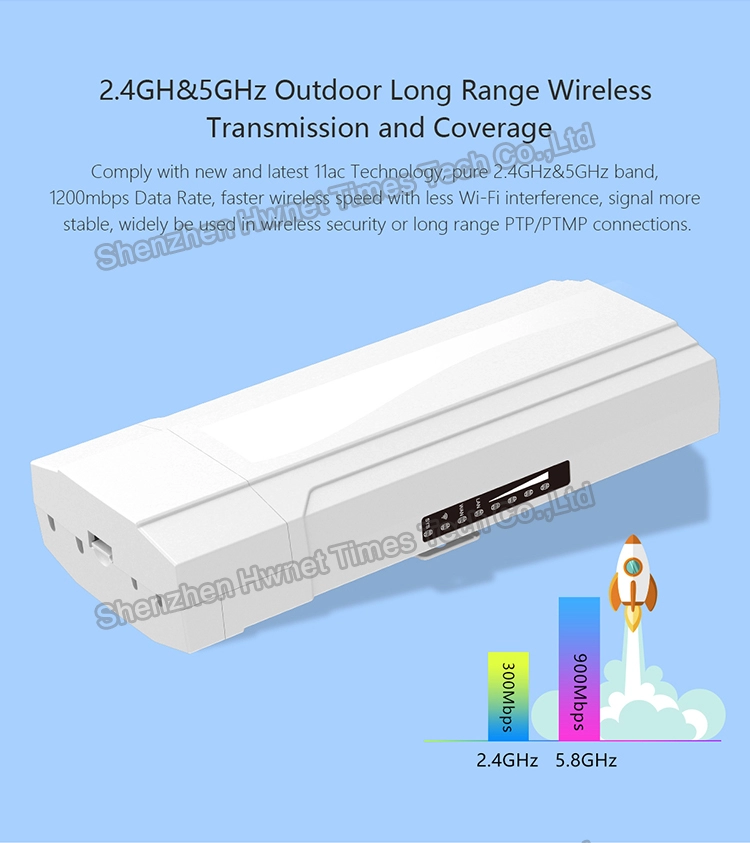

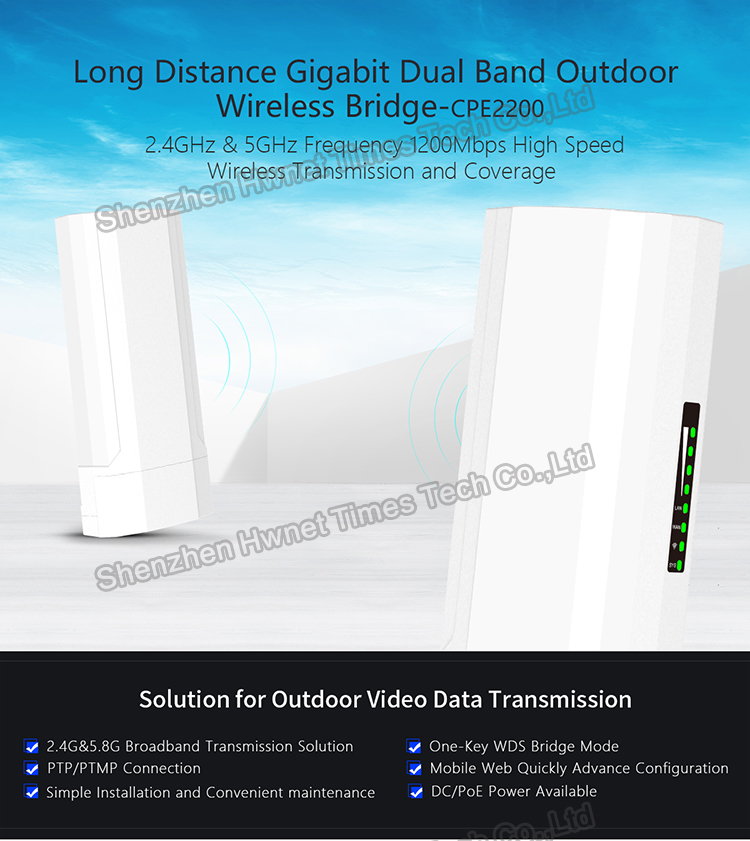

Long distance wifi bridge CPE2200 is an high power industrial 5G outdoor CPE with the next generation 802.11ac Wi-Fi standard, Qualcomm Chipset, combined 1200Mbps high speed in 5G, equipped Gigabit WAN port, it make more than 128 end users access into it and enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
Hardware: | |
Chipset | Qualcomm QCA9563+QCA9882+QCA8334 |
Standard | 802.11ac/a/n, MIMO technology |
Memory | 128MB DDR2 RAM |
Flash | 16MB |
Interface | 1 * 10/100/1000Mbps RJ45 WAN Port |
1 * 10/100/1000Mbps RJ45 LAN Port | |

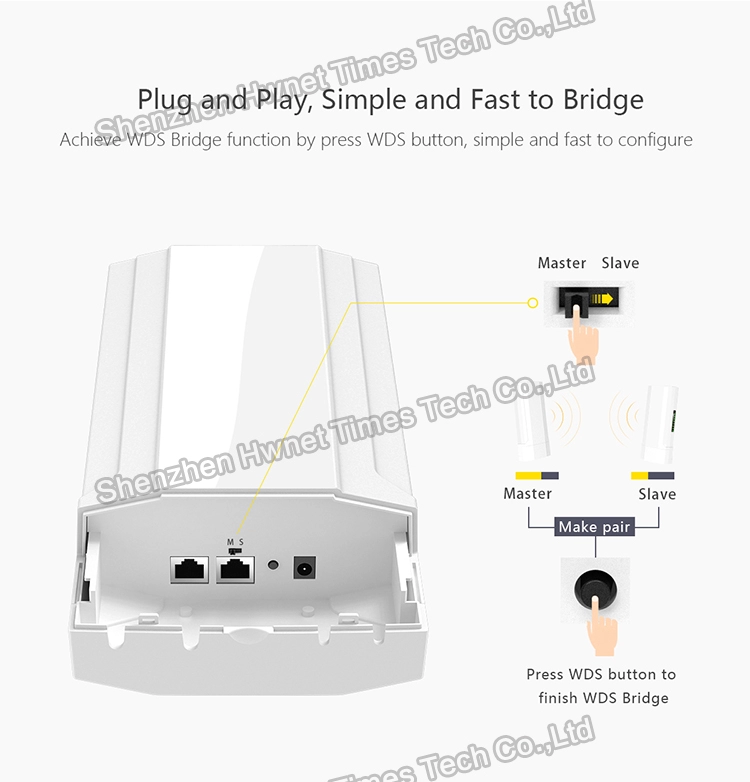

1 * WDS switch button, press it to do WDS PTE/PTMP connection | |
1 * Reset button, press 15 seconds to revert to default setting | |
Antenna | Build in 2*2.4GHz 15dBi MIMO Panel Antenna 2*5.8GHz 14dBi MIMO Panel Antenna |
Power consumption | 48V PoE, <8W |
Size | 315mm * 145 mm * 80mm |
RF Data | |
Frequency | 5GHz: 802.11a/ac |
5GHz: 5180~5825MHz | |
Throughput | 1200 Mbps |
Country code | FCC、IC、ETSI、MKK、MKK1、MKK2、MKK3、NCC、RUSSIAN、CN |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Receive Sensitivity& RF Power | |
RF Power | 802.11a:54M 23±2DB,6M 26±2DB. 802.11n HT20:MCS7 23±2DB, MCS0 26±2DB. 802.11n HT40:MCS7 22±2DB, MCS0 25±2DB. 802.11ac HT80:MCS9 20±2DB, MCS0 23±2DB. |
Receive Sensitivity | 802.11a: -72dbm@54Mbps; -90dbm@6Mbps. 802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 . 802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 . 802.11ac HT80:-60dbm@MCS9, -86dbm@MCS0 . |
EVM | 802.11n: ≤-28 DB 802.11a: ≤-25 DB |
Firmware Features: | |
Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater, WDS |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
SSID | Multiple SSID up to 4 |
Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter |
Protocols | IPv4 |
Others: | |
Package Contents | 1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista? or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |

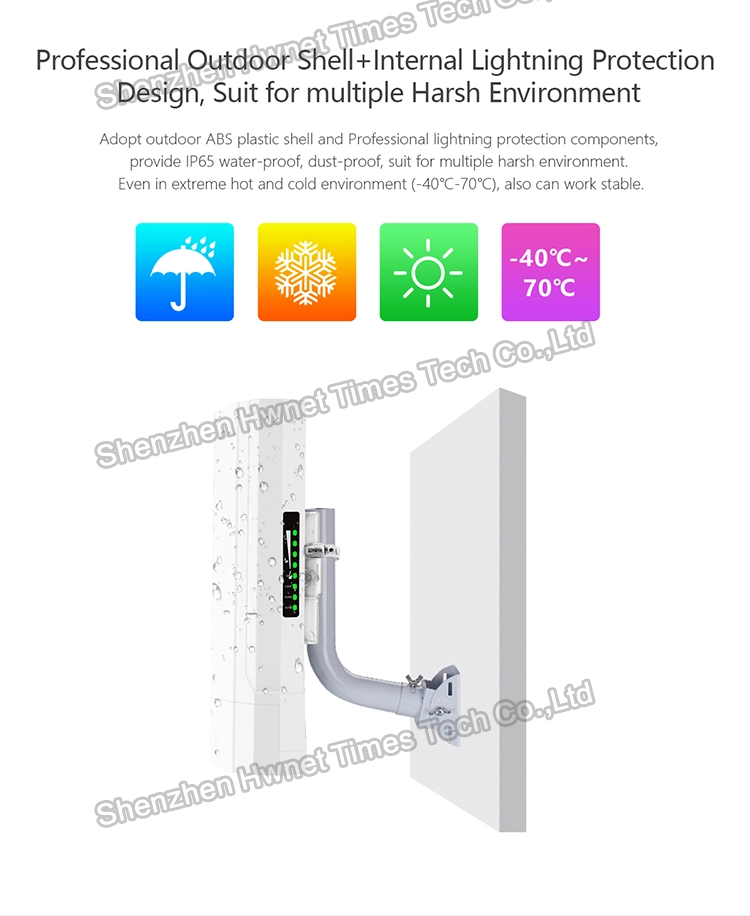

Environment | Operating Temperature: -44~55 ℃ Storage Temperature: -40~70 ℃ Storage Humidity: 5%~90% non-condensing |
Management | Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System |
| Package Contents | 1200Mbps Dual Band wireless access point |
| Ethernet Cable | |
| Quick Installation Guide |
Q1: What is your product quality?
A1: Quality is the life of Rainbow. We only use the best quality (original) components to ensure that the product standard the highest caliber. All products are strictly selected and tested by our QC Department.4g router
Q2:What is your Warranty Teams?
A2: We provide 1 year warranty for all products.
4g router
Q3:What is the payment options?
A3:T/T (Bank transfer), Western Union and PayPal.
Notes: T/T (Bank transfer)for normal orders. Western Union or Paypal for sample order
