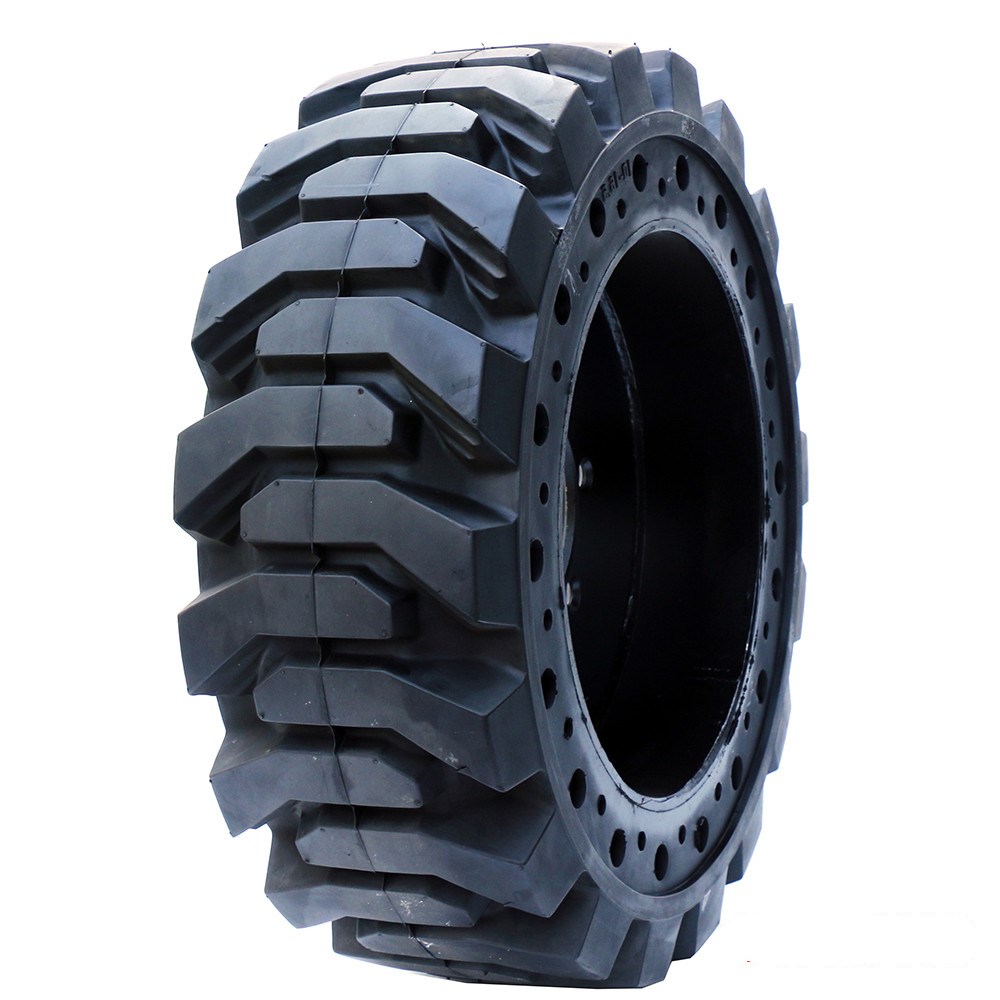

Skid steer solid tire
L/CT/TOthers
| Tyre Size | Rim | Pattern | O.D. (mm) | S.W. (mm) | Load Capacity(kg) 16km/h Drive | Load Capacity(kg) 16km/h Steer |
| 31*6*10 | 10-16.5 | YY-105 | 740 | 235 | 3415 |
Characteristics
1,Super elasticity
2, Lastest tread pattern design,super traction and capacity
3,Comfortable for driving and rding
4,Special compound for high wear-resistance and low heat generating
| Tyre Size | Rim | Pattern | O.D. (mm) | S.W. (mm) | Drive Width mm | Load Capacity(kg) | |
| Balance Forklift | |||||||
| 16km/h | |||||||
| Drive | Steer | ||||||
| 3.50-5 | 3.00 | YY-111 | 296 | 100 | 92 | ||
| 2.00-8 | 2.50 | SMOOTH | 301 | 96 | 96 | 510 | 370 |
| 4.00-8 | 3.00 | YY-101 | 400 | 111 | 102 | 1020 | 765 |
| 3.75 | RIB | 396 | 120 | 120 | |||
| 3.75 | SMOOTH | 396 | 120 | 120 | |||
| 15×4 1/2-8 (125/75-8) | 3.00 | YY-101 | 370 | 109 | 100 | 675 | 655 |
| YY-102 | |||||||
| 15x6 1/2-8 | 5.00 | YY-110 | 377 | 165 | 156 | 825 | 805 |
| 5.00-8 | 3.00 | YY-101 | 455 | 125 | 117 | 1175 | 880 |
| YY-102 | |||||||
| 16×6-8 (150/75-8) | 4.33 | YY-101 | 404 | 147 | 135 | 1445 | 1085 |
| 18×7-8 (180/70-8) | 4.33 | YY-101 | 440 | 155 | 150 | 2265 | 1700 |
| YY-102 | |||||||
| 18x7-10 | 4.50 | YY-101 | 455 | 154 | 148 | 1780 | 2360 |
| 6.00-9 | 4.00 | YY-101 | 515 | 143 | 131 | 1855 | 1390 |
| YY-102 | |||||||
| 7.00-9 | 5.00 | YY-101 | 536 | 157 | 150 | 2805 | 1925 |
| YY-102 | |||||||
| 21×8-9 (200/75-9) | 6.00 | YY-101 | 505 | 192 | 182 | 2715 | 2035 |
| 200/50-10 | 6.50 | YY-101 | 441 | 187 | 127 | 2290 | 1720 |
| 6.50-10 | 5.00 | YY-101 | 566 | 153 | 145 | 2545 | 1910 |
| YY-102 | |||||||
| 23×9-10 (225/75-10) | 6.50 | YY-101 | 561 | 191 | 184 | 3845 | 2885 |
| 7.00-12 | 5.00 | YY-101 | 643 | 176 | 163 | 2910 | 2185 |
| YY-102 | |||||||
| 23×10-12 | 8.00 | YY-101 | 586 | 227 | 224 | 3820 | 3210 |
| 8.25-12 | 5.00 | YY-101 | 696 | 189 | 181 | 3215 | 2410 |
| YY-102 | |||||||
| 27×10-12 (250/75-12) | 8.00 | YY-101 | 661 | 232 | 221 | 4315 | 3235 |
| 6.00-15 | 4.50 | YY-106 | 653 | 151 | 135 | 2705 | 2000 |
| 28x9-15 (8.15-15) (225/70-15) | 7.00 | YY-101 | 691 | 208 | 196 | 3945 | 2960 |
| YY-102 | |||||||
| 250-15 (250/70-15) | 7.50 | YY-101 | 693 | 228 | 217 | 4220 | 3160 |
| 7.00-15 | 5.50 | YY-101 | 711 | 187 | 173 | 3465 | 2600 |
| 7.50-15 | 5.50 | YY-101 | 752 | 189 | 180 | 3425 | 2570 |
| 8.25-15 | 6.50 | YY-101 | 810 | 204 | 192 | 4765 | 3575 |
| YY-102 | |||||||
| 300-15 (315/70-15) | 8.00 | YY-101 | 788 | 238 | 234 | 5780 | 4335 |
| 28×12.5-15 (345/45-15) | 9.75 | YY-101 | 706 | 300 | 5540 | 4165 | |
| 355/65-15 | 9.75 | YY-101 | 818 | 302 | 279 | 6300 | 5650 |
| 8.25-20 | 6.50 | YY-101 | 933 | 212 | 200 | 5420 | 3930 |
| 7.00 | |||||||
| 9.00-20 | 6.50 | YY-101 | 948 | 222 | 210 | 6235 | 4675 |
| 7.00 | |||||||
| 10.00-20 | 7.50 | YY-101 | 1038 | 264 | 255 | 6995 | 5240 |
| 8.00 | |||||||
| 11.00-20 | 7.50 | YY-101 | 1038 | 264 | 255 | 7300 | 5490 |
| 8.00 | |||||||
| 12.00-20 | 8.00 | YY-101 | 1086 | 282 | 271 | 8500 | 6925 |
| 8.50 | |||||||
| Notes:Available in Black,Non-marking;With or Without Clip. | |||||||
1,Quality First,Service First.
2,We promise to all customers inquiry will be replied within 24 hour work days in time.
3,Timely delivery.
4,OEM can be available.
5,We promise good after-sales service and the shipment documents are correct and on time.
6,We could supply the correct rims, assemble the tires and the rims for you.
LONGSTAR is our own brand for Solid Tyre,OTR Tyre and Industrial Tyre.
The company is committed to providing global customers optimized Industrial tyre solutions. In order to meet different customer with different application purpose, the company is working together with R & D experts from the United States, created more than 10 kinds of rubber compound formula to meet customers’ demand.
1. What is your terms of packing?
A: 1,Standard package with plastic film.
2,Non-fumigation pallet according to the customers requirement.
3,No package.
Q2. What is your terms of payment?
A: T/T 30% in advance, and T/T 70% should be paid before the shipment / after the copy of B/L at sight.
Q3. What is your terms of delivery?
A: EX-WORK, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 25 days. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds.
