Rotary Sand Dryer high efficiencyless consumption Three Cylinder Rotary
L/CT/TWestern UnionPaypalMoney GramOthers
High Quality Three Cylinder Rotary Sand Dryer Plant for Premix Dry Mortar Mixing Plant
1. Brief Introduction of three cylinder rotary sand dryers:
Three cylinder sand dryers are also called sand dryer, river sand dryer, sand drying machine, yellow sand dryers, dry mortar dryers, etc. River sand( yellow sand, mechanical sand) is an important raw material in construction engineering, with the requirement of urban development and construction, cement mortar (dry powder mortar, the mixed mortar, dry mortar, insulation mortar) and the demand is also increasing, the kinds of river sand dryer arises at the historic moment, and is widely used in sand making, building material, metallurgy, mineral processing, chemical industry, cement industry, etc.
Application of three cylinder rotary sand dryers:
Powder & particle: Sands, limestone, stones, clay, mineral filter cake, coal, iron sulphate, filter cakes, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, bentonite, Kaolin etc.
Corrosive material: Distillers ‘grains, Fertilizer, animal dung, slag etc.
Biomass material :Sawdust, wood chips etc.

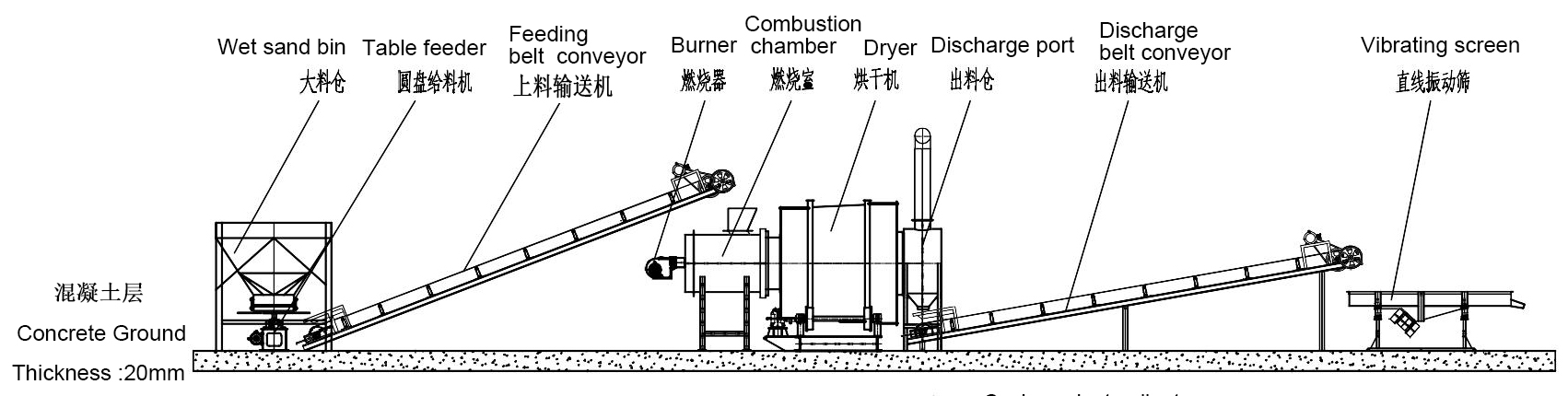

2. Flow chart of three cylinder rotary sand dryers:

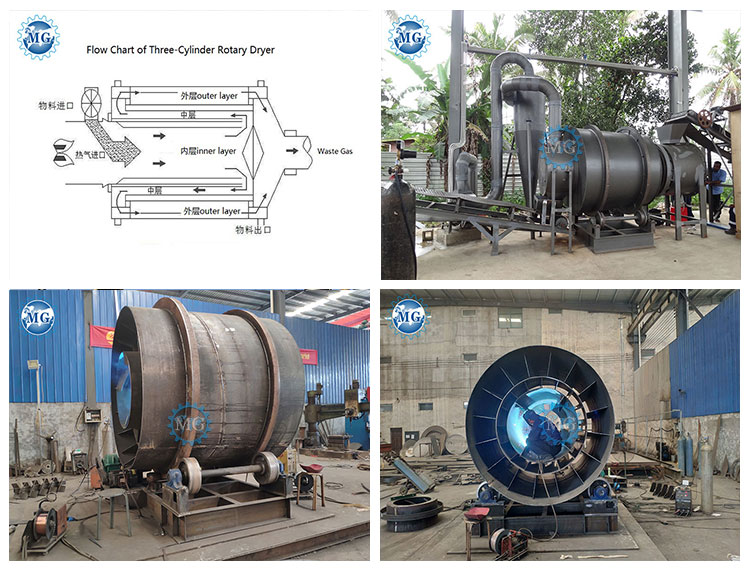

3. Inside drawing of three cylinder rotary sand dryers:
4.Technical specification of three cylinder rotary sand dryers:
Model | Capacity (t/h) | Moisture after drying (%) | Coal consumption (kg/ton of sand) | Main motor power (kw) |
MGS623 | 3-5t/h | <0.5% | 7-12 | 4 |
MGS625 | 5-8t/h | <0.5% | 7-12 | 5.5 |
MGS6210 | 10t/h | <0.5% | 7-12 | 7.5 |
MGS6200 | 20t/h | <0.5% | 7-12 | 7.5 |

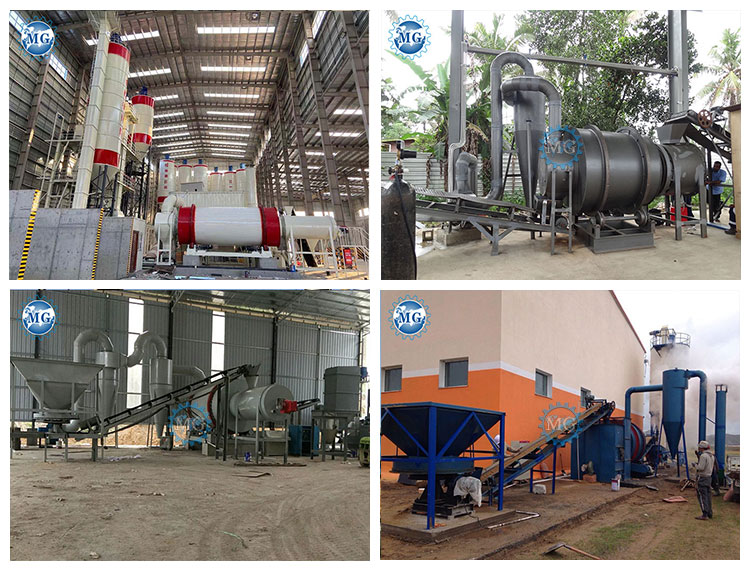

5. Working site of three cylinder rotary sand dryers:
5. Cutomers visiting and factory pictures of three cylinder rotary sand dryers:
