Laminated glass

Clear Laminated Glass, Opaque Laminated Safe Glass, Sandwich Glass, plyglass

02-Product Preview

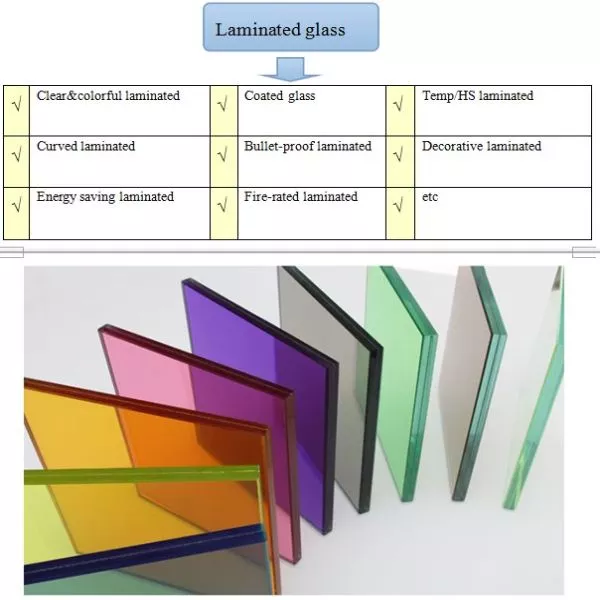

Laminated glass , also called sandwich glass, is made up by double or multi-layers float glass in which there is PVB film, pressed by hot press machine after

which the air will come out and the rest air will be dissolved in PVB film. The PVB film can be transparent, tinted, silk printing, etc.

03-Product Features

Derivative product: smart glass, LED glass, bulletproof glass, wired glass, etc.

04-Common Standards

Regular thickness: 6.38mm, 8.38mm, 10.38mm, 12.38mm, 16.38mm, 6.76mm, 8.76mm, 10.76mm, 12.76mm, 16.76mm, 20.76mm, 24.76mm.

PVB thickness: 0.38mm (one layer), big glass panel / thick glass panel we will suggest double or multi-layer PVB film.

Regular specifications: 4mm + 4mm, 5mm + 5mm, 6mm + 6mm, 8mm + 8mm

If you are not quite sure about how much thickness you should use, please contact our sales person

05-Processing Types

Glass layer: float glass, tempered glass, tinted glass, Low-E glass, reflective glass, etc.

06- Technical Parameters

Different specifications will have different technology data. Please contact with me for more details.

09-Product Applications

1. Housing, hotel, restaurant, shopping mall, commercial building, bathroom
2. Doors, windows, partitions, ceilings, curtain walls, stairs, tables
3. Sightseeing elevators, banks, showrooms, floors, villas,skylight,guardrail,paitition

4. hospital, libraries and museums, airport terminals, residences and apartment buildings
5. All kinds of place

10-Instructions

1. Acid-stage type glass glue can not be used. It will corrode the inside layer.
2. Reserved 2mm to 4mm middle position for sealed silicon.

11-Test Standards

1. EN 14449: glass in building - laminated glass and laminated safety glass
2. EN 12600: glass in building - pendulum test
3. EN 12150: thermally toughened sode lime silicate safety glass
4. ASTM C1172: laminated architectural flat glass
5. ASTM C1048: heat treated flat glass
6. ANSI Z97 1: safety glazing materials used in buildings
7. GB 11614: flat glass
8. GB 15763: safety glazing materials used in buildings
9. ISO 12543-1~6: glass in building - laminated glass and laminated safety glass
10. AS/NZS 2208: safety glazing materials in building
