NFM series centrifugal pump

• Introduction

• Centrifugal pumps with single impeller are able to offer high flow rates,provide smooth,nonpulsating delivery,and regulate the flow rate over a wide range without damaging the pump.

• For the correct functioning of the pump,use clean water,or non-aggressive liquids charged with small solid impurities.

• To be used in flow irrigation system in gardening,agriculture and industrial fittings.

Application　Feilds

Widely used in living water supply ,well water pumping,pressurization of tap water,hot-water pipeline pressurization,water tower water supply,gardens and vegetable greenhouse watering,aquaculture water supply and drainage and so on.

Working　Condition
Max. fluid temperature +60℃

Max. ambient temperature +40℃
Max. solid impurity:0.1%,Max. particle size: 0.2mm.

Construction

Pump

Pump Body: Cast iron/Brass/Stainless steel
Impeller: Brass/P.P.O

Mechanical Seal:Carbon/Ceramic/Stainless steel

Motor
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
Construction and safty standards in compliance with IEC

220V/50HZ.60HZ  110V/50HZ.60HZ  220v.110v/50hz.60hz are avaliable on request.

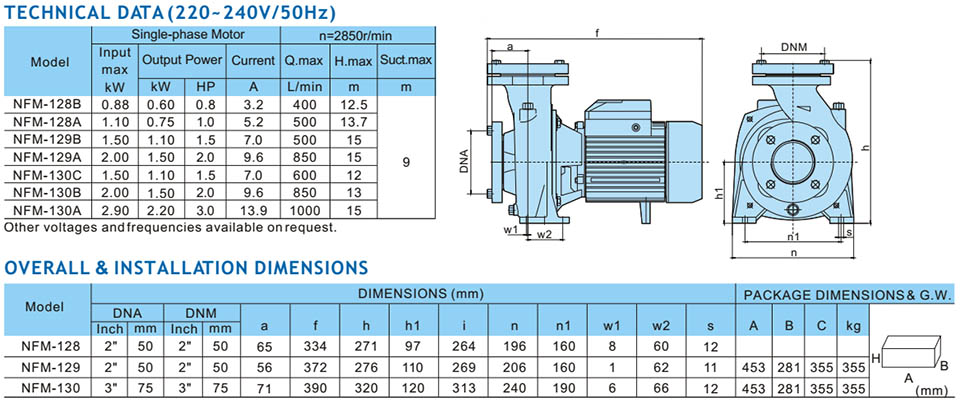

Technical data and Overall & installation dimension
