10-12T/H Automatic Dry Mortar Plant Industrial Mixer Premix Dry Mortar Plant

Name: 10-12T/H Automatic Dry Mortar Plant Industrial Mixer Premix Dry Mortar Plant
Brand: Zhengzhou MG Industrial Co.,Ltd
SKU: 20111841618

ID:20111841618

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 50000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Tile adhesive mixing plantWall putty mixing Machine Tile grout making Machine Dry mortar mixing plantfull automatic plantMasonry mortar mixing machineWaterproof mortar mixing plant

Payment Method:

L/CT/TWestern UnionPaypalMoney GramOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

Product Package

Wooden box packaging and bubble wrap packaging.

Specification

Full automatic 10-12 t/h, 15-20 t/h, 20-30 t/h

Place of Origin

Henan Province, China

Port

Qingdao, shanghai, guangzhou

MG 10-12T/H Automatic Dry Mortar Plant Industrial Mixer Premix Dry Mortar Plant

Production Introduction of MG Full Automatic Dry Mix Mortar Mixing Production:

MG Automatic dry mortar plant adopts European advanced design concept and latest automatic control management system. Tower layout has been applied in the overall design and man-friendly operation with automation level has been largely improved.

The capacity can reach 30,000-100,000 tons per year according to different configuration.

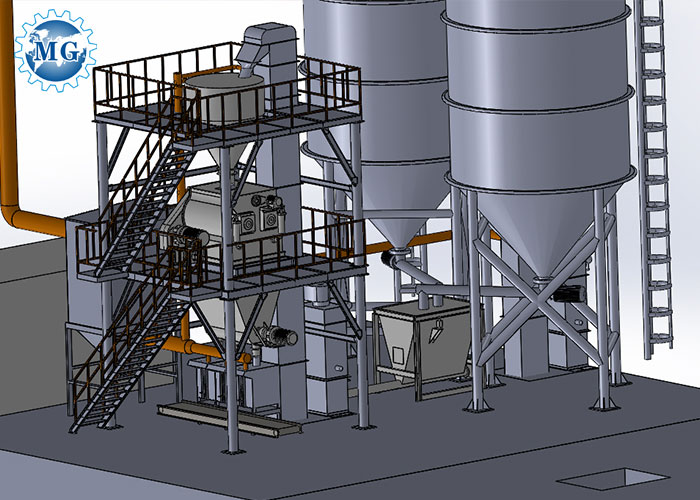

Detail Configuration Flow Chart and Usage of MG Automatic Dry Mortar Plant.

1	Storage system	To store dry raw materials
2	Bucket elevator	To vertical transport the materials. Granular material feeding to silo from here, powder material usually feeding by pump truck.
3	Screw conveyor	To horizontal transport the materials to the weighting hopper.
4	Weighting system	Automatic weighting
5	Twin Shaft Agravic Mixer	To mix materials uniformly and high efficiency, MG fly cutter system in the top of mixer will cut and break up the fibre easily.
6	Finished product silo	To store the end product and preparing for packing. So that the weighting system, mixing system and packing system can work constantly.
7	Automatic weighing packaging machine	To pack the end product and automatically sewing, it can realize automatically weighing and packaging, packing range: 15-50kg/bag, packing accuracy can be + / - 0.5kg.
8	PLC Control cabinet	To operate and control all machine parts. The touchable display can input and record more than 10 different kinds of formula.
9	Air compressor	Provide air source for silos, dust collectors, premix hopper, twin shift agravic mixer, end product hopper, packing machines, etc.

Application of MG Full Automatic Dry Mix Mortar Mixing Production:

Dry mix mortars are used in many different applications in the construction of a building. Some of these applications are universal and some others are specific to certain regions or countries. Dry Mortar Mixing Equipment can produce the following dry mortars:

Bonding mortar	Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc
Decoration mortar	Decorative plaster, inner and outer wall putty, colorful decoration mortar etc
Protection mortar	Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

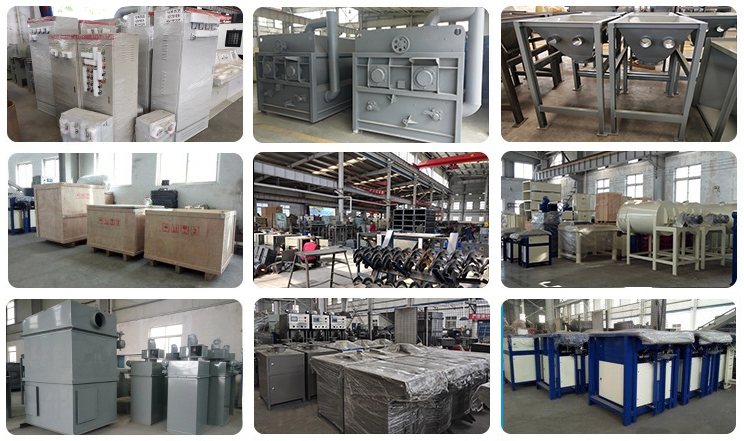

Factory stocks for MG Full Automatic Dry Mix Mortar Mixing Production:
