Steel Roll Forming Machineroll forming machinesteel forming machinesteel compressing machinesteel shapa machinesteel machine
L/CT/T

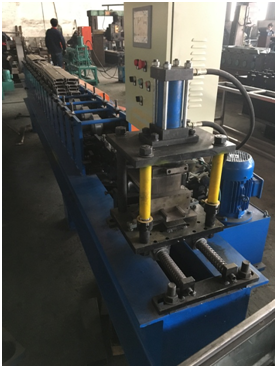

Steel Roll Forming Machine
Working flow :
De-coiler-------feeding------–puncning------–guiding---------roll forming –-------cutting -------–finished production
Consist part :
De-coiler-----------------------------------------------1set
Punching machine---------------------------------1set
Forming machine-----------------------------------1set
Cutting device ---------------------------------------1set
PLC--------------------------------------------------------1set
Hydraulic pump station----------------------------1set
Main machine :
De-coiler : manual De-coiler 3 ton
Punching：2 sets mould on the frame (left and right move), mould
material Crl2
Oil pump : made in China
Speed : 0-5m／min
Number of roller: 18 stands
Main power : 5.5KW
Material of roller :45# steel electroplate after quenching
Material of axis : 45# steel
Diameter : Φ45mm
Bottom : 36# I steel
Thickness of said panel : Sl8mm
Type of bearing : 6212
The tolerance of length : ±1mm
Drive type : 0.6′chain

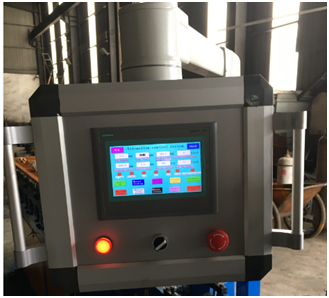

PLC: made in Taiwan, touch screen
Cutting :
2 sets mould follow cutting (left and right move)
Adopt hydraulic cutting
Counter : Omron
The material of blade : Crl2
The power of hydraulic station : 3KW
