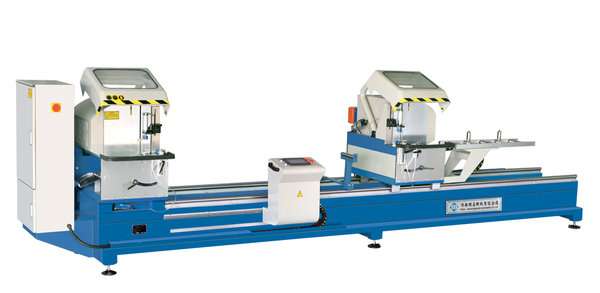

CNC Precise Double-head Cutting Saw LJZ2S-500*4200
Main features
1). High quality carbide tipped saw blades.
2). High precision main shaft to keep saw blades running stability.
3). Pneumatic-hydraulic damp device to keep the stable feeding.
4). Adopt high quality guide railing system in the feeding system.
5). High precision linear bearing to keep the repositioning precision.
6). Auto turnable machine head.
7). Vertical and horizontal clamping cylinder.
8). Spraying cooling system.
9). Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
10). Adopt CNC technique, can achieve various profiles auto cutting off.
Technical Parameters
Brand name | MAG |
Power supply | 380V 50Hz |
Main motor power: | 5.9kw |
Air pressure | 0.5-0.8M pa |
Air consumption | 200L /min |
Main motor rotation speed: | 2840r/min |
Min/max Cutting length | 435-4200mm |
Saw blade dimension: | Φ500×Φ30 |
Cutting angle: | -45 ° - 67.5 ° 90 ° |
Cutting W x H | 135x200mm |
Repeat locating length | ≤0.2mm |
Angle cutting tolerance | ±5′ |
Plane of cutting surface | ≤0.10 |
Cutting profile surface roughness | Ra12.5μm |
Size: (width × high × long) | 5700*1650*1520mm |
Weight: | 1800Kg |
Main Parts
CNC System | JAPAN MITSUBISHI |
PLC | TAIWAN DELTA |
GUIDE RAIL | TAIWAN HINWIN |
SAW BLADE | JAPAN WAGEN |

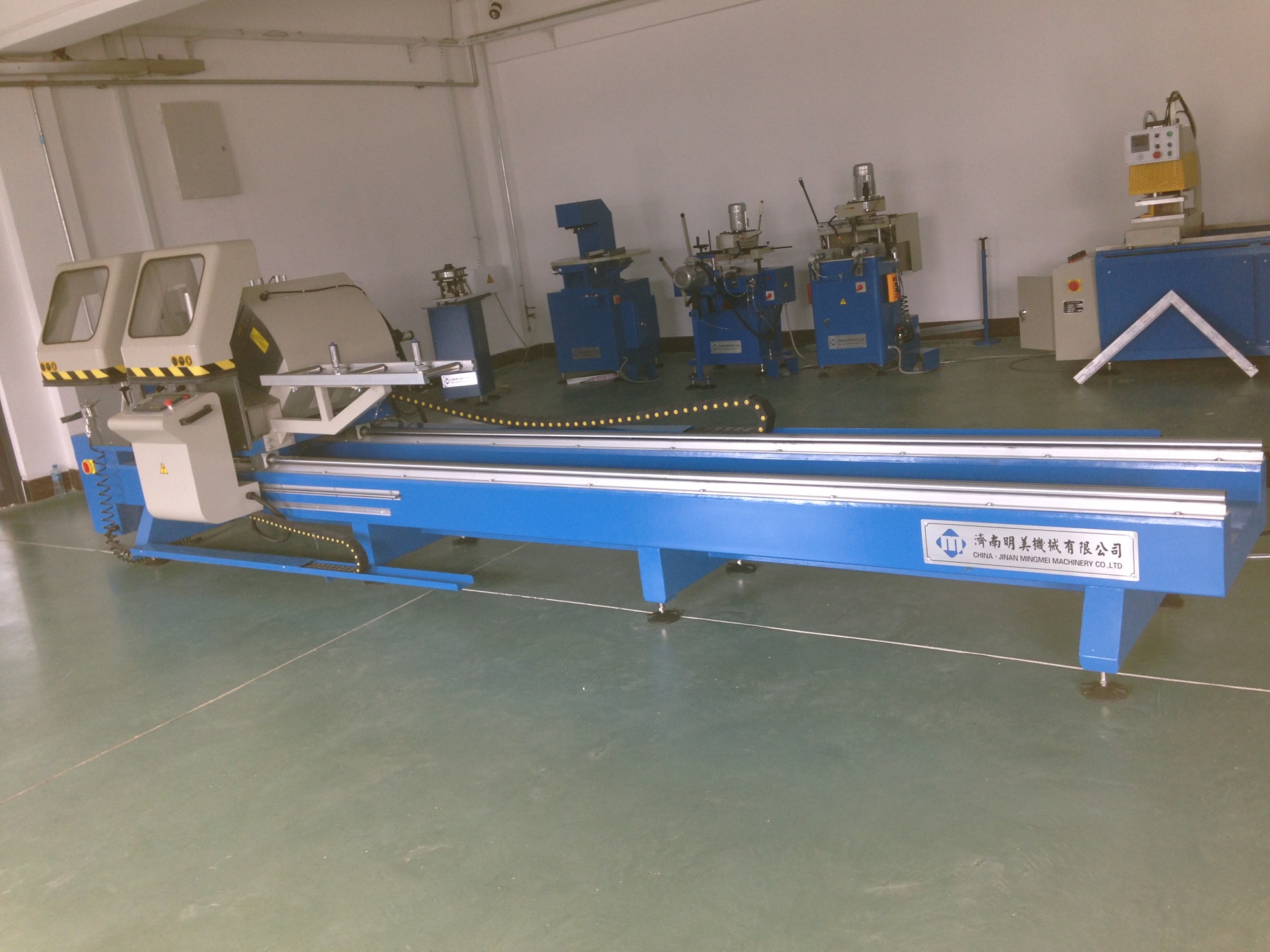

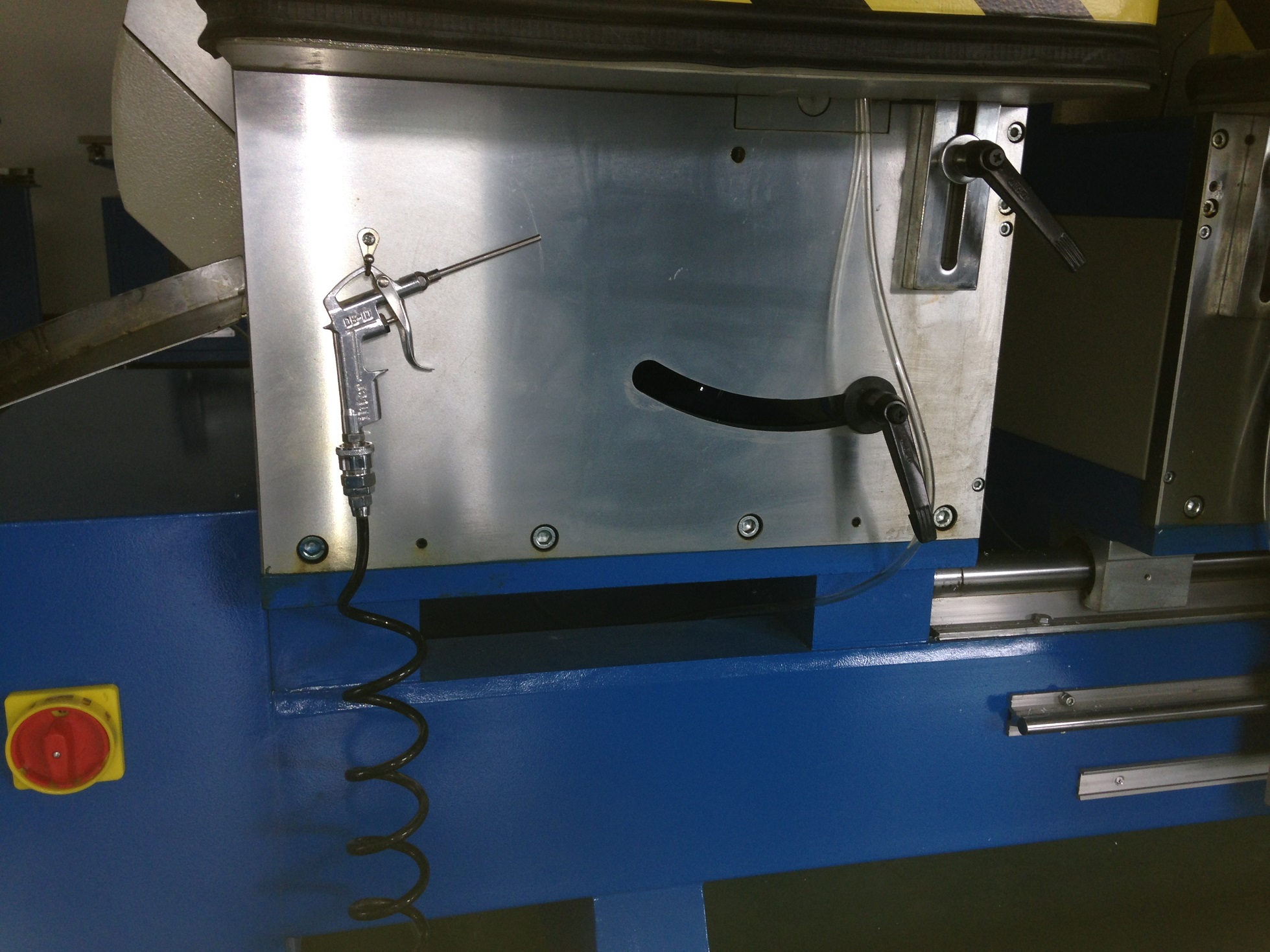

Machine photos

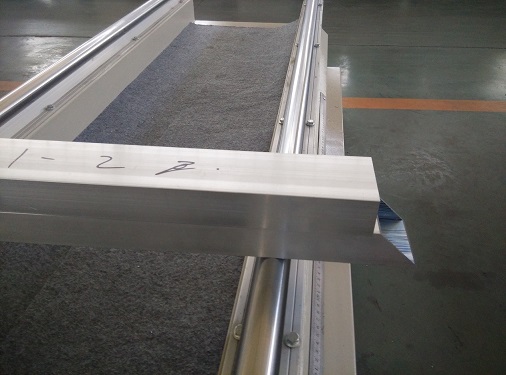

Cutting samples

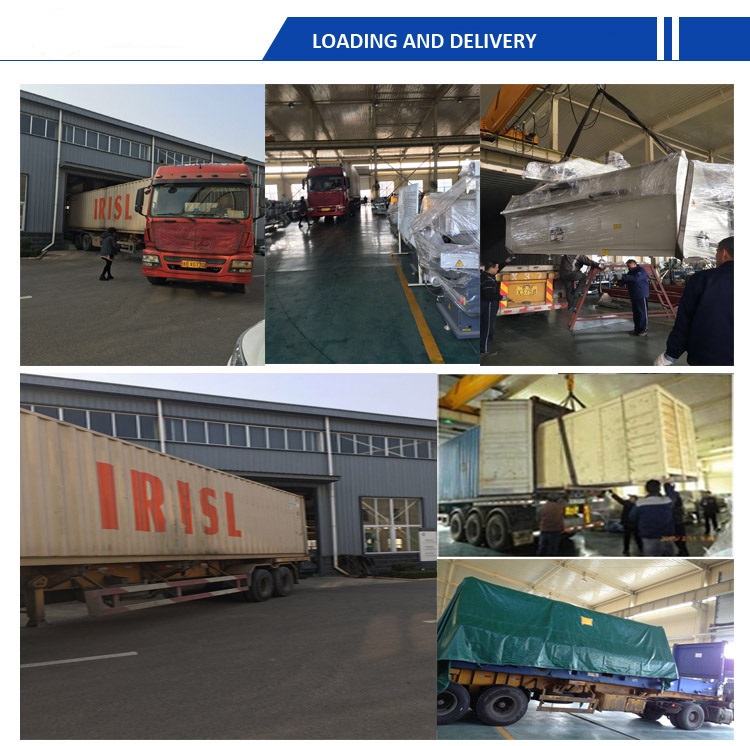

Packing and delivery
CE Certificate
Company information
MAG group co., LTD. Is a window machine and related materials industry group in shandong province. Our products cover window making machine, window glass machine, curtain wall processing equipment, CNC machining center, insulating glass building materials, etc.
With the progress of internationalization and globalization, we have 5 subsidiaries and 4 major production bases, we are the building equipment domain product system complete manufacturer.
At present, our products have been sold to more than 50 countries and regions. Relying on the sales centers of various countries, we also established service centers to provide customers with products and services efficiently.
In the future, we will continue to uphold the "making building more energy-saving and make life getting better " brand of faith, with new attitude, to provide customers with more cost-effective products and services, to create the bright, comfortable, high quality window and doors productions.
