TOPRISE Static Natural Roof Ventilator No power roof ventilator(700M)

ID:20111841776

Category: Construction & Decoration Building Structural Material

FOB Price:US$ Customizable / Set(s)

MOQ:20.00 Set(s)

Product Keywords:

wind powered roof ventilatorsroof air ventilatorsolar roof ventilatornatural roof ventilatorwind driven ventilatorroof ventilatornatural wind ventilatorno power ventilatorroof ventilationnatural ventilation

Payment Method:

T/T

Product Category

Construction & Decoration > Building Structural Material

Trademark

TOPRISE

Product Package

carton

Specification

300,500,700

Place of Origin

CHINA

Port

SHANGHAI

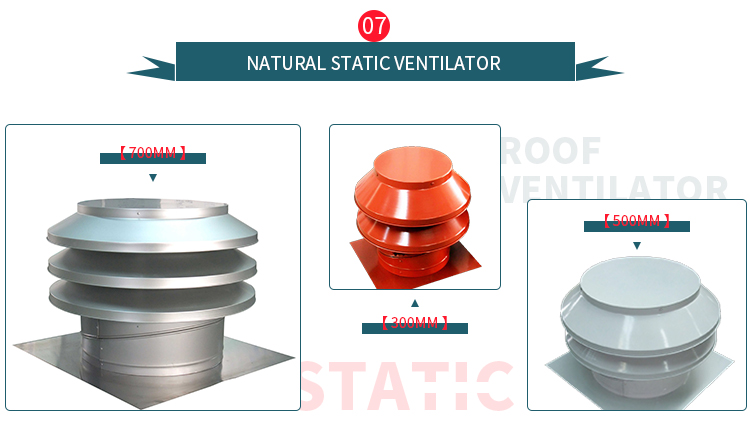

Natural Static Roof Ventilator

Static natural ventilator does not revolve, but it can exchange and improve the indoor air flow. It can exhaust hot or moist out by temperature differential between indoor and outdoor. This product is no energy cost, and environmental friendly. It is applied in stadium, warehouse, workshop, farmhouse, indoor parking garage. As static ventilator does not revolve, it looks balanced, quiet, no vibration and provides longer service life. Static ventilators are very popular and chosen by architects and users.

Product Paramenters

MODEL	VARIPITCH DIA.	VENT HEAD DIA.	HEIGHT	BLADE NO	WEIGHT	BASE SIZE (LXW)
300MM	300MM	460MM	440MM	2	2.1KG	400X450MM
500MM	500MM	700MM	460MM	2	4.3KG	750X800MM
700MM	700MM	980MM	725MM	3	9.4KG	1000X1000MM

Our Advantages

1. All aluminum alloy construction
2. Anodic oxidation or powder coating on aluminum alloy- long term anti- corrosive and durability.
3. Aluminum alloy section bar for internal support, anodic oxidation on the surface of section bar.
4. Aluminum alloy rivets, EPDM sealing ring are fit on top rivets for sealing and waterproof.
5. Reasonabledesign provides for excellent air flow, ventilation coefficient achieves 1:1.
6. Its design prevents rain and snow from entering inside.
7. Rustproof anti-bird mesh is available
8. Varipitch design allows easy DIY installation and suitable for roofs with any angles.
9. Cyclone region rating is available.

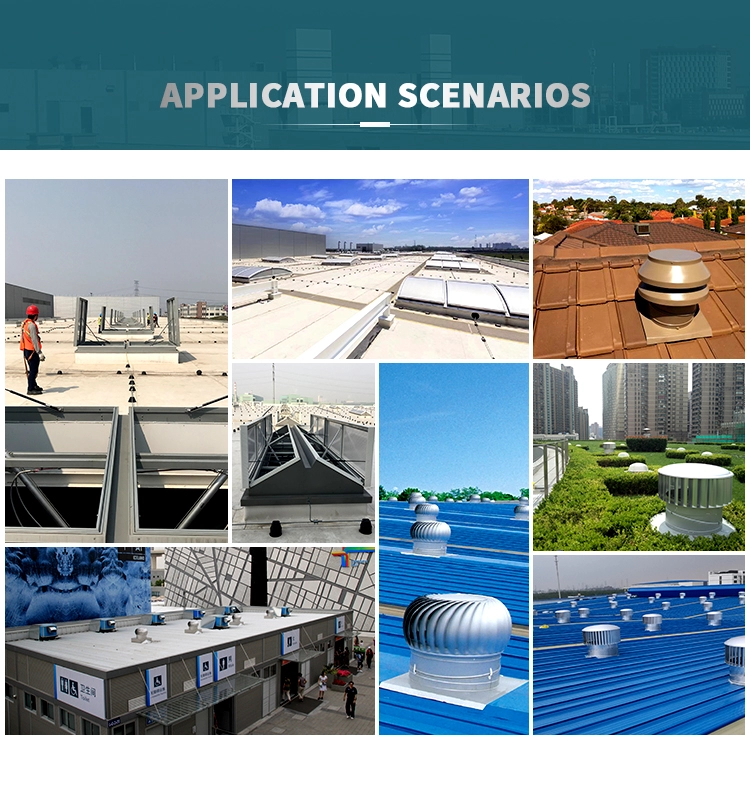

Application scenarios

Company profile

Exhibition

Certifications

FAQ

FAQ of Natural Ventilator

Q: 你们都有哪些型号？Which sizes of roof ventilator do you have?
A: 我们有以下型号：

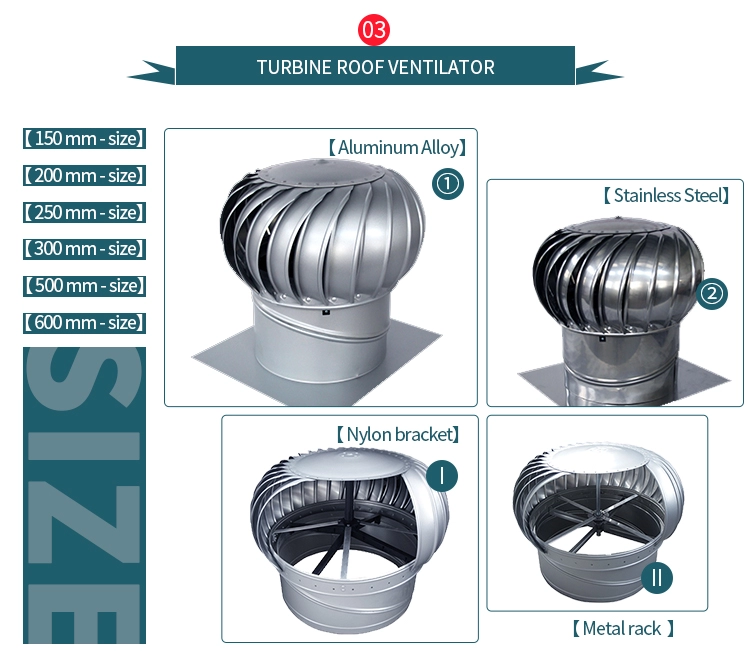

Spherical shape: 150MM, 200MM, 250MM, 300MM, 500MM, 600MM.

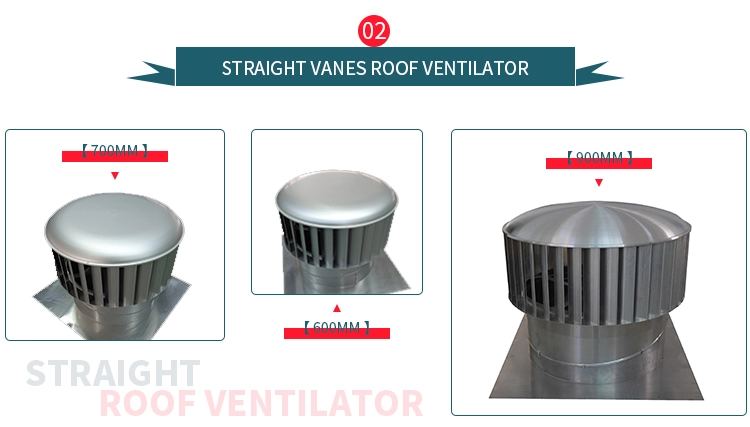

Straight vanes shape：600MM, 700MM, 900MM
Static Shape：300MM, 500MM, 700MM

Q: What’s your MOQ? 最小起订量多少？
A: 10 units each size. 每个型号10台。

Q: Could you recommend the model and quantity? 你们可以推荐型号和数量吗?
A: Yes, we can design the model and quantity as per the warehouse dimension and warehouse type.
是的，我们可以按照厂房的尺寸和厂房类型来设计型号和数量。

Q：How about the lead time? 交货期如何？
A: Normally 2-3 weeks. It depends on the quantity and our production plan.
通常2-3周，具体根据订单数量和我们的生产计划。

Q：Could you supply in CKD or half assembled way? 可以以散件或者半散件形式供货吗？
A：Yes, we can. This way can save space and shipping cost. We can supply assembly instruction for you.
是的，我们可以。这种方式可以节省空间和海运费。我们会提供组装指南给您。
