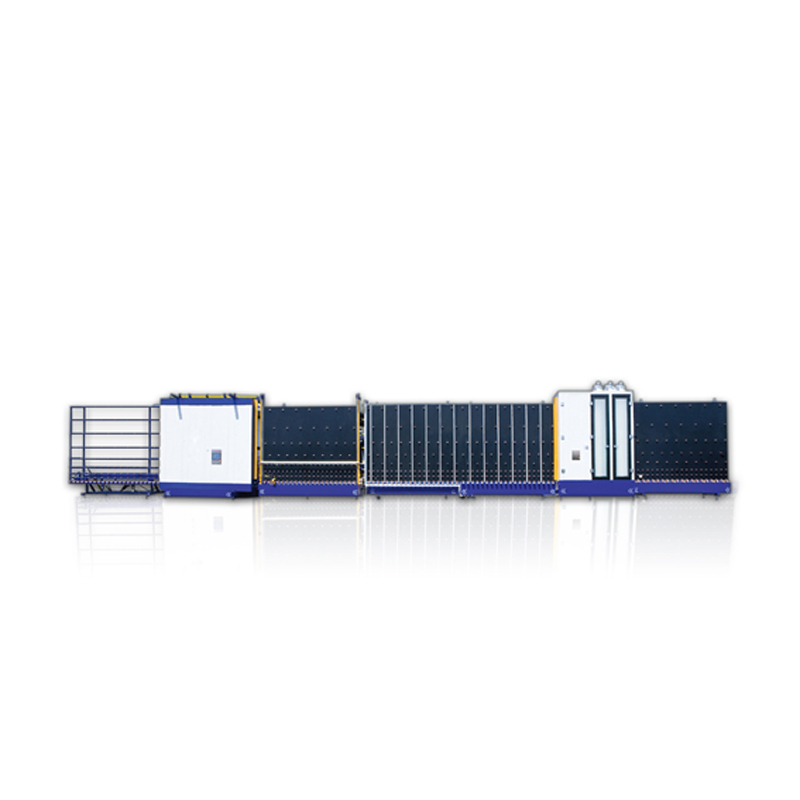

Automatic Insulating Glass Machine Production line LB2500W
Technical Parameters:
Model | LB2500W |
Input Voltage | 380V 50Hz /3P or As Customer need |
Input Power | 28KW |
Work speed | 0-45m/min |
Max. glass size | 2600*3500mm |
Min. glass size | 400mm*450mm |
Single Glass thickness | 3-15mm |
I.G. unit glass thickness | 12-48mm |
Glass wasing speed | 0-45m |
Air pressure | 0.8m3/min(1 mpa) |
Oversize | 21400*1800*3100mm |
Gross Weight | 4900kg |
Features：
1. Automatically distinguish the coating side of coated glass and Low-E glass
2. PLC control system with touch screen operation.
3. Dynamic display for machine work and fault condition.
4. LB2200W inside assembly lines can produce standard double layers insulating glass and three layers insulating glasses (optional).
5. Designed for curtain wall glass, double layer insulating glass and three layers insulating glasses.
6. Insulating glass pressing design adopts gear and rack synchronous device driven by hydraulic station.
7. Frequency control designed for glass transmission.
8. 800-1000 units insulating glasses every single shift 8 hours(double layer insulating glass size 1M)
9. Panel pressing can be openable, maximum openning size: 500mm

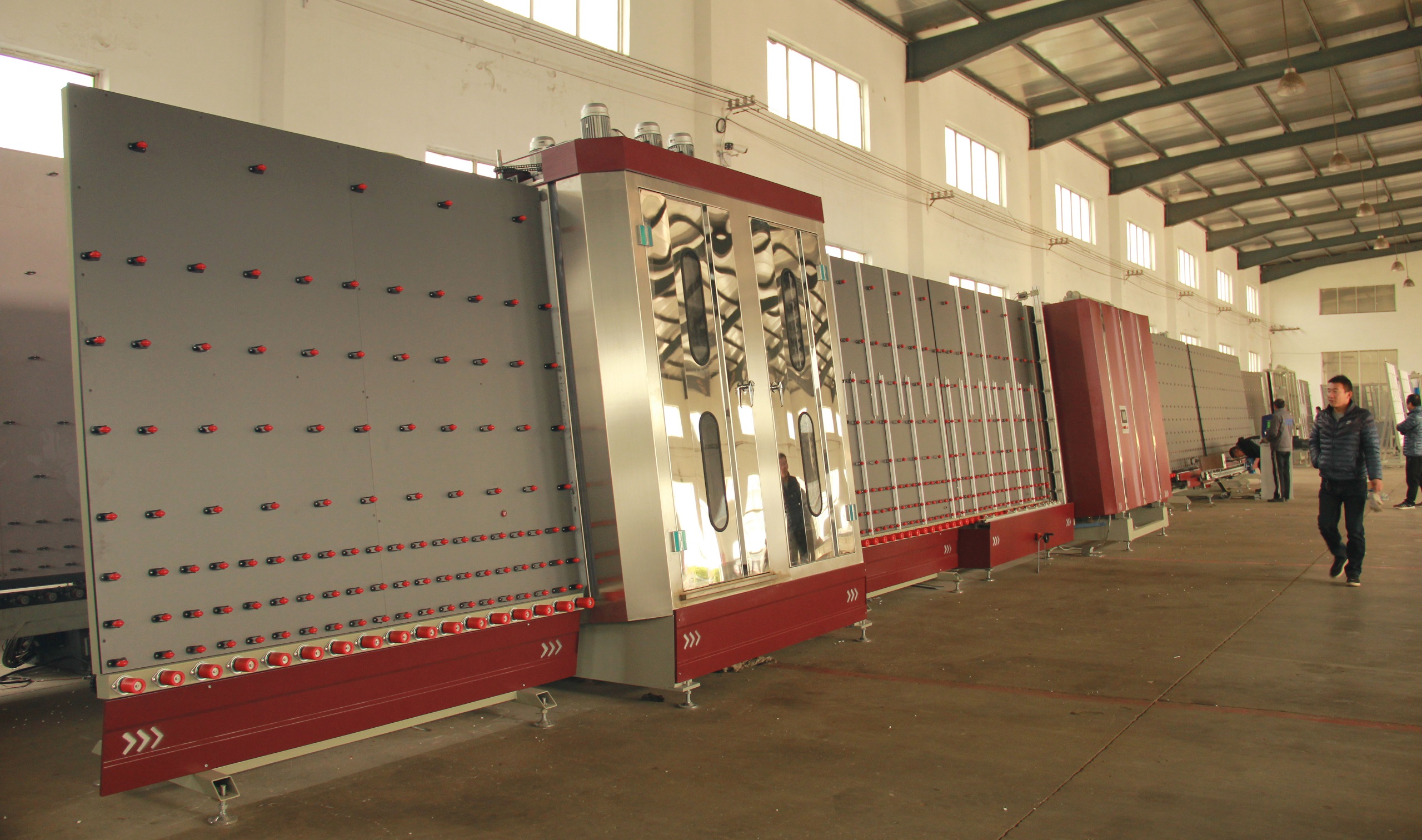

Machine photos

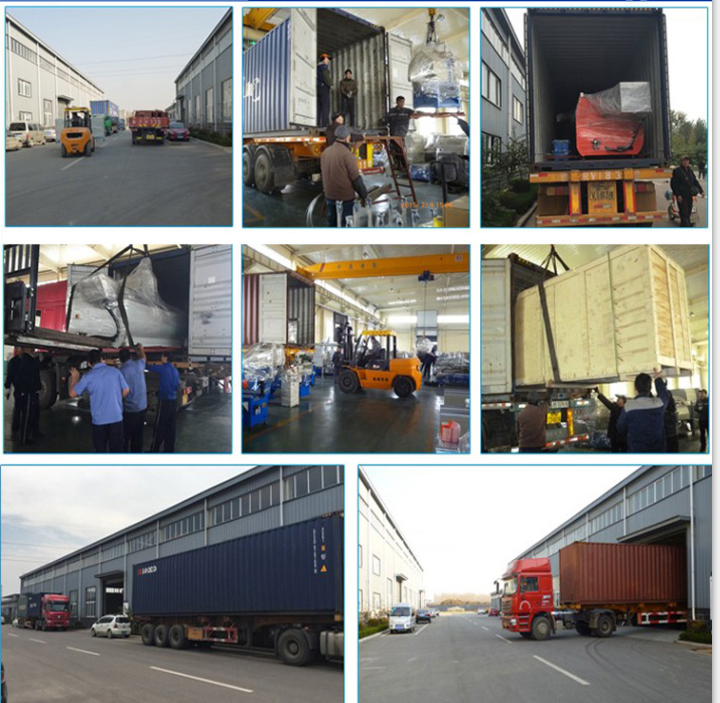

Packing and delivery
CE Certificate
Company information
MAG group co., LTD. Is a window machine and related materials industry group in shandong province. Our products cover window making machine, window glass machine, curtain wall processing equipment, CNC machining center, insulating glass building materials, etc.
With the progress of internationalization and globalization, we have 5 subsidiaries and 4 major production bases, we are the building equipment domain product system complete manufacturer.
At present, our products have been sold to more than 50 countries and regions. Relying on the sales centers of various countries, we also established service centers to provide customers with products and services efficiently.
In the future, we will continue to uphold the "making building more energy-saving and make life getting better " brand of faith, with new attitude, to provide customers with more cost-effective products and services, to create the bright, comfortable, high quality window and doors productions.
Customer visit us
