China supplier of intelligent fire monitor|firewater cannon|fire sprinkler system|fire spray nozzle

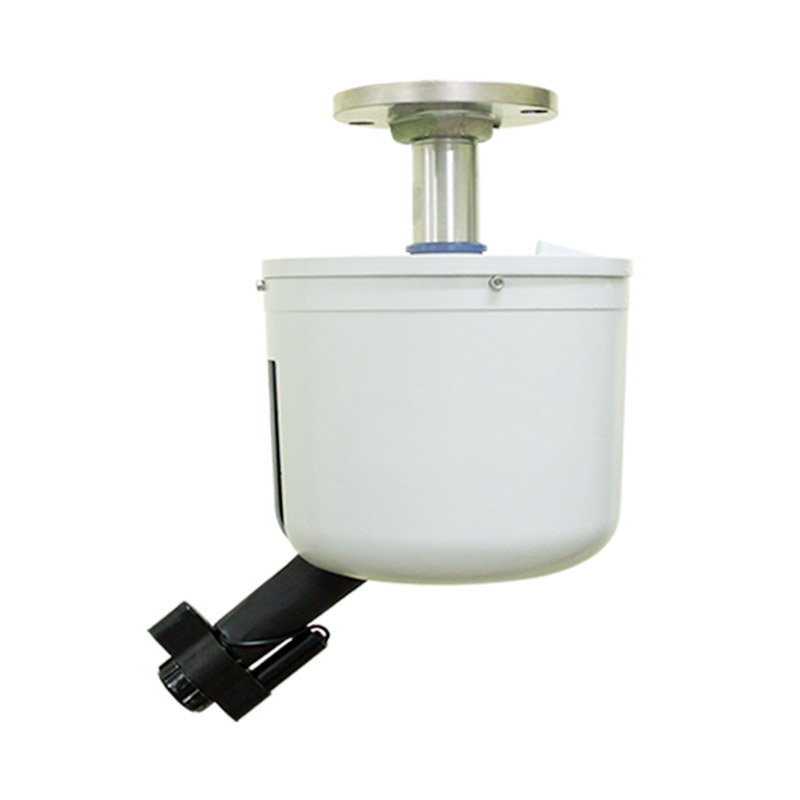

The Firewater Cannon|Fire Monitor is a fast acting fire protection system used primarily to protect against rapid fire spread in high risk areas. Due to their highly intelligent and humanized, Water Cannon typically replace deluge systems in high risk areas or areas with large space, though both systems can work together as well.Water Cannon may also be used for helicopter deck protection and in other large spaces to strengthen fire protection of those areas.In addition to fire prevention, Water Cannon can also be used for early warning and video monitoring.
Scope of application:
General purpose industrial buildings and structures, highoccupancy places, large space building,for example, airports, railway stations, museums, industrial plants, large shopping malls, large warehouses, power plants, coal mines, colleges and universities, etc.
Features:
Early stage fire detection with fast location of ignition point, automatic tracking of fire source,automatic fire extinguishing and spraying water automatically after the location of fire source.
Infrared thermal scanner sensitivity is 0.1m at a protection radius of 30-55m.
*When extinguishing it corrects the stream elevation angle depending on distance.
Advantages:
Easy to operate. The host can remotely control the water cannon, which can be used for fire warning and monitoring at ordinary times.
Full-automatic.Intelligent location of kindling point,real-time tracking of fire source, automatic shutdown after fire extinguishing.
Highly effective and accurate.Once found, immediately lock the kindling point and spray water. Fully sealed, effectively extending the service life of the equipment.
Technical datas:
Model | ZDMS0.6/5S | ZDMS0.6/10S | ZDMS0.8/20S | ZDMS0.8/30S |
Flow rate(L/S) | 5 | 10 | 20 | 30 |
Rated working pressure(MPa) |
0.6 |
0.8 |
0.9 | |
Working pressure range(MPa) |
0.4～0.8 |
0.6～1.0 | ||
Max protection radius(m) |
30 |
35 |
50 |
55 |
Horizontal protection angle(°) |
0～360 | |||
Detection time(s) | ≦30 | ≦60 | ||
Space seeking radius(m) |
50 |
80 | ||
Working temperature(℃) |
-10～55 | |||
