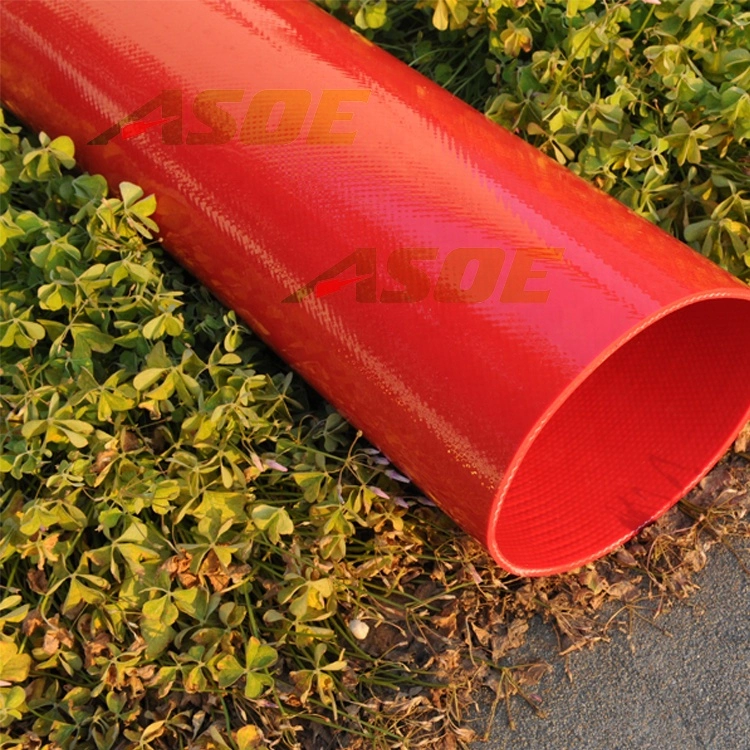

Manureflow Drag is one type of through-the-weave polyurethane (PU/TPU) covered hose. Manureflow Drag hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type. Thick and smooth cover and super adhesion between layers ensure a long life span for drag hoses
Manureflow?Drag PU Layflat Hoses | |||||||||
ID | Wall Thickness | Weight | Working Pressure | Bursting Pressure | |||||
Inch | mm | Inch | mm | lbs/ft | kg/m | PSI | Bar | PSI | Bar |
4 | 103+2.0 | 0.14 | 3.6 | 0.94 | 1.4 | 190 | 13 | 560 | 39 |
5 | 128+2.5 | 0.16 | 4 | 1.21 | 1.8 | 190 | 13 | 560 | 39 |
5.5 | 141+2.5 | 0.16 | 4 | 1.41 | 2.1 | 150 | 10 | 450 | 30 |
6 | 153+2.5 | 0.17 | 4.2 | 1.48 | 2.4 | 150 | 10 | 450 | 30 |
7 | 178+3.0 | 0.17 | 4.4 | 1.92 | 2.86 | 135 | 9 | 105 | 28 |
Application: Suitable for use and recommended for manure tranfer as drag hose etc.
Inner tube and cover: Smooth PU cover and tube.
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -60° F to 176° F(-50° C to 80° C)
Standard Color: Red, Olive green, other colors available per request
Standard Length: 660ft/200m; 990ft/300m, 1320ft/400m, other lengths available per request;
Couplings: Aluminum LDHC Agro couplings, etc.
Warranty: 5 years guarantee
