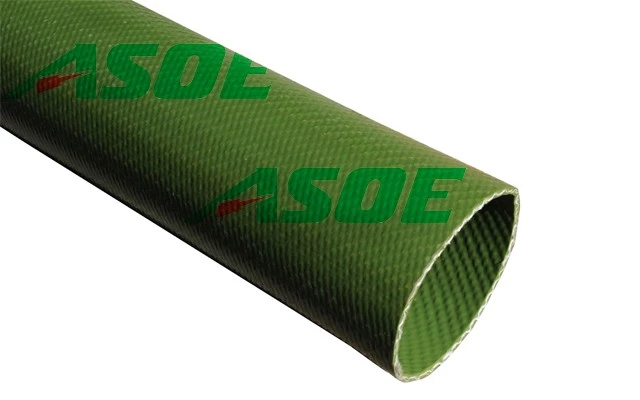

Oilvey 20 is one type of through-the -weave polyurethane (PU) covered hose. Oilvey 20 hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type. Incorporated copper wire is used to transfer static electricity
6inch fuel transfer hose TPU layflat hose with couplings for sale
Oilvey?20 PU Layflat Hoses | |||||||||
ID | Wall Thickness | Weight | Working Pressure | Bursting Pressure | |||||
Inch | mm | Inch | mm | lbs/ft | kg/m | PSI | Bar | PSI | Bar |
4 | 103+2.0 | 0.2 | 5.2 | 1.29 | 1.93 | 400 | 28 | 1200 | 84 |
6 | 153+2.5 | 0.23 | 5.9 | 2.26 | 3.37 | 400 | 28 | 1200 | 84 |
8 | 204+3.0 | 0.24 | 6.2 | 3.5 | 5.21 | 365 | 25 | 1100 | 75 |
Application: Suitable for use and recommended for temporarily transferring oil, fuel, and frac water transfer in mountain area etc.
Inner tube and cover: Smooth PU cover and tube.
Reinforcement: Circular woven polyester jacket with static wire incorporated
Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)
Standard Color: Green, other colors available per request
Standard Length: 50ft, 100ft, 330ft/100m, 660ft/200m; other lengths available per request;

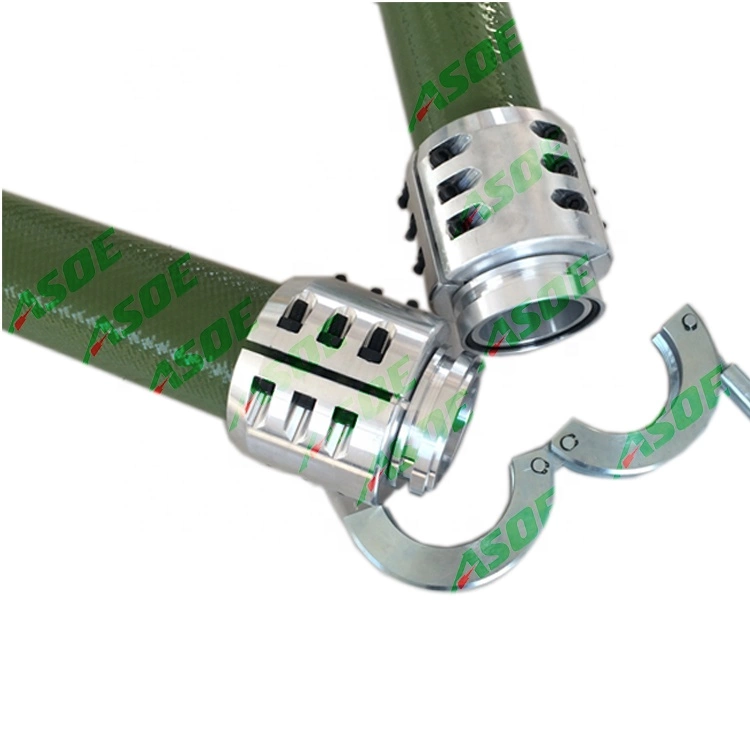

Couplings: Steel HPHC FM couplings, etc. Warranty: Ten years guarantee
6inch fuel transfer hose TPU layflat hose with couplings for sale
6inch fuel transfer hose TPU layflat hose with couplings for sale
6inch fuel transfer hose TPU layflat hose with couplings for sale
