Potaflow potable water PU hose NSF61 Certified

ID:20111942204

Category: Print,Pack,Plastic Rubber & Plastics Products

FOB Price:US$ 15.000 / Meter(s)

MOQ:1.00 Meter(s)

Product Keywords:

water hosepotable water hosedrinking water hoseflexible water hosehose for drinking water PVC water hosePU water hoserubber water hosehigh pressure water hose

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney GramOthers

Product Category

Print,Pack,Plastic > Rubber & Plastics Products

Trademark

Potaflow

Product Package

hose reel or pallet

Specification

1-16inch

Place of Origin

MADE IN CHINA

Port

SHANGHAI

Potaflow is one type of through-the-weave polyurethane (PU) covered hose which is made of PU materials approved according to NSF 61 standard. Potaflow hoses shall be made from 100% high tenacity virgin synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.

large diameter hose 8 inch layflat hose with couplings

Pitaflow PU Industrial Hoses
ID		Wall Thickness		Weight		Working Pressure		Bursting Pressure
Inch	mm	Inch	mm	lbs/ft	kg/m	PSI	bar	Kg	Lbs
1 1/2	38+1.5	0.08	2	0.18	0.26	200	14	600	42
2	51+1.5	0.08	2	0.27	0.4	200	14	600	42
2 1/2	64+1.5	0.09	2.3	0.33	0.49	200	14	600	42
3	76+2.0	0.1	2.5	0.45	0.66	200	14	600	42
4	103+2.0	0.11	2.8	0.71	1.05	200	14	600	42
6	154+2.5	0.14	3.4	1.21	1.8	200	14	600	42
8	204+3.0	0.17	4.3	2.15	3.2	200	14	600	42
10	254+3.0	0.18	4.6	3.08	4.59	200	14	600	42
12	305+3.0	0.185	4.7	3.36	5.01	150	10	450	30

Application: Suitable for use and recommended for potable water transfer. These hoses also can be used for agricultural irrigation etc.
Inner tube and cover: Smooth PU cover and tube
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)
Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m, 660ft/200m; other lengths available per request;
Couplings: Stainless steel couplings with BSP thread,etc.
Warranty: 10 years guarantee

large diameter hose 8 inch layflat hose with couplings

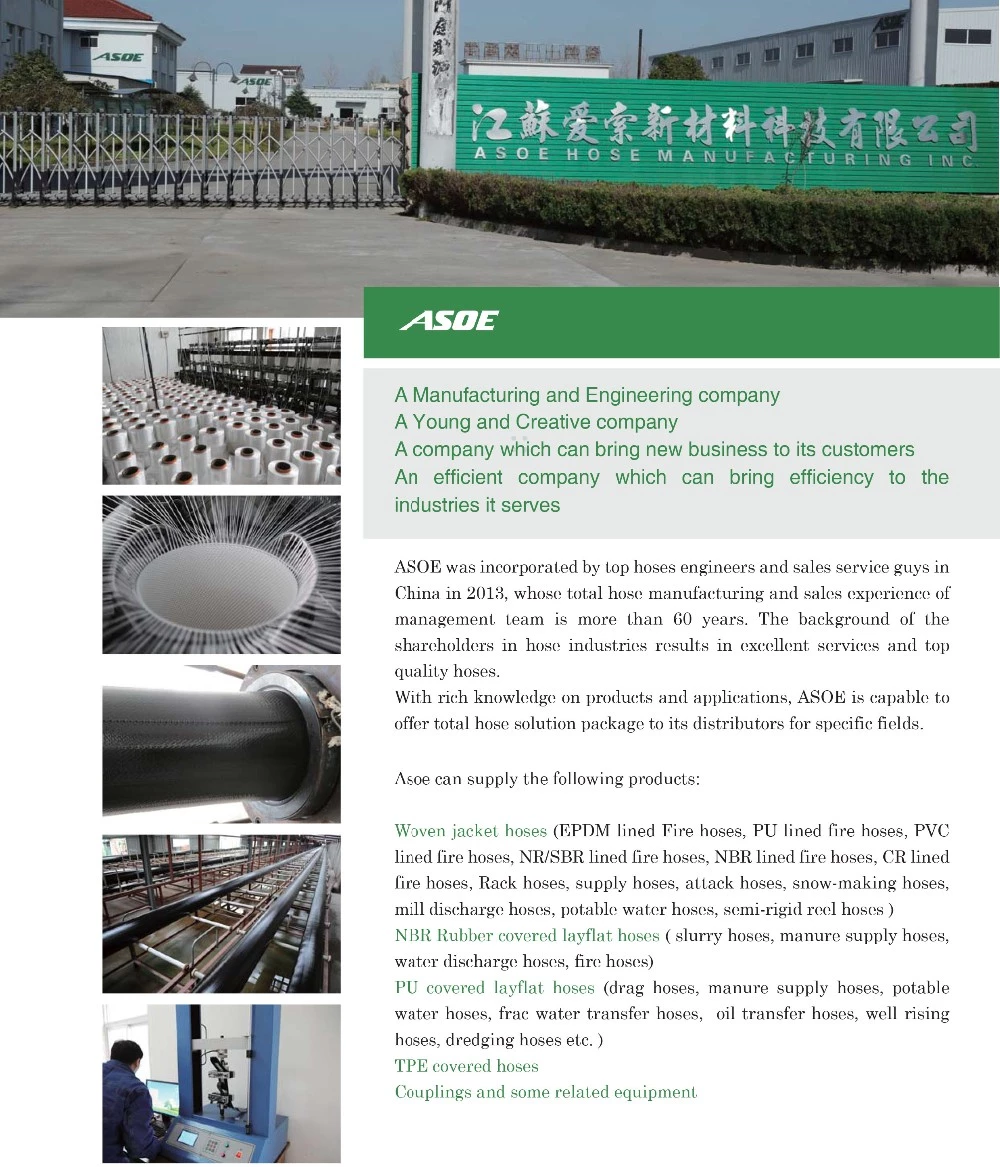

Our Company

large diameter hose 8 inch layflat hose with couplings

large diameter hose 8 inch layflat hose with couplings

Rene Qiu

Email: me@asoehose.com

Phone/Whatsapp:+86 13585874869

Website:www.asoehose.com

ASOE HOSE MANUFACTURING INC.

Business Type:Manufacturer

Online Supplier
