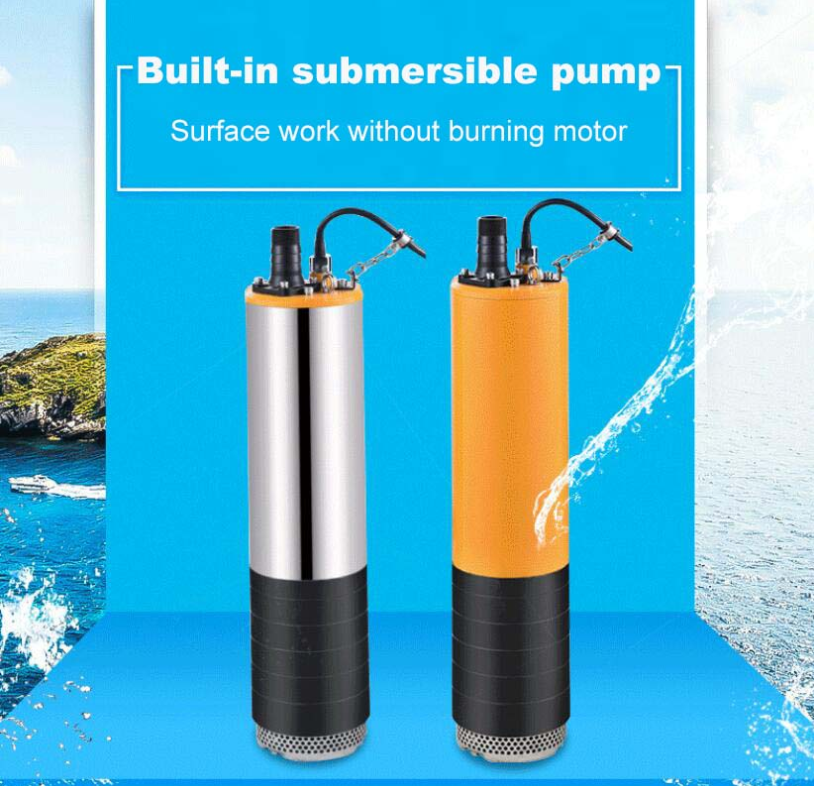

WQN Built-in Agitating Non-Clogging Farmland Irrigation Mine Used Submersible Sewage Pump

WQN Sewage pump

The cooling effect is obvious ,  the motor can dehydrate for a long time.



Feature:

The hydraulic parts is under the motor, the pumped water flows around the motor, thus cooling the motor,even when the pump is only partially immersed, it can also run safely.

Application:
1.This product is widely used in sewage pumping, high lift drainage, farmland irrigation.
2.Garden sprinkler irrigation, open mining, industrial and agricultural water supply and drainage systems, especially
suitable for using in the mine, for mining work, bottom hole, the local water, grain, coal mud, the site drainage of solid

particles

Specification:

Water temperature up to: 40C
PH:6.5-8.5
Power supply: Three phase 380V,50HZ,60HZ.
Power:2.2-22KW
Insulation Class: B
Protection Class: IP68
Capacity: up tp 90m3/h
Head: up to 148m
Maximum Immersion depth:20m
Cable length:15

Special feature on request:

Other Voltage
The length of cable optional

Feature

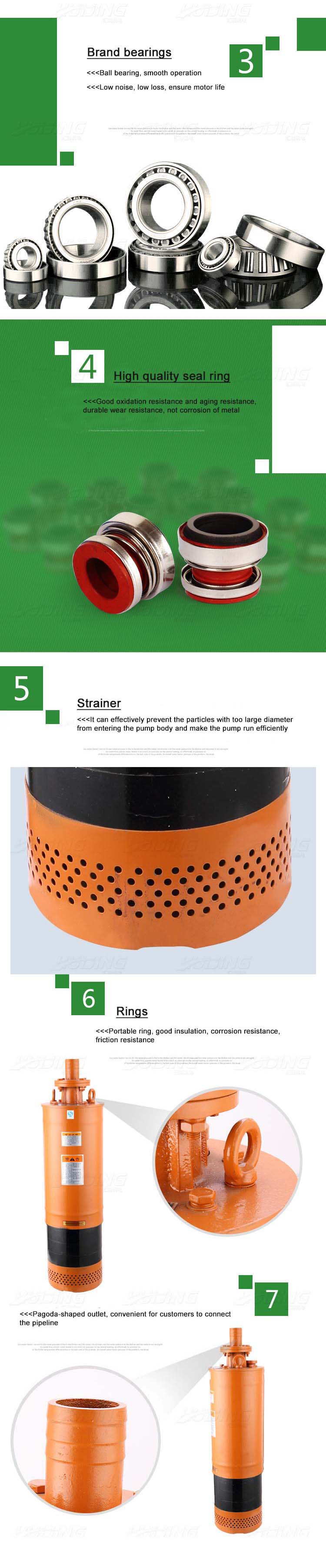

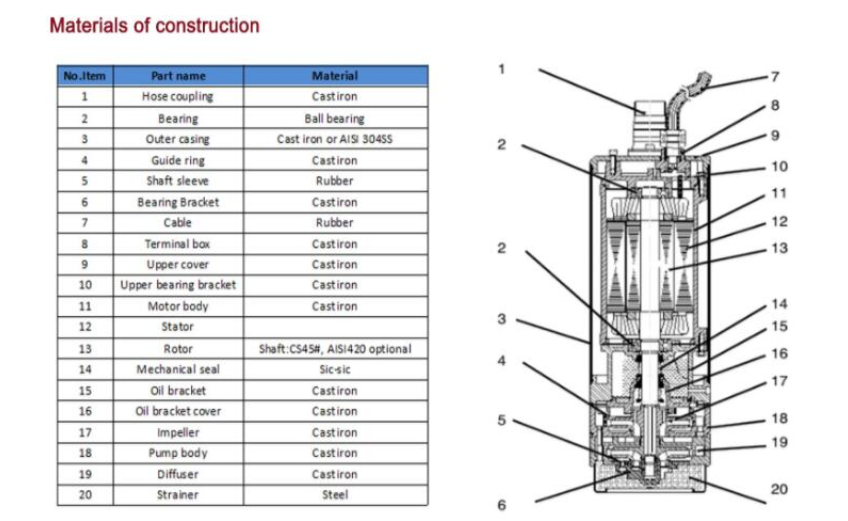

Structure

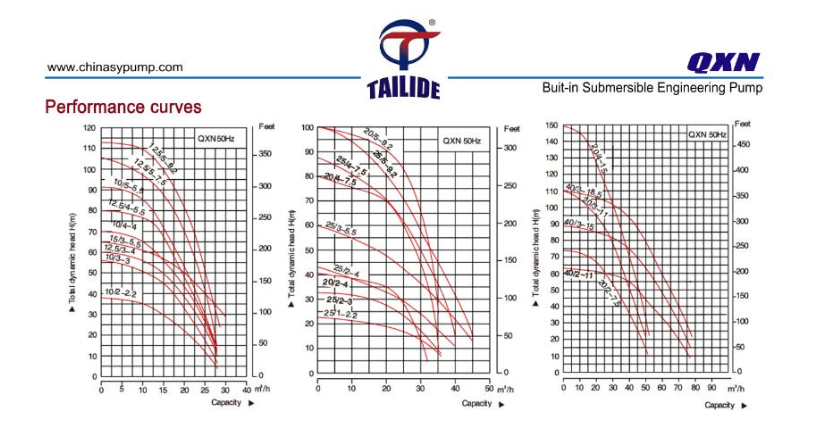

Curve

Certificate we have


For more details ,pls contact with us .
