TOPS STC series alternator

ID:20111942357

Category: Electrical & Power Energy Generators

FOB Price:US$ 185.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

three phase alternatordynamobrush alternatorstc alternatorstc generatorgeneratorac alternatorac generator

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney Gram

Product Category
Electrical & Power Energy > Generators
Trademark
tops
Product Package
wooden box
Specification
standard
Place of Origin
fujian. china
Port
Fuzhou
Product Description

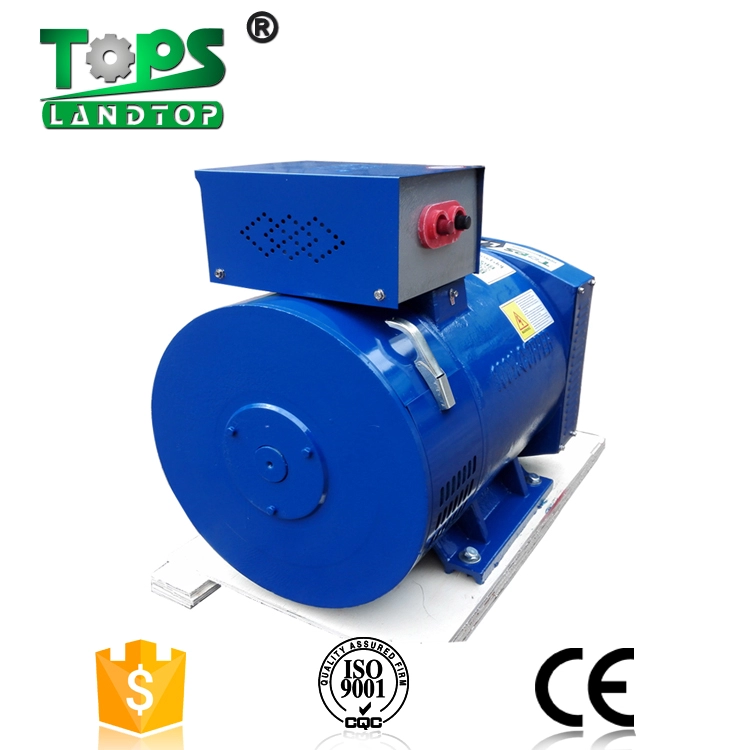

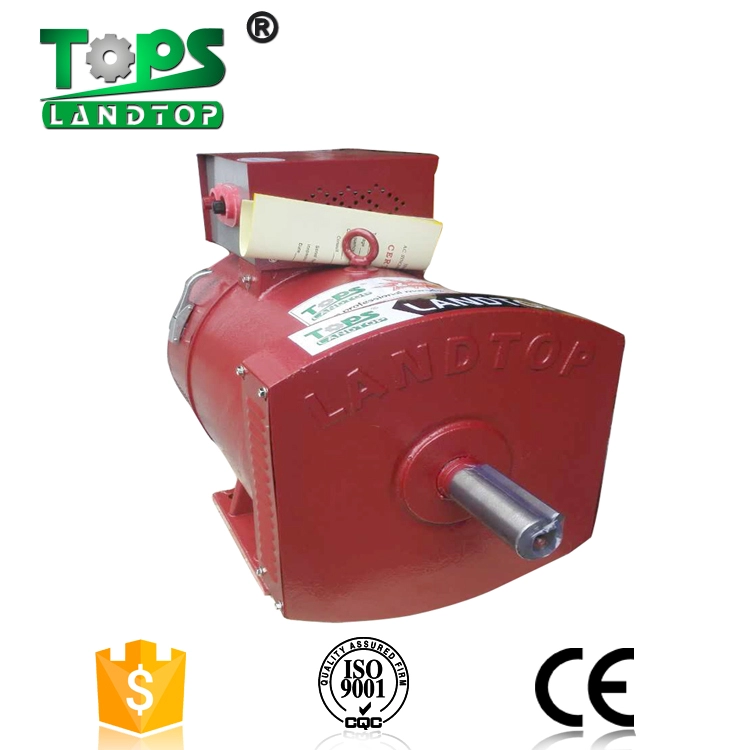

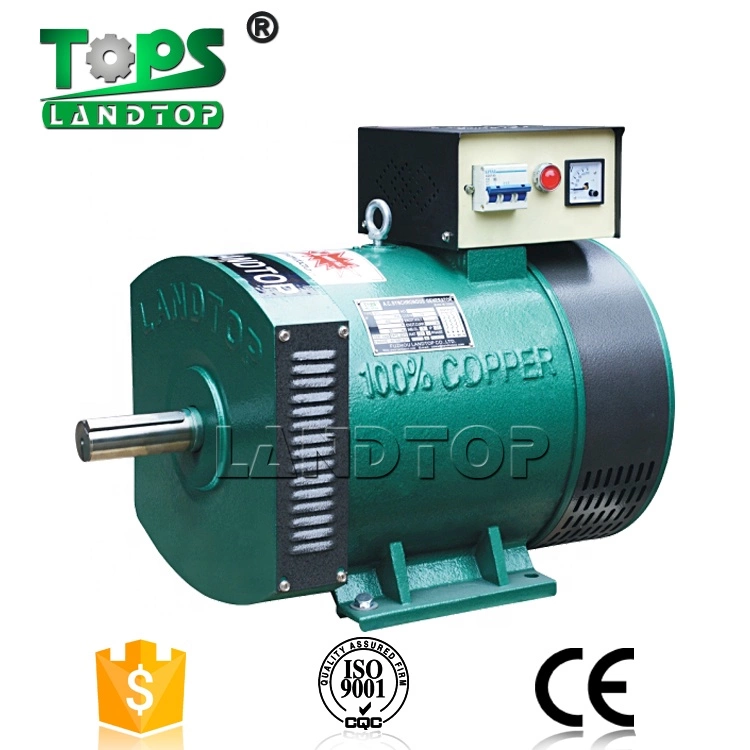

STC series Three Phase brush Alternator

   This series generators are to be used in town, countryside, work sites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case.The generators are of drip-poof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
     They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed.When the revolution slip of prime mover is 3% and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, without any starting device the generator can directly start an unloaded squirrel cage induction motor.

Alternator
STC  type
Phase
three
Rated power
2kw-75kw
Rated capacity
3kva-95kva
Rated Voltage
400/220V
Frequency
50/60HZ
Rated speed
1500/1800rpm
Rated current
depends on the power
Working duty
Continuous
Power factor
0.8
Technical Data & detail images
STC three phase alternator
Model
Rated Output
Current(A)
Rated voltage
Rated Speed
(r/min)
Frequency
(HZ)
G.W
(kg)
Size
KW
KVA
(V)
(cm)
STC-3
3
3.8
5.4








400/220








1500/1800








50/60
53
51*29*43
STC-5
5
6.3
9
80
61*34*50
STC-7.5
7.5
9.4
13.5
82
61*34*50
STC-10
10
12.5
18.1
103
65*39*54
STC-12
12
15
21.7
106
65*39*54
STC-15
15
18.8
27.1
146
70*42*58
STC-20
20
25
36.1
156
70*42*58
STC-24
24
30
43.3
165
70*42*58
STC-30
30
37.5
54.1
320
88*50*69
STC-40
40
50
72.2
365
88*50*69
STC-50
50
62.5
90.2
410
88*50*69
STC-64
64
80
117.5
450
88*50*69

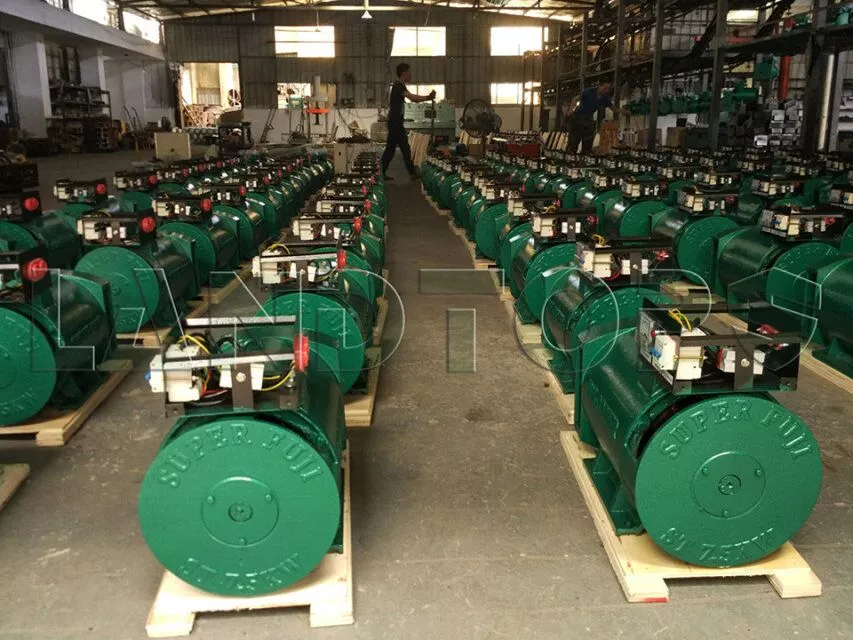

Product Line

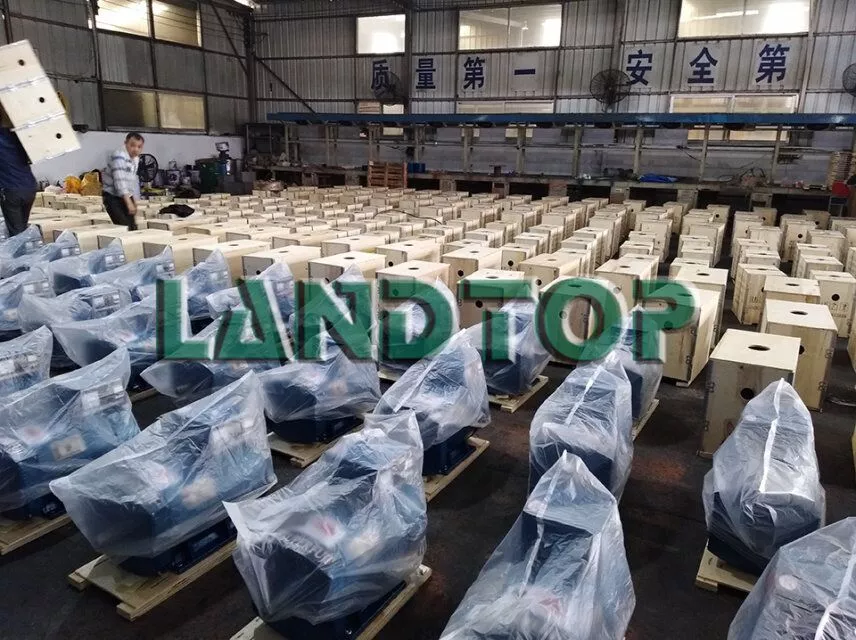

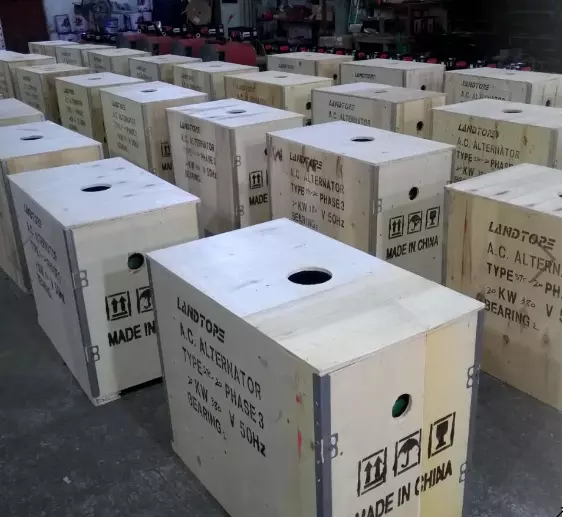

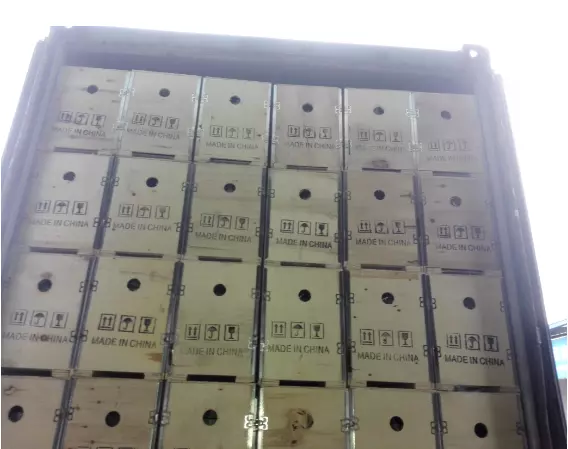

Packing&Shipping
About Us
00:06
02:00
FUZHOU LANDTOP CO.,LTD
FUZHOU LANDTOP CO.,LTD is specialized in manufacturing and exporting a wide range of electromechanical products,covering Alternators,Electric Motors,Diesel Generating Sets etc.With years of development,LANDTOP has become into a modern,large-scale and international company.Our sales department is located in fuzhou city.We also have our own factory in fuan city.Our group is continuously making arduous efforts on innovation to better serve our customers.We ensure our cooperation will bring a win-win benefit to both of us.

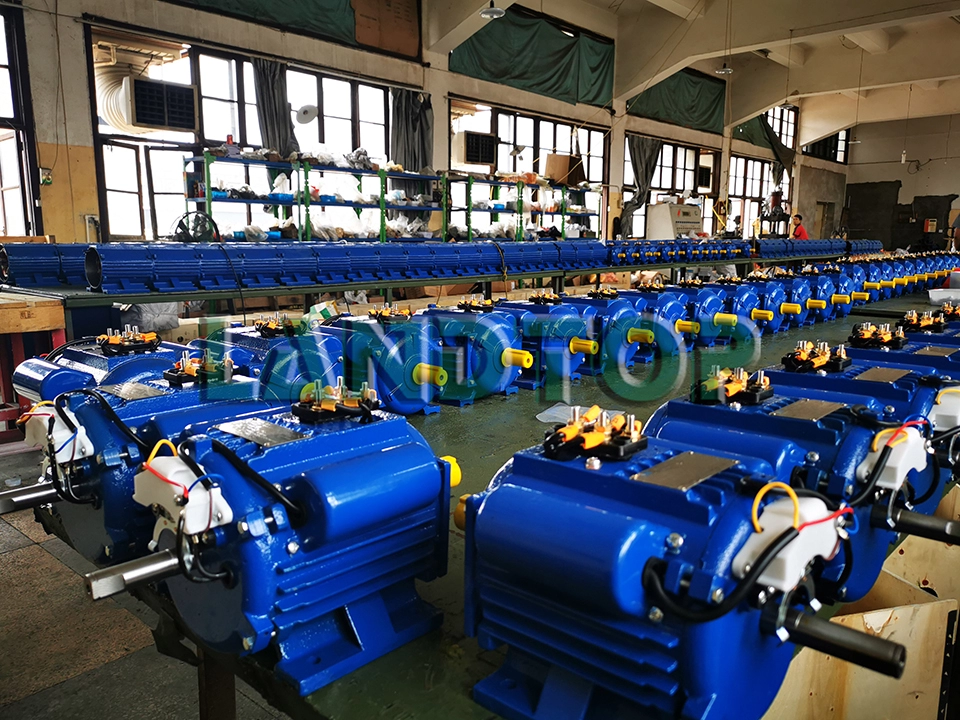

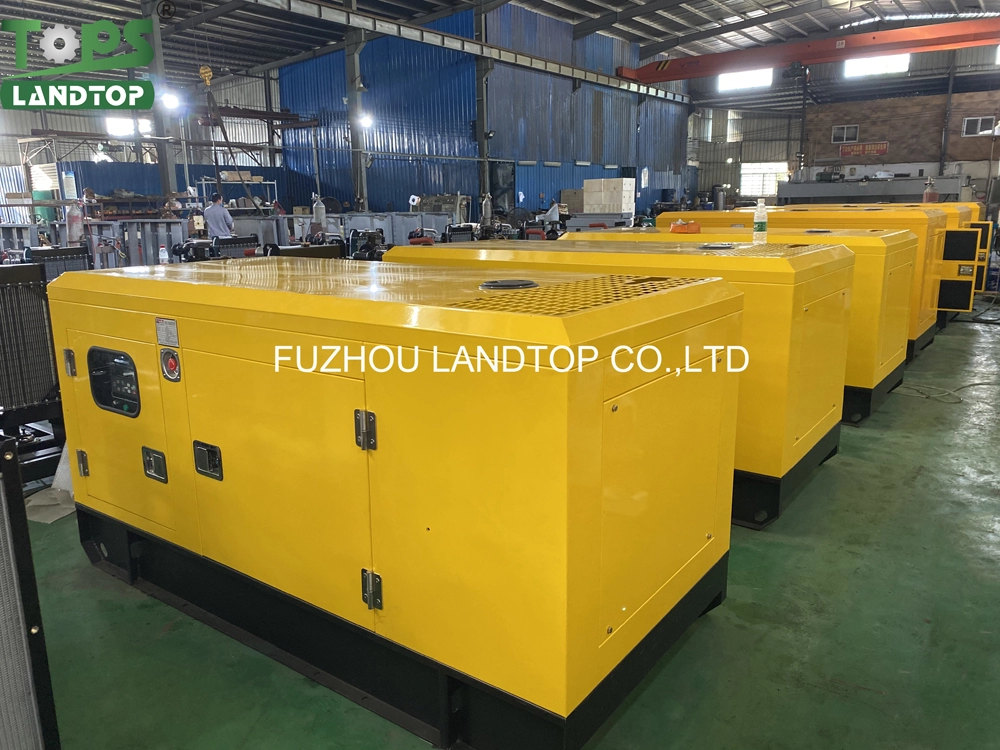

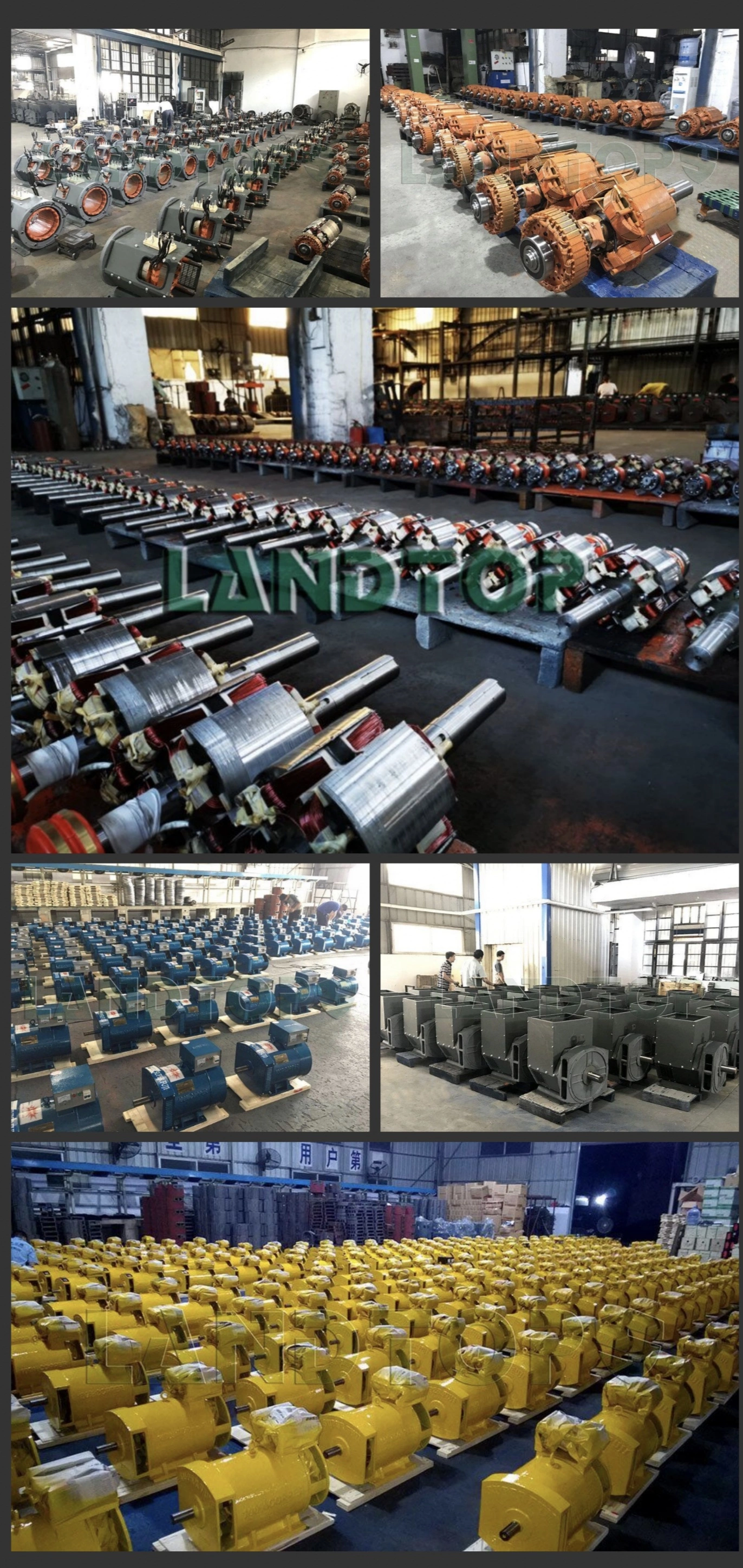

Our Factory
Advantages & Certifications
Our Exhibition
Our Services

FAQ:

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc

WHAT WE DO:

1.Stamping of lamination
2.Rotor die-casting
3.Winding and inserting – both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting – both wet paint and powder coating
8.assembly
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.
