Laser Welded Core DrillDiamond Core DrillWet Core DrillDiamond Core Drilling ToolsCore Drill Bit
L/CT/TD/PWestern Union

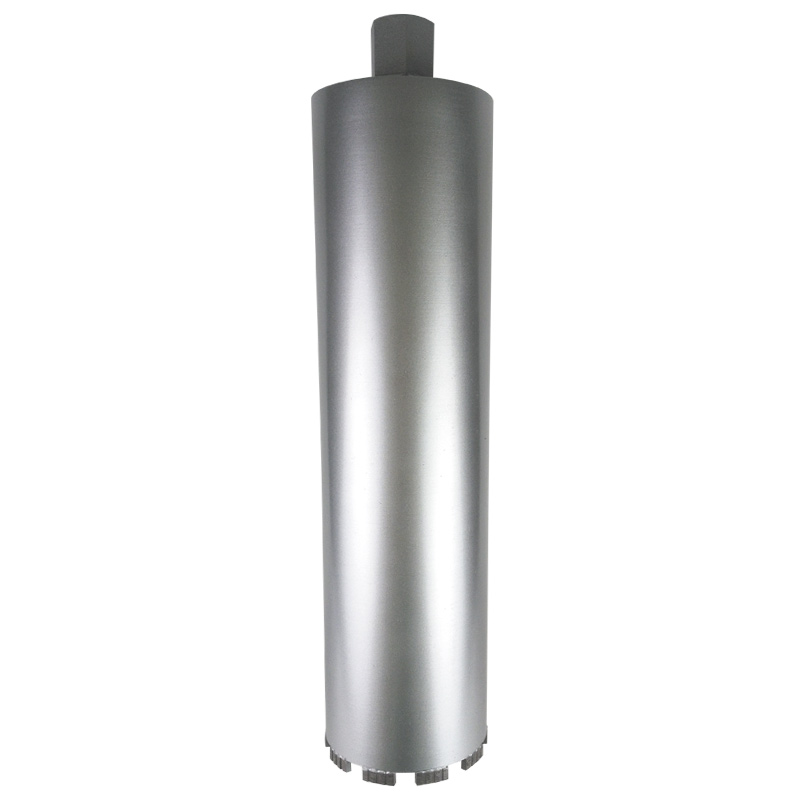

1. introduction
This type of core drill is laser welded, it can be widely used in drilling concrete, reinforced concrete, masonry with superior efficiency. The segment sharp is normal rectangular segments. It can be installed on Stand Core Driller, Hand-Held Drillers. The diameter is 350mm.
2. Specification
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDB02545010 | 25mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB03245010 | 32mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB03645010 | 36mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB04245010 | 42mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB05245010 | 52mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB06245010 | 62mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB06645010 | 66mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB07245010 | 72mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB07645010 | 76mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB08245010 | 82mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB09245010 | 92mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB10245010 | 102mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB11245010 | 112mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB12745010 | 127mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB13245010 | 132mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB15245010 | 152mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB16245010 | 162mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB17245010 | 172mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB18245010 | 182mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB20045010 | 200mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB25045010 | 250mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB30045010 | 300mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
| CWDB35045010 | 350mm | 10mm | 1 1/4"UNC / 1/2''BSP | 450mm |
3. Features
Manufacturer technology: laser welded
Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.

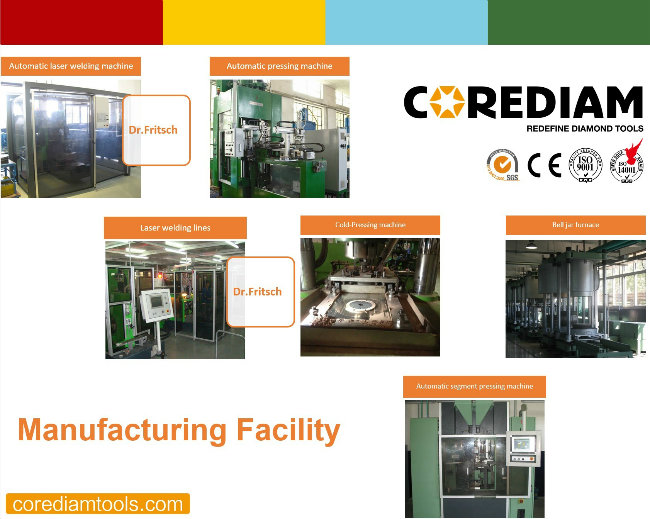

4.Corediam facility
5.Quality Control&Test
6.Delivery time&Packing
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
7.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
